Hangzhou Dadian CNC

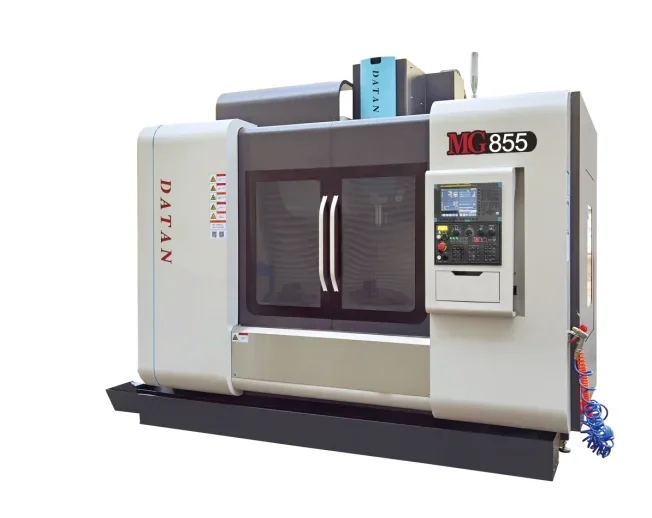

MG Powerful Machining Center
High-rigidity vertical machining center for heavy cutting
Specifications
- travel_x_mm
- 800
- travel_y_mm
- 550
- travel_z_mm
- 550
- table_size_mm
- 1000x550
- feed_rate_m_min
- 10
- power_demand_kva
- 10
- repeatability_mm
- 0.003
- spindle_speed_rpm
- 6000
- spindle_torque_nm
- 148
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- spindle_motor_power_kw
- 11
- table_load_capacity_kg
- 800
- positioning_accuracy_mm
- 0.005
- max_tool_diameter_full_mm
- 78
- rapid_traverse_rate_m_min
- 48
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
- air_pressure_requirement_kg_cm2
- 8
- spindle_center_to_column_distance_mm
- 550
