Hangzhou Dadian CNC

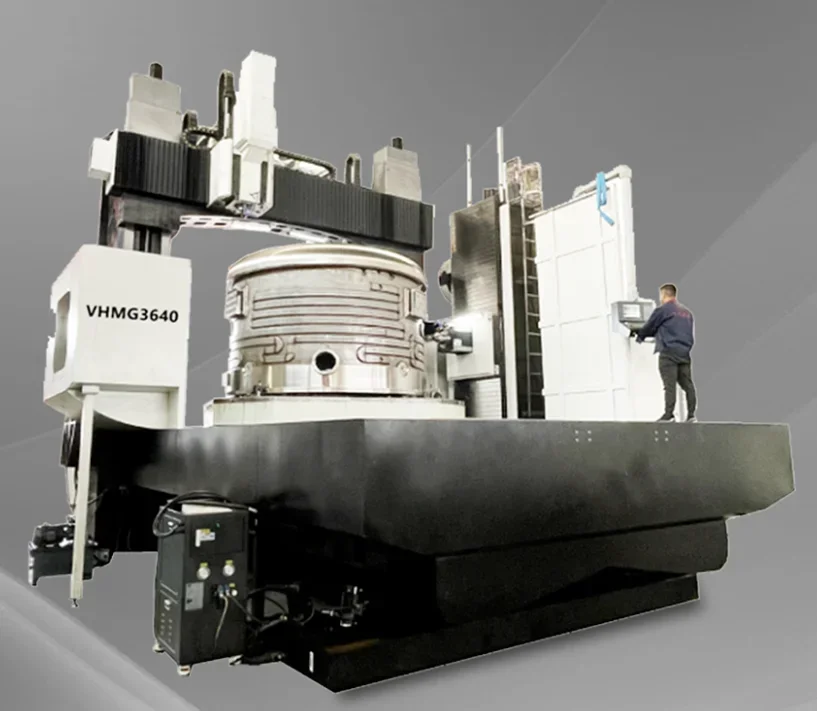

High-efficiency Composite Intelligent Machine Tool
Vertical-horizontal composite machining center completes multi-face processing in one setup
Specifications
- travel_x_mm
- 850
- travel_y_mm
- 850
- travel_z_mm
- 600
- table_size_mm
- 500x500
- spindle_speed_rpm
- 8000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- feed_rate_g01_mm_min
- 8000
- turntable_max_load_kg
- 500
- spindle_motor_power_kw
- 11
- max_tool_diameter_full_mm
- 78
- max_turntable_diameter_mm
- 1200
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
- rapid_traverse_rate_g00_m_min
- 24
