Hangzhou Dadian CNC

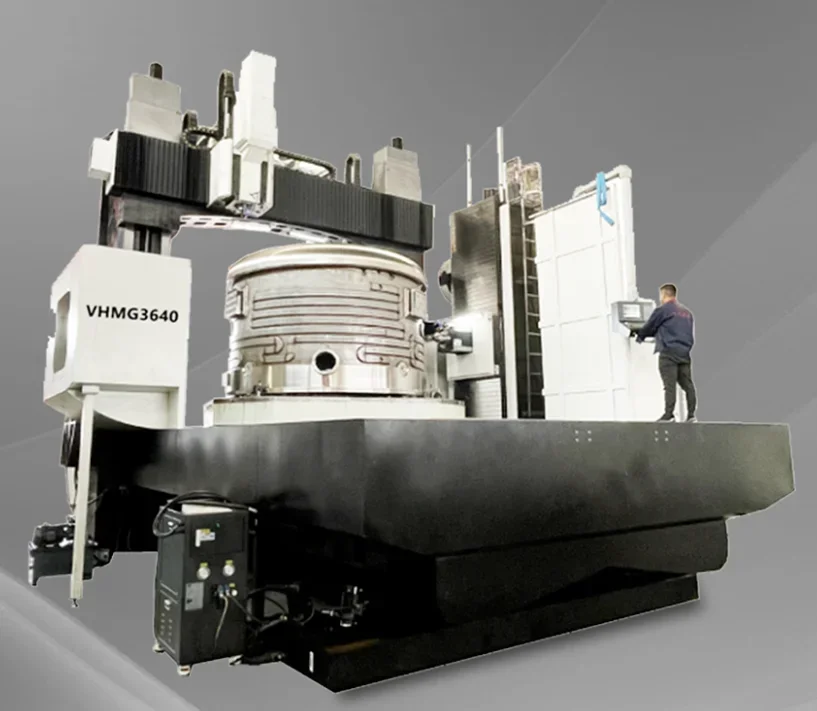

Five-sided Vertical and Horizontal Composite Machining Center
High-efficiency vertical-horizontal machining center completes multi-face processing in one setup
Specifications
- travel_x_mm
- 1100
- travel_y_mm
- 1000
- travel_z_mm
- 600
- table_size_mm
- 630x630
- feed_rate_mm_min
- 8000
- spindle_speed_rpm
- 8000
- table_max_load_kg
- 1500
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- spindle_motor_power_kw
- 11
- max_tool_diameter_full_mm
- 78
- rapid_traverse_rate_m_min
- 24
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_empty_mm
- 120
