Hangzhou Dadian CNC

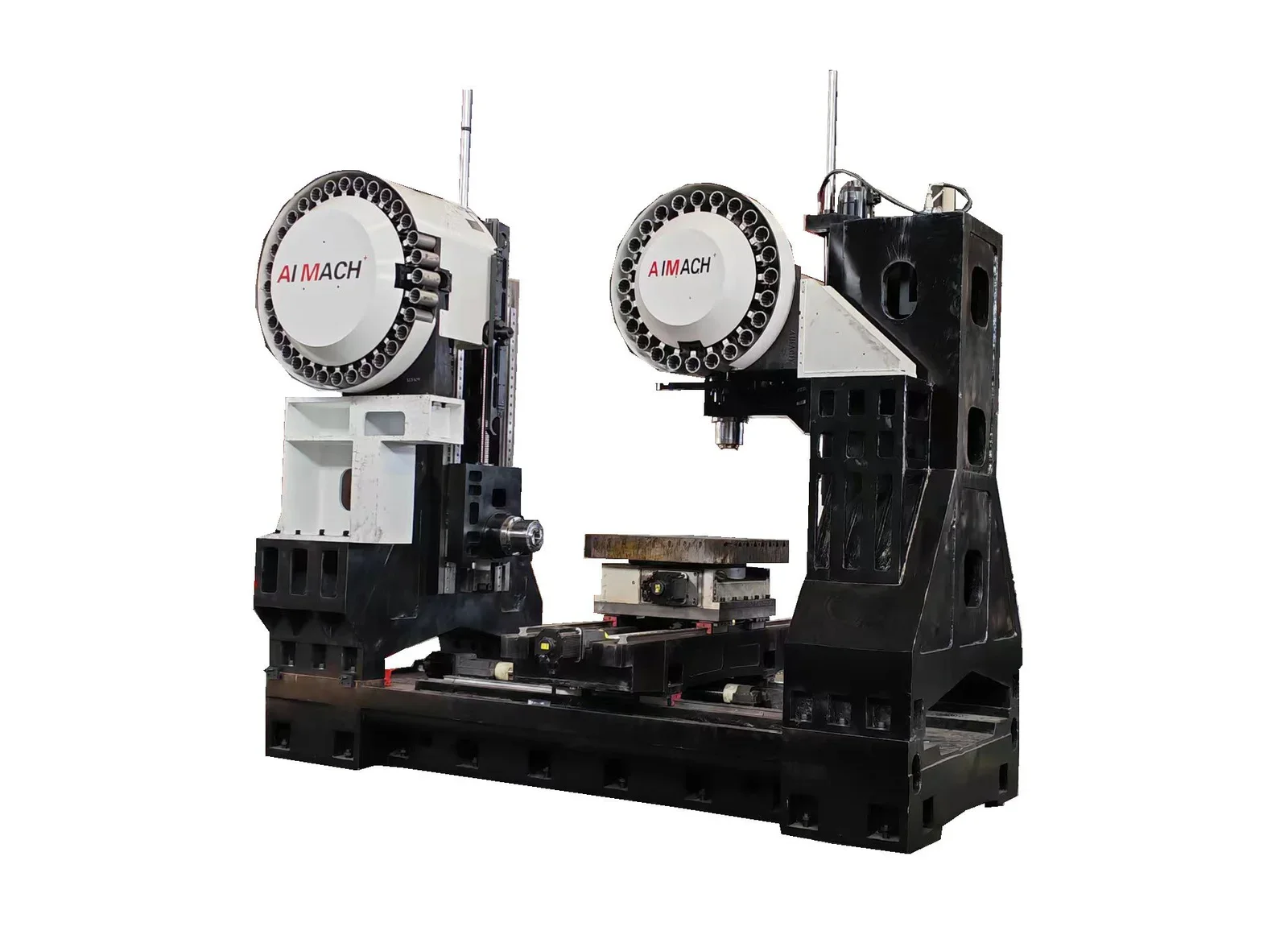

Five-side Vertical and Horizontal Composite Machining Center
High-efficiency vertical-horizontal machining center completes multi-face processing in one setup
Specifications
- travel_x_mm
- 1350
- travel_y_mm
- 1100
- travel_z_mm
- 800
- table_size_mm
- 800x800
- spindle_speed_rpm
- 6000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- feed_rate_g01_mm_min
- 8000
- spindle_motor_power_kw
- 22
- table_load_capacity_kg
- 2500
- positioning_accuracy_mm
- 0.008
- max_tool_diameter_full_mm
- 78
- repeatability_accuracy_mm
- 0.005
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
- rapid_traverse_rate_g00_m_min
- 24
