Hangzhou Dadian CNC

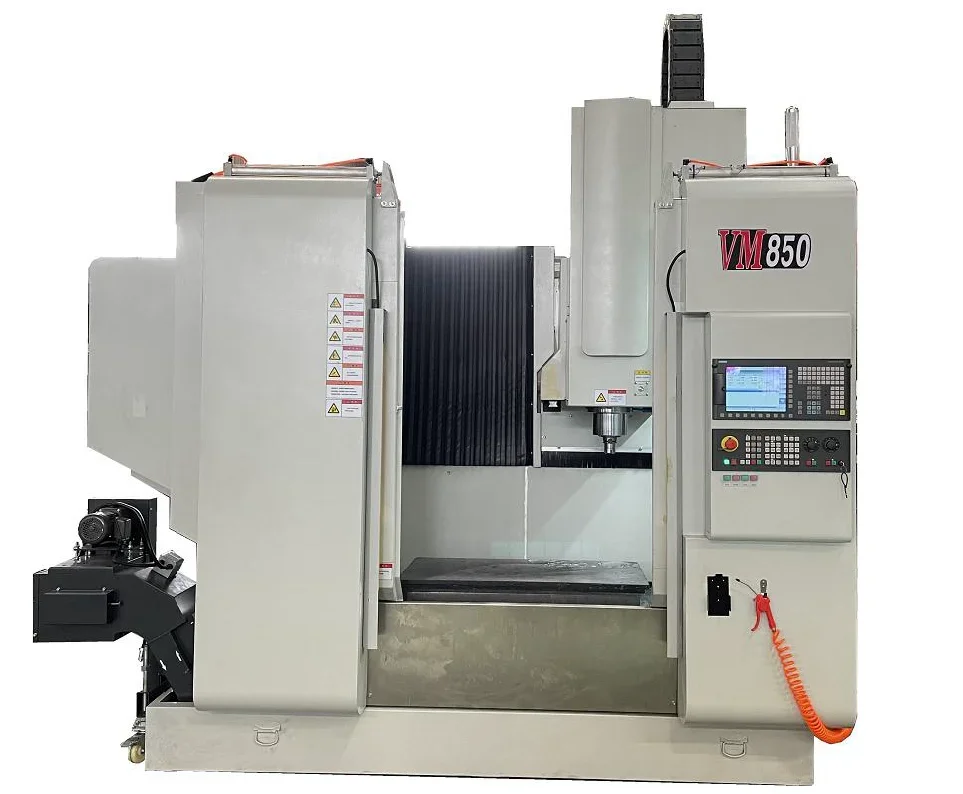

Movable Column Machining Center
Full movable column VMC, 3-axis travel 850×500×500mm, BT40 spindle, 10000rpm
Specifications
- travel_x_mm
- 850
- travel_y_mm
- 500
- travel_z_mm
- 500
- table_size_mm
- 1000x450
- feed_rate_m_min
- 10
- spindle_speed_rpm
- 10000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- spindle_motor_power_kw
- 11
- table_load_capacity_kg
- 1000
- max_tool_diameter_full_mm
- 78
- rapid_traverse_rate_m_min
- 36
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
