SHANGHAI YISHIDE BIOTECHNOLOGY CO., LTD

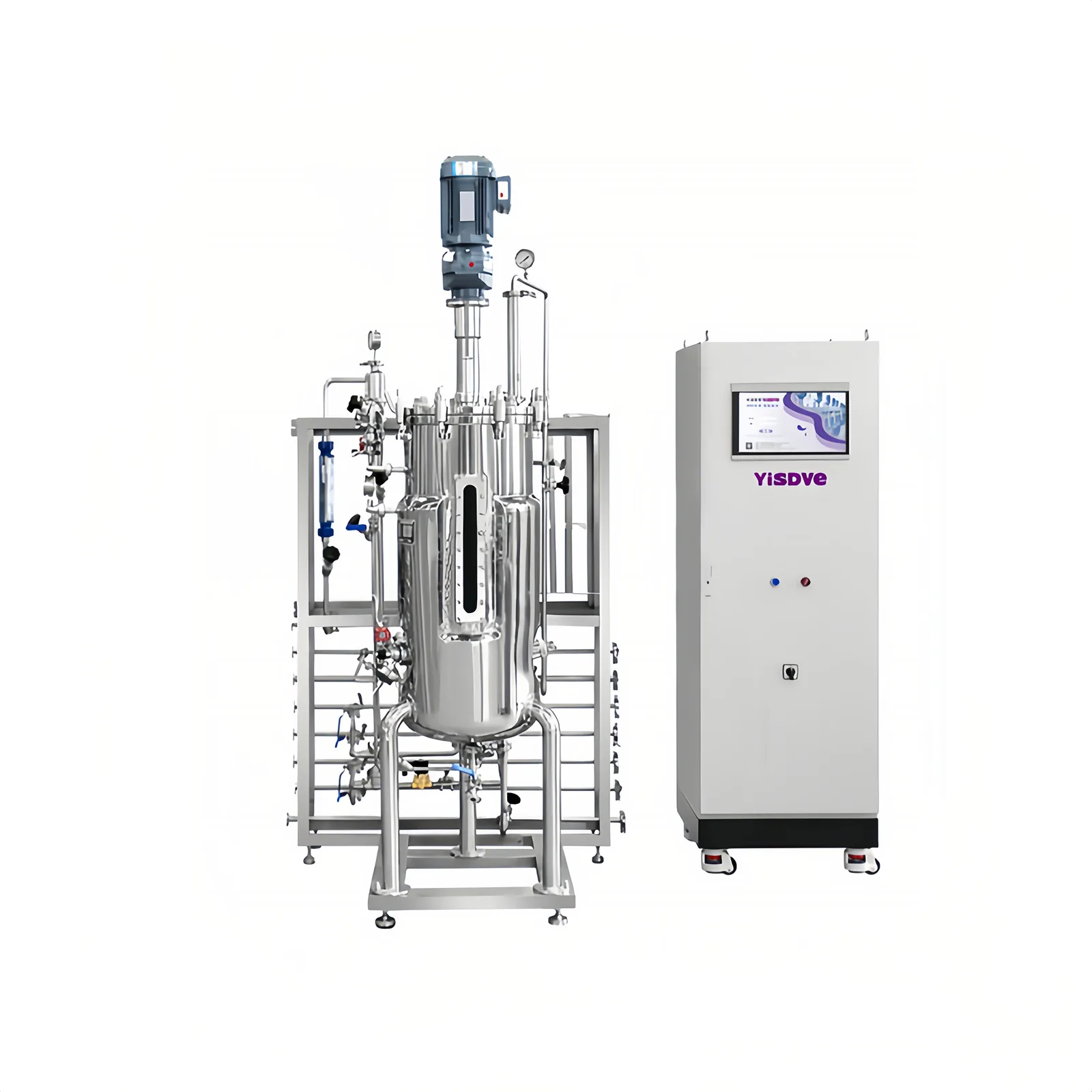

YSD-SE Stainless Steel Fermentation Tank
The YSD-SE series stainless steel fermentation tanks are designed to meet scale-up and production requirements. Tank capacities range from 10L to 50,000L. The system is equipped with automatic sterilization, tank pressure regulation, and lid lifting functions to reduce manual wor
Specifications
- DO Control
- Range 0–150%, accuracy ±0.1%
- PH Control
- Fully automatic, accuracy ±0.02
- Tank Material
- The parts in direct contact with materials are made of 3l6L stainless steel, while the remaining parts are made of 304 stainless steel
- Stirring Method
- Top mechanical agitation
- Stirring Paddle
- Six flat leaves /four oblique leaves /six oblique leaves / six arrow leaves/three oblique leaves, etc.
- Control Cabinets
- Carbon steel lacquered or 304 stainless steel brushed housing
- Material Control
- Manual replenishment, linear replenishment, intermittent replenishment,exponential replenishment, pH-related control, DO linkage control, duty cyclecontrol, sequential control, stepwise control, etc.
- Defoaming Control
- Sensitivity 100–100000, manual/intelligent control to add defoamer
- Speed of agitator
- Depending on the volume of the tank, the speed is different
- Cask Specifications
- 5L-50000L,maximum loading coefficient 70-75%
- Mode of Ventilation
- Deep sparger ventilation or surface ventilation
- Temperature Control
- Display range 0–150°C, accuracy ±0.1°C
- Ventilation Control
- Rotameter manual control or intelligent flowmeter automatic control
- Exhaust Condensation
- Adaptation
- Sterilization Method
- In-line steam sterilization
