Machine Features:
Box-Type Fully Enclosed Design:
Compact cabinet structure with good sound insulation, suitable for indoor and outdoor industrial installations.
Air-Cooled Cooling System:
Eliminates the need for cooling towers, enabling easy installation and reduced maintenance.
Hermetic Scroll Compressor:
Provides stable performance, high efficiency, and low noise operation for continuous industrial use.
Efficient Heat Exchange System:
Equipped with threaded copper tube evaporator and high-efficiency finned condenser for effective heat transfer.
Low Noise Operation:
Optimized fan and enclosure design help reduce operating noise during operation.
Multiple Evaporator Options:
Supports shell-and-tube, plate, or coil-in-tank evaporator configurations to meet different application needs.
Wide Refrigerant Compatibility:
Compatible with multiple common refrigerants to suit different market and regulatory requirements.
Industrial-Grade Construction:
Precision-processed cabinet with electrostatic powder coating ensures durability and long service life.
Products Specification:
| Item | Specification |
| Product Type | Air-Cooled Box-Type Water Chiller |
| Cooling Method | Air-Cooled |
| Application | Industrial Chilled Water Cooling |
| Compressor Type | Hermetic Scroll Compressor |
| Cooling Capacity | Approx. 3 Ton |
| Rated Power | 8.3 kW |
| Power Consumption | 2.95 kW |
| Rated Voltage | 3 Phase / 380 V / 50 Hz |
| Running Current | 5.7 A |
| Chilled Water Flow Rate | 1.5 m³/h |
| Refrigerant Options | R22 / R134a / R407C / R410A |
| Refrigerant Control | Thermostatic Expansion Valve |
| Evaporator Type | Shell & Tube / Plate / Coil-in-Tank |
| Condenser Type | Finned Copper Tube + Axial Fan |
| Working Temperature Range | 5 – 35 ℃ |
| Pipe Diameter | 1 inch |
| Dimensions (L×W×H) | 1020 × 540 × 1030 mm |
| Weight | Approx. 130 kg |
| Core Components | Compressor, Pump, Fan, Condenser, Evaporator |
| Warranty | 1 Year |
| Inspection & Test | Factory Inspection Report Provided |

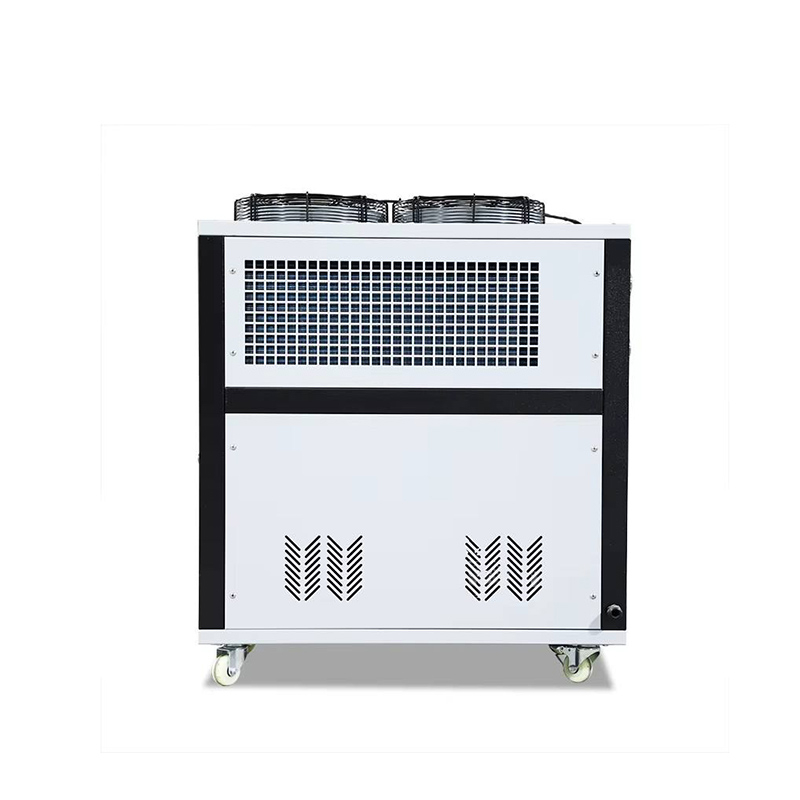

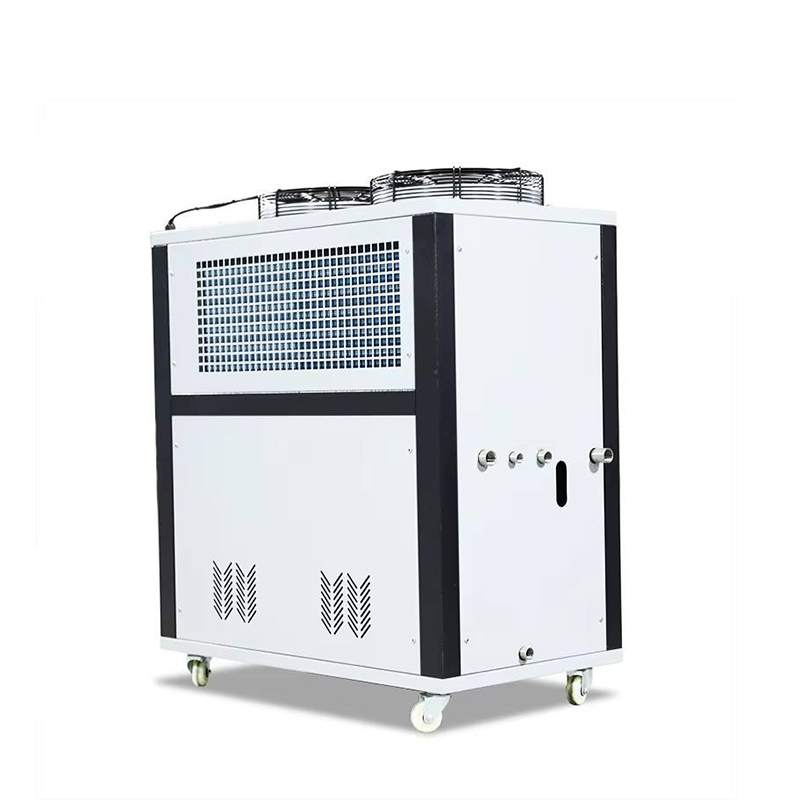

Products Pictures:
