Water-Cooled Screw Industrial Chiller for Injection Molding

This water-cooled screw industrial chiller is designed for large-capacity cooling applications requiring stable and precise temperature control. It is widely used in injection molding and other industrial processes where continuous chilled water supply is essential for maintaining production quality and efficiency. The chiller adopts a semi-closed screw compressor combined with a shell-and-tube evaporator to deliver high cooling capacity and reliable performance under heavy industrial loads. With accurate temperature control and comprehensive protection functions, the unit supports long-term continuous operation.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

Screw Compressor Design for Large Cooling Capacity:

Semi-closed screw compressor provides strong cooling output and stable operation for high-load industrial applications.

Water-Cooled Cooling Structure:

Efficient heat exchange through water cooling ensures consistent performance for large-capacity cooling demands.

Precise Temperature Control:

Designed to accurately control chilled water temperature within the industrial operating range.

Industrial-Grade Heat Exchange System:

Shell-and-tube evaporator enhances heat transfer efficiency and supports continuous operation.

Comprehensive Safety Protection:

Equipped with multiple protection functions including high/low pressure protection, motor overload protection, and phase loss protection.

Wide Operating Temperature Range:

Suitable for industrial chilled water temperature control from 0℃ to 35℃.

High Reliability for Continuous Operation:

Built for long service life with stable performance in demanding industrial environments.

Wide Industrial Application Compatibility:

Suitable for injection molding, extrusion, food processing, plastics, electronics, chemical processing, and other industrial cooling applications.

Products Specification:

Item	Specification
Product Type	Water-Cooled Screw Industrial Chiller
Cooling Method	Water-Cooled
Application	Injection Molding / Industrial Process Cooling

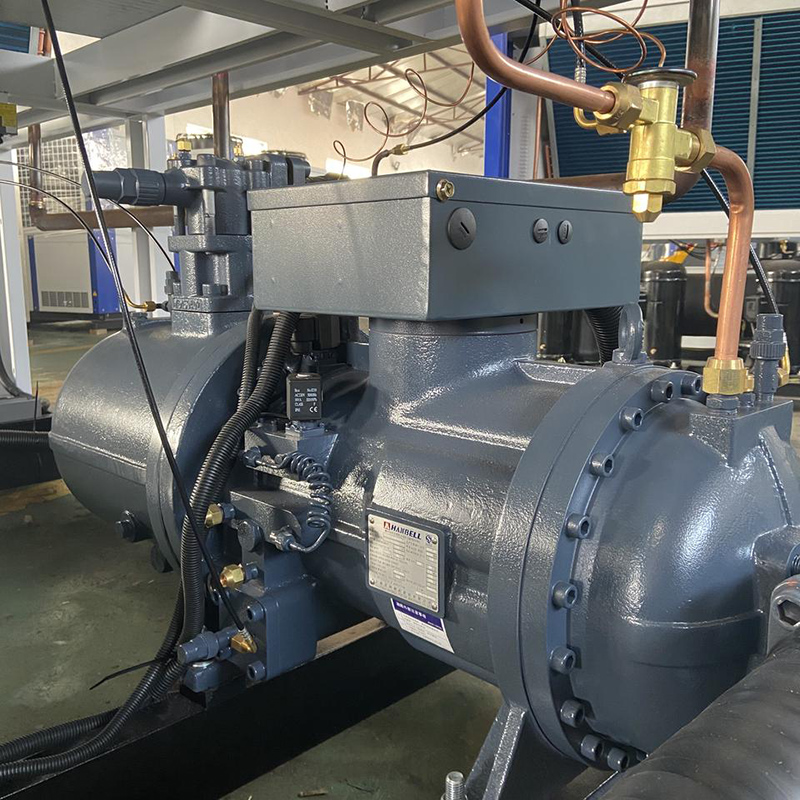

Compressor Type	Semi-Closed Screw Compressor
Cooling Capacity	Approx. 614 kW
Compressor Power	182 kW
Rated Power	Approx. 200 kW
Voltage	3 Phase / 380 V / 50 Hz (Customizable)
Refrigerant Options	R22 / R134A / R407C / R410A / R513A
Evaporator Type	Shell-and-Tube
Temperature Control Range	0 ℃ – 35 ℃
Control System	PLC Control
Core Components	Compressor, Motor, Pump, Pressure Vessel
Dimensions (L×W×H)	6680 × 2250 × 2460 mm
Weight	Approx. 6800 kg
Operation Mode	Automatic
After-Sales Support	Video Technical Support
Certification	CE
Warranty	1 Year
Inspection & Test	Factory Inspection Report Provided
