Machine Features:
Air-Cooled Independent Design:
No cooling tower or external water system required, reducing installation cost and space requirements.
Fast Installation and Flexible Placement:
Compact structure allows quick setup in workshops, production lines, or limited-space environments.
Automatic Temperature Control:
Supports stable cooling operation within a working temperature range of 5–30°C.
High-Efficiency Heat Exchange:
Air-cooled fin condenser combined with shell-and-tube heat exchanger improves heat dissipation performance.
Powerful and Stable Water Pump:
Equipped with a high-pressure water pump for stable circulation and durable long-term operation.
Efficient Filtration System:
Integrated filtration helps reduce impurities in the cooling circuit and prevents clogging.
Fast Heat Dissipation Fan System:
External rotor fans provide strong airflow and rapid heat dissipation with stable operation.
Safe and Reliable Operation:
Designed for automatic operation with built-in protection for continuous industrial use.
Products Specification:
| Item | Specification |
| Product Type | Air-Cooled Industrial Chiller |
| Application | Mold Cooling / Equipment Cooling |
| Cooling Method | Air-Cooled |
| Power Rating | 5–10 HP |
| Refrigeration Capacity | Approx. 14 kW |
| Power Consumption | Approx. 3.75 kW |
| Voltage | 380 V |
| Refrigerant | R22 |
| Compressor Type | Vortex Type |
| Refrigerant Control Mode | Capillary Tube |
| Working Temperature Range | 5 – 30 °C |
| Water Tank Volume | 60 L |
| Pump Type | Water Pump |
| Evaporator Connection | DN25 |
| Fan Configuration | Dual Fans |
| Fan Power | 0.21 kW × 2 |
| Ambient Temperature | ≤ 35 °C |
| Control Mode | Automatic |
| Dimensions (L×W×H) | 130 × 60 × 130 cm |
| Weight | Approx. 140 kg |
| Inspection | Factory Test Report Provided |
| Warranty | 1 Year |

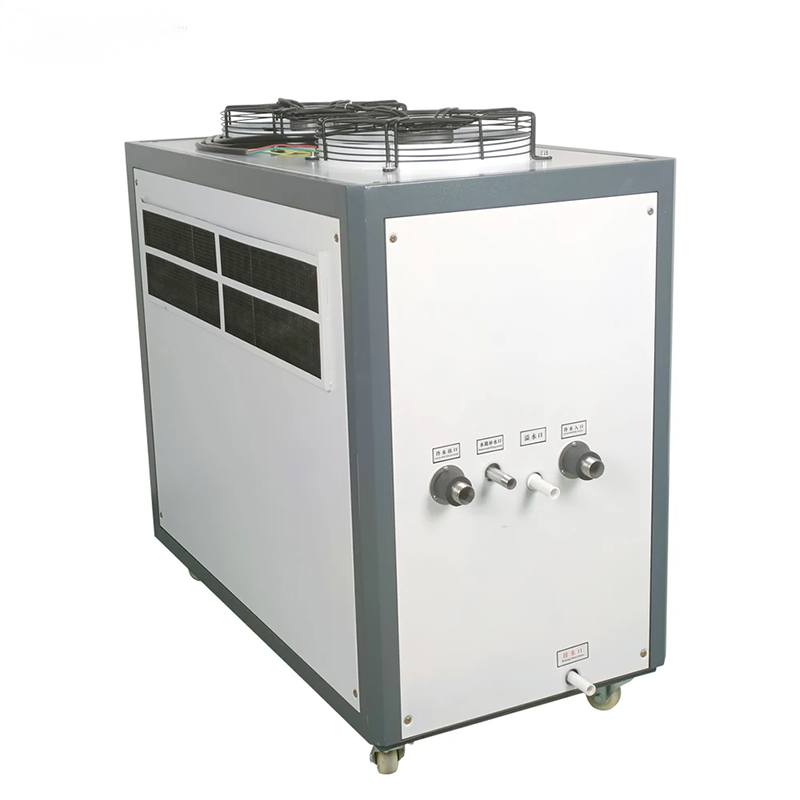

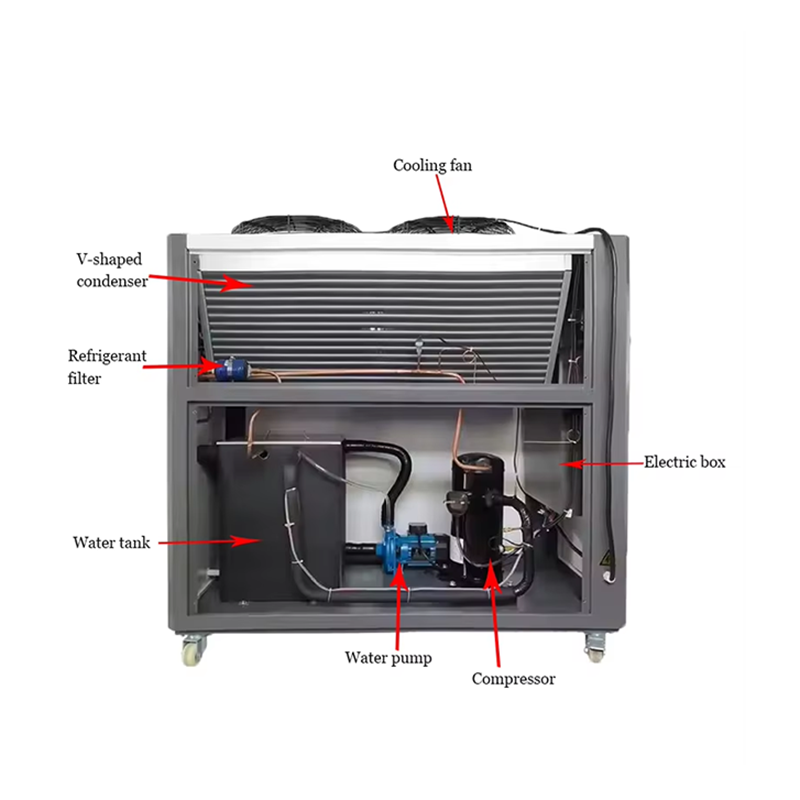

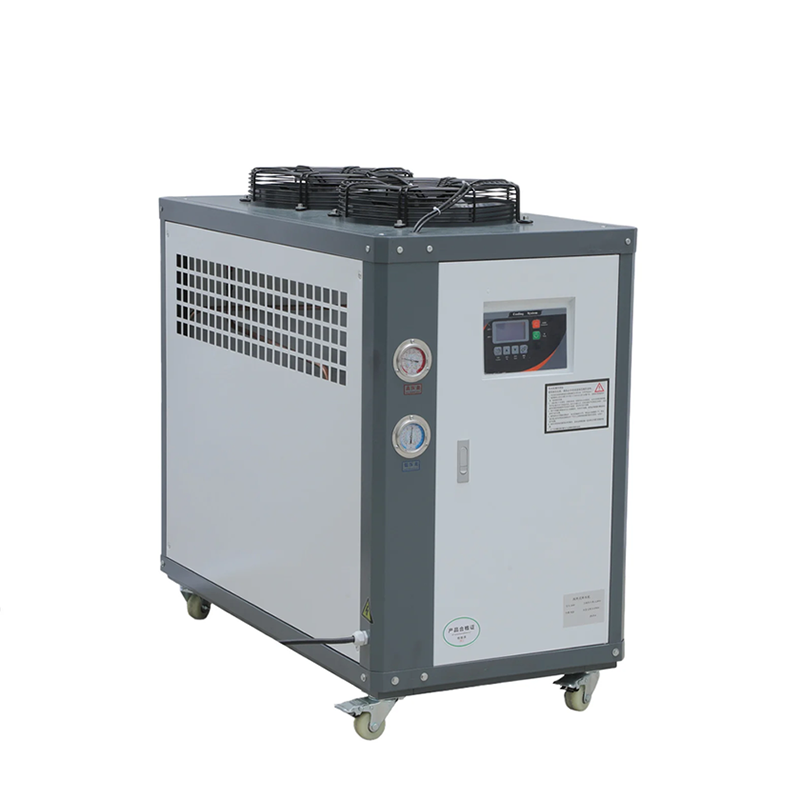

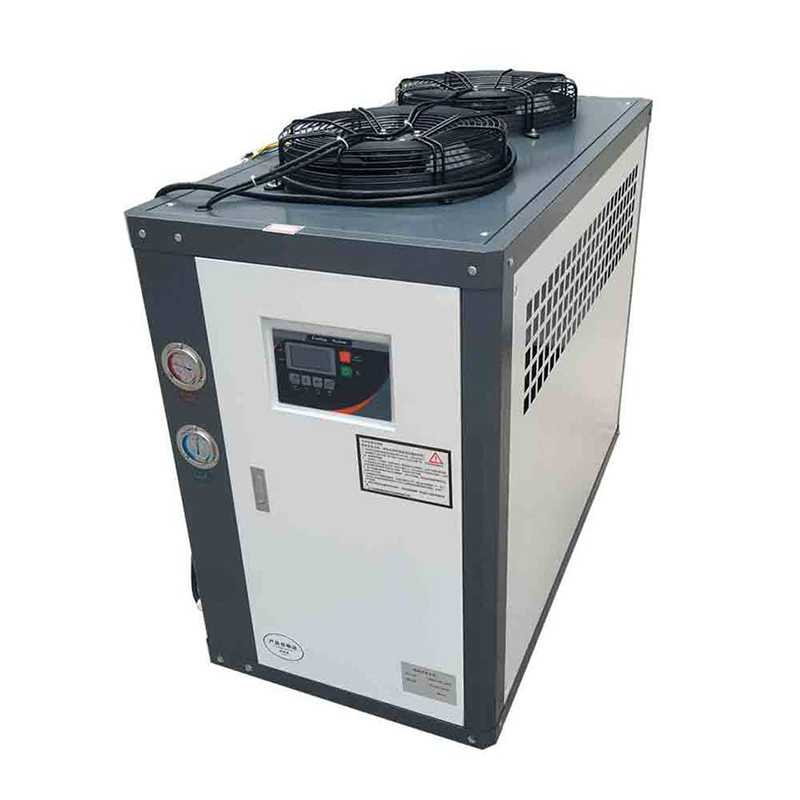

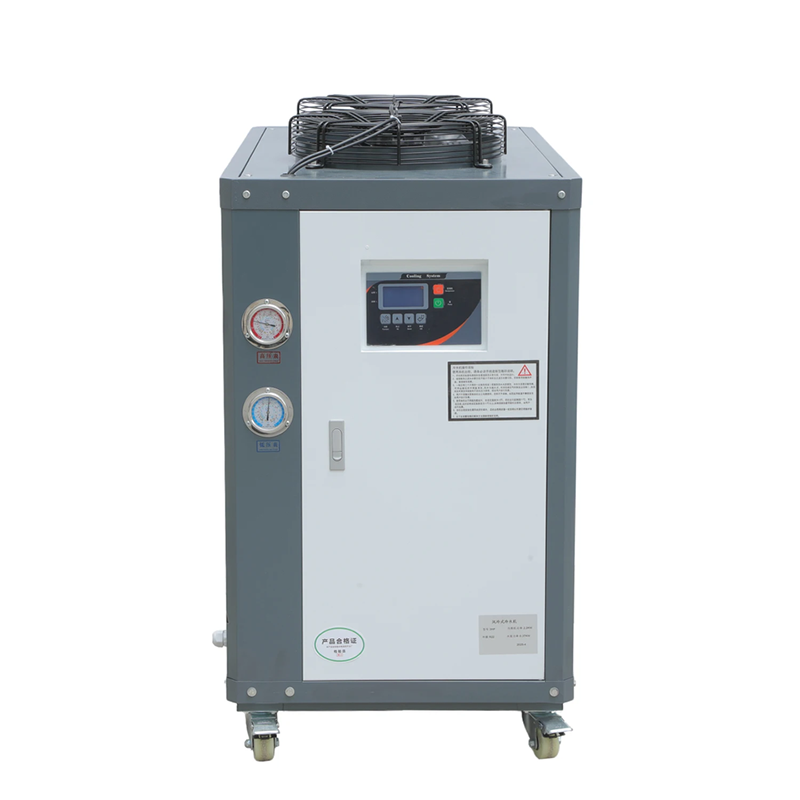

Products Pictures:
