Machine Features:
Explosion Proof Mixed Flow Design:
Combines axial airflow with mixed flow pressurization for efficient exhaust and air circulation.
Certified Explosion Protection:
Suitable for explosive gas and combustible dust environments with certified Ex protection level.
High Power Fire Exhaust Performance:
Equipped with 18.5KW motor for strong airflow and reliable fire smoke exhaust.
Advanced Aerodynamic Structure:
Three-dimensional flow design ensures high efficiency, low noise, low vibration, and reduced energy consumption.
Durable Aluminum Alloy Impeller:
High-strength impeller provides corrosion resistance and long-term stable operation.
Explosion-Proof Motor System:
Designed for continuous operation in hazardous locations with enhanced safety.
Wide Application Range:
Suitable for industrial plants, gas stations, refineries, spray booths, offshore platforms, and other hazardous areas.
Flexible Installation Options:
Supports wall-mounted, duct-mounted, portable, and fixed installation methods.
Wide Blade Diameter Range:
Available in blade diameters from 12 to 56 inches to meet different airflow requirements.
Products Specification:
| Item | Specification |
| Product Type | Explosion Proof Mixed Flow Exhaust Fan |
| Fan Type | Explosion-Proof Axial / Mixed Flow Fan |
| Power Source | Electric |
| Motor Power | 18.5 KW |
| Rated Voltage | AC 220V / AC 380V |
| Speed | Customizable |
| Bearing Type | Ball Bearing |
| Blade Material | Aluminum Alloy |
| Housing Material | Aluminum Alloy / Steel (Optional) |
| Blade Diameter | 12 – 56 Inches |
| Function | Air Circulation / Exhaust Ventilation |
| Installation Methods | Wall-mounted / Duct-mounted / Portable / Fixed |
| Applicable Zones | Zone 1, Zone 2, Zone 21, Zone 22 |
| Temperature Class | T1 – T4 |
| Explosion Proof Mark | Ex db IIC T4 Gb / Ex tb IIIC T135℃ Db |
| Corrosion Protection Level | WF1 / WF2 |
| Cable Outer Diameter | 10 – 14 mm |
| Application Environment | Indoor & Outdoor |
| Customization Support | OEM / ODM / OBM |
| Warranty | 3 Years |
| After-sales Service | Field Maintenance & Repair Service |

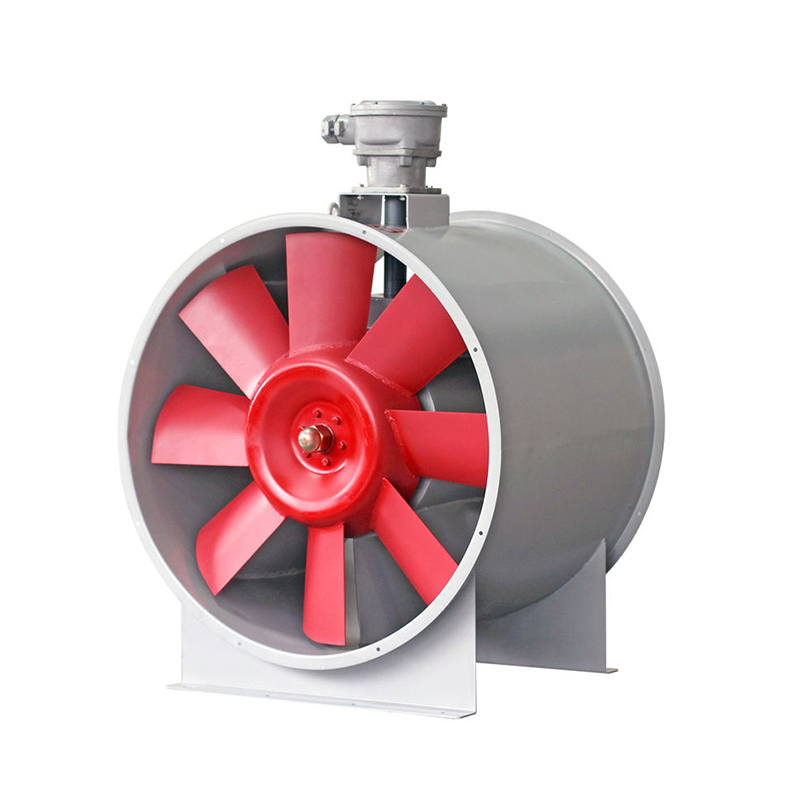

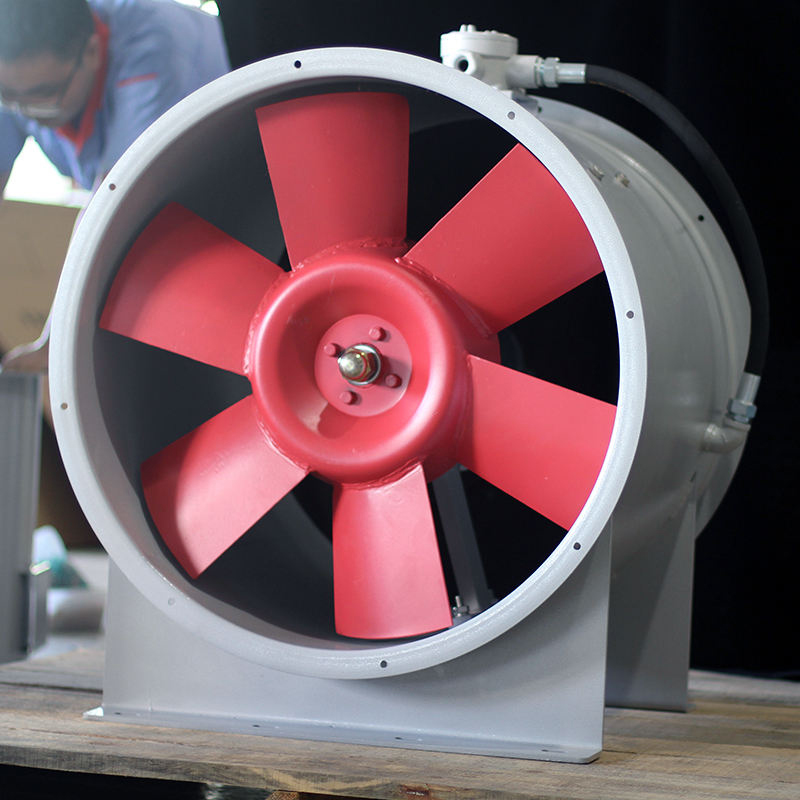

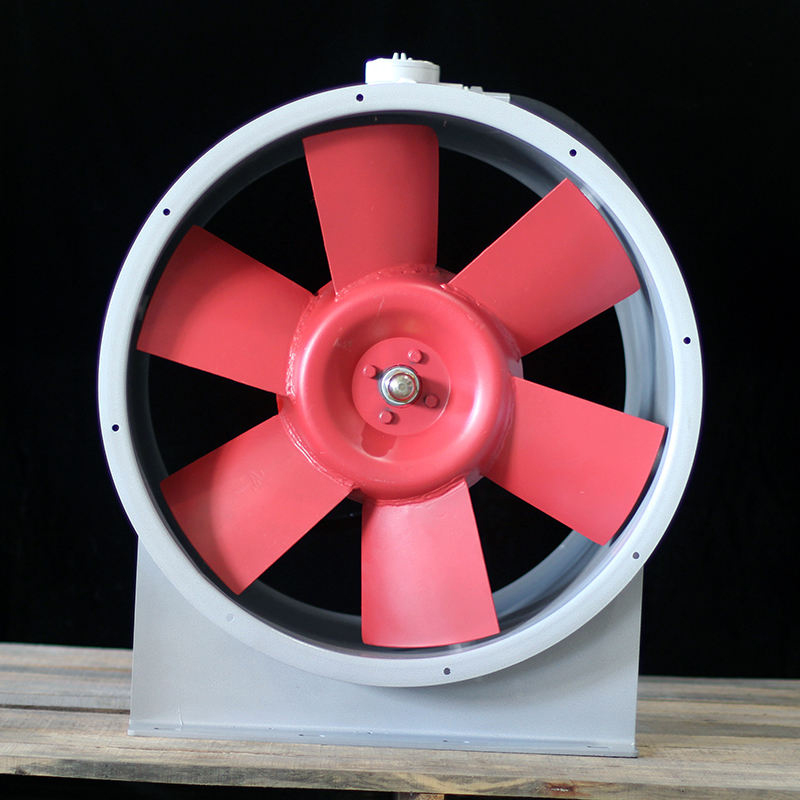

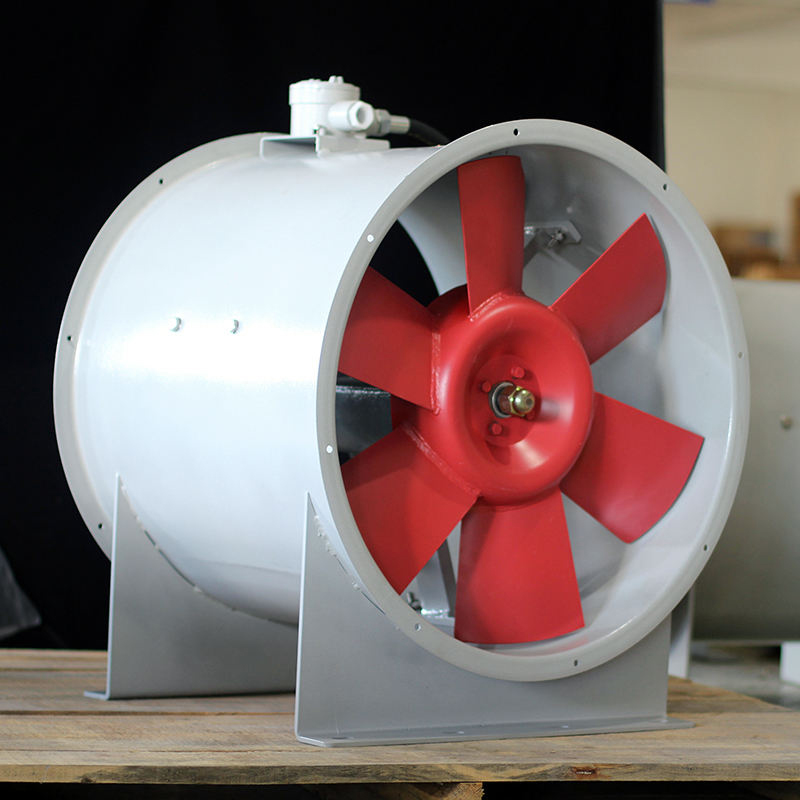

Products Pictures:
