Machine Features:

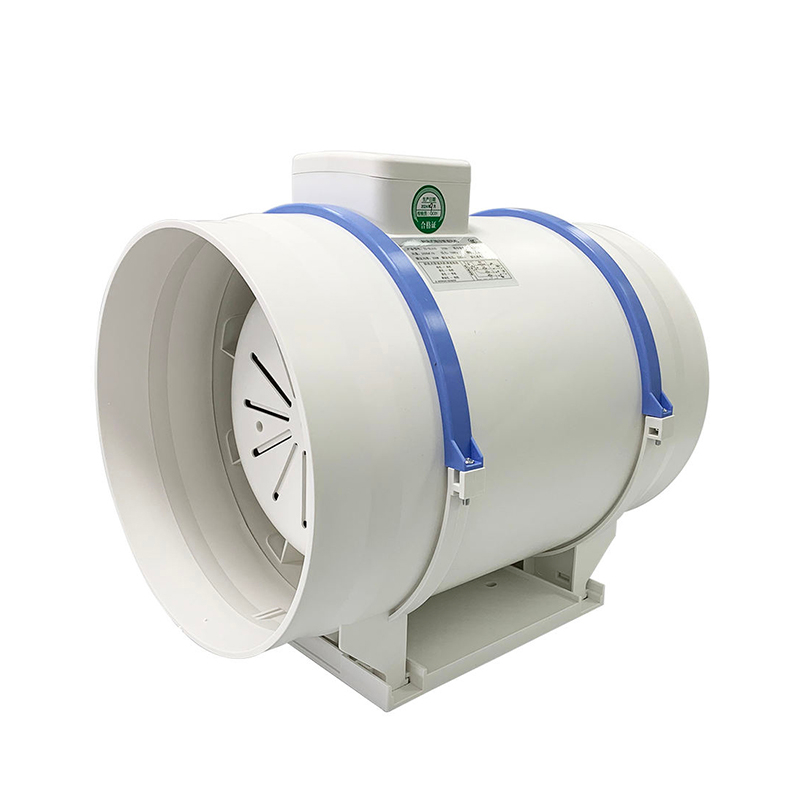

Mixed Flow Inline Duct Fan Design:
Combines axial airflow and diagonal pressurization for efficient ventilation.
Large Air Volume Output:
Optimized blade structure provides strong airflow and faster exhaust performance.
Energy Efficient Operation:
Streamlined fan blade design improves air efficiency while reducing power consumption.

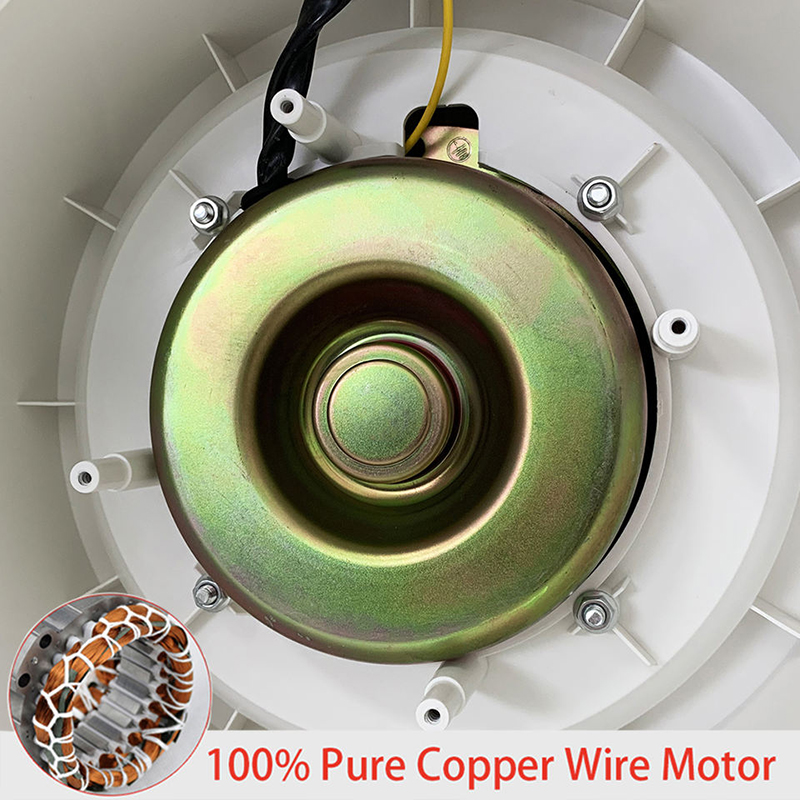

Copper Motor with Ball Bearing:
Ensures stable performance, smooth rotation, and extended service life.
Wide Size Options:
Available in 4 / 6 / 8 / 10 / 12 inch sizes to meet different duct requirements.
Stable AC Power Supply:
Supports AC 110V / 220V input for flexible electrical compatibility.
Durable Plastic Housing & Blades:
Lightweight, corrosion-resistant material suitable for long-term use.

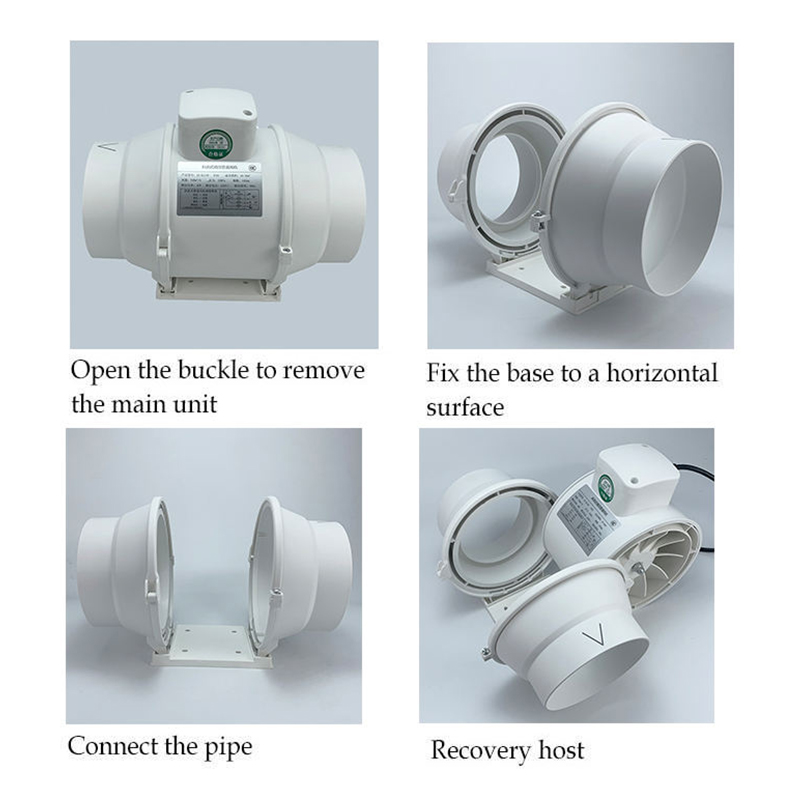

Horizontal Duct Installation:
Designed for easy integration into duct systems.
Effective Odor & Humidity Removal:
One fan solution for removing unpleasant smells and excess humidity.
Wide Application Range:
Suitable for industrial ventilation, greenhouse exhaust, and air circulation systems.
Products Specification:
| Model | Size | Power | Air flow | Pressure | Noise | Hole(φ） | N.W | Area |
| Unit | （inch） | (W) | (m³/h) | （Pa） | (dB) | (mm) | (kgs) | （㎡） |
| ZS-XL100 | 4 | 30/26 | 200/170 | 183/130 | 30/25 | 100/125 | 2.2 | 45885 |
| ZS-XL150 | 6 | 48/40 | 540/384 | 330/280 | 40/35 | 150/160 | 2.2 | 18-36 |
| ZS-XL200 | 8 | 76/60 | 980/820 | 350/280 | 50/45 | 200 | 2.7 | 34-76 |
| ZS-XL250 | 10 | 215/170 | 1800/1500 | 550/400 | 60/55 | 250 | 8 | 55-130 |
| ZS-XL315 | 12 | 350/260 | 2450/1950 | 700/500 | 66/61 | 315 | 10 | 90-200 |

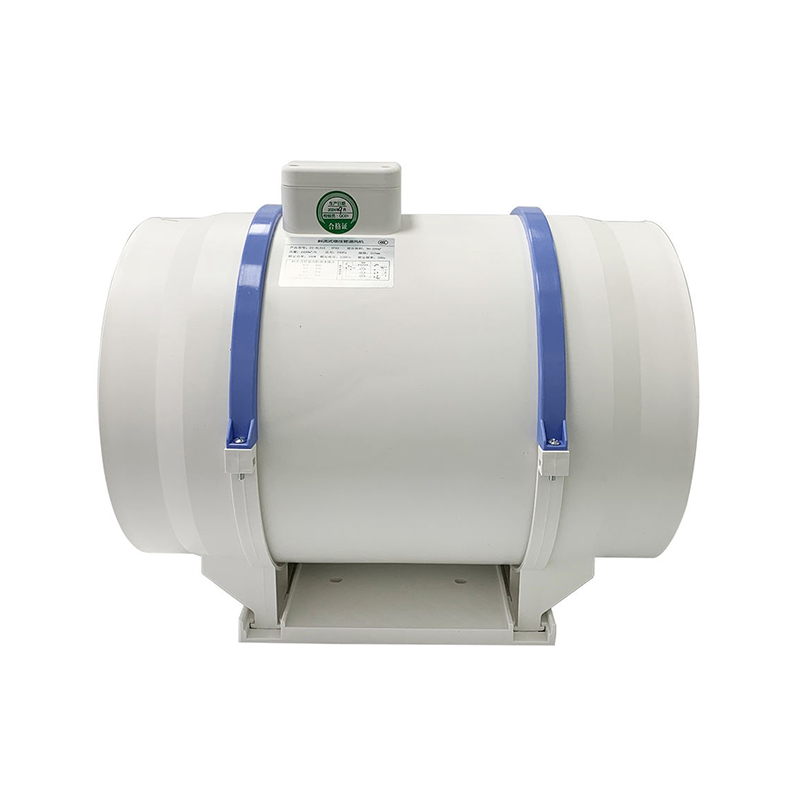

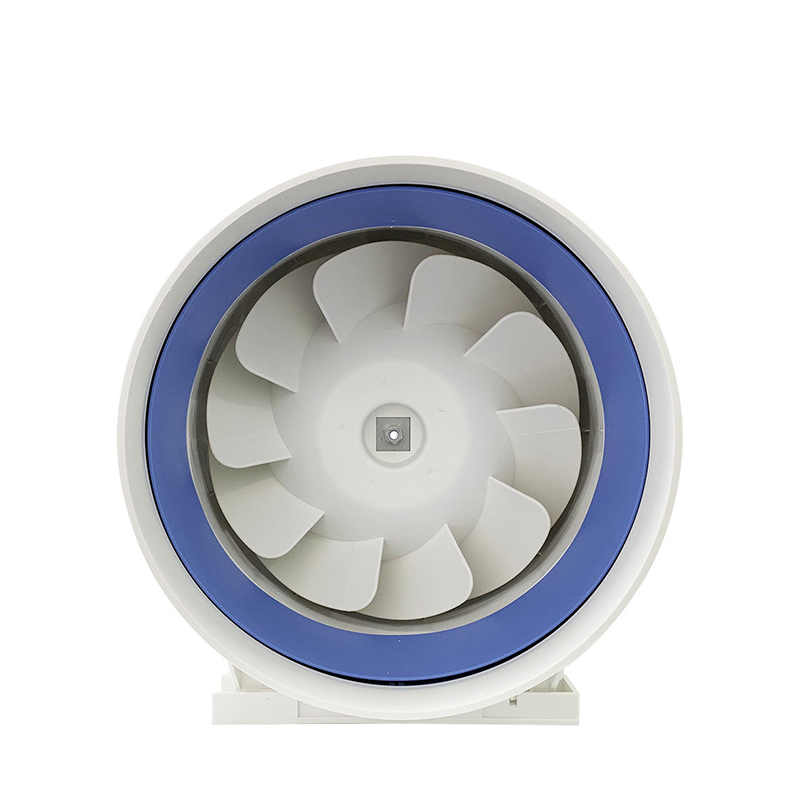

Products Pictures:
