Product structure and character

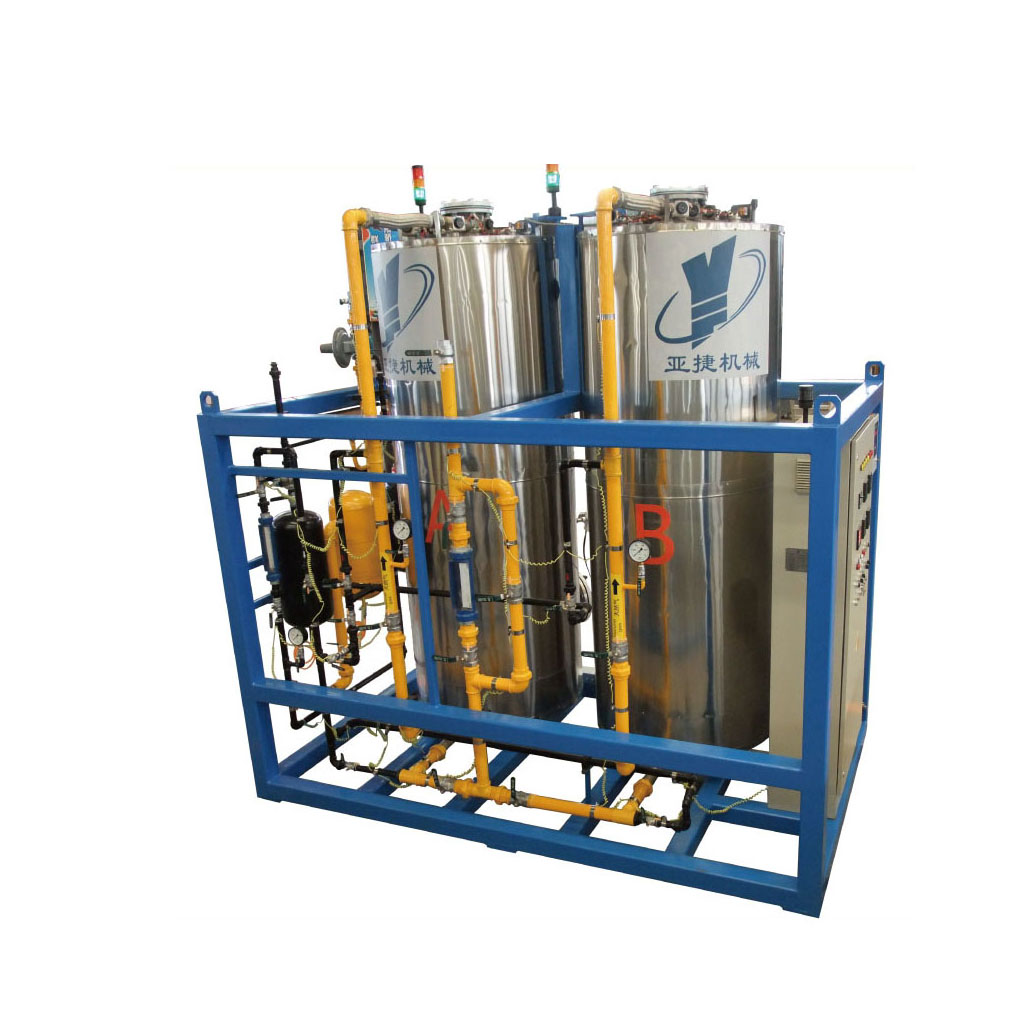

The equipment is of a double-tank design, with one operating and the other standby for steady gas supply.
Use is made of multi-component purifying agent.Due to effective removal of organic and inorganic sulphur, the total sulphur content of the natural gas supplied is controlled below 5mg/m3.
The purifying agent can be reused with a service life of over 10 years.
The equipment can operate under normal temperature. As no heating operation is required for maintaining its normal operation, the power rate can be appreciably curtailed
The purifying tanks are all of internally heated design, and the regenerated heat is high in efficiency and low in energy consumption and can be produced within a short time period.
It is provided with PLC system which can perform automatic leakage detection function after heat is regenerated, for avoiding any hidden peril. There is also a fuel gas leakage alarm device for real-time monitoring of gas concentration outside the tanks.
Thanks to the use of tubular heater, electrostatic protection device and nitrogen gas regeneration process, the risk of explosion of equipment is reduced to a maximum.
It is of a standardized design. A series of the purifying equipment in capacities of 10-150m³/h is available.
