Product structure and character
The furnace chamber is round in design. It offers the merits of being less in occupation of floor space, compact in layout and high in efficiency.
The work pieces are loaded and unloaded via a single access door by means of easy-to-operate manipulator.
Thanks to the use of uniformly distributed radiation tubes, large-capacity circulating fans and highaccuracy temperature control instruments, the furnace temperature is high in uniformity.
The system is designed in compliance with European safety and protection standard for ensuring the safety of operators and equipment.
The system is provided with touchscreen computer. It is easy to operate and is capable of continuously recording the operating data for easy inquiry.
A series of the furnace is available for selection (The maximum effective diameter of the furnace is 4.5m)
Product specifications
| Type | Hearth Dia. | Cycle time | Working stations |
| ROX9-170-SP | 1700mm | ≥45s | As needed |
| ROX9-230-SP | 2300mm | ≥45s | As needed |
| ROX9-270-SP | 2700mm | ≥45s | As needed |
| ROX9-350-SP | 3500mm | ≥60s | As needed |
| ROX9-450-SP | 4500mm | ≥60s | As needed |

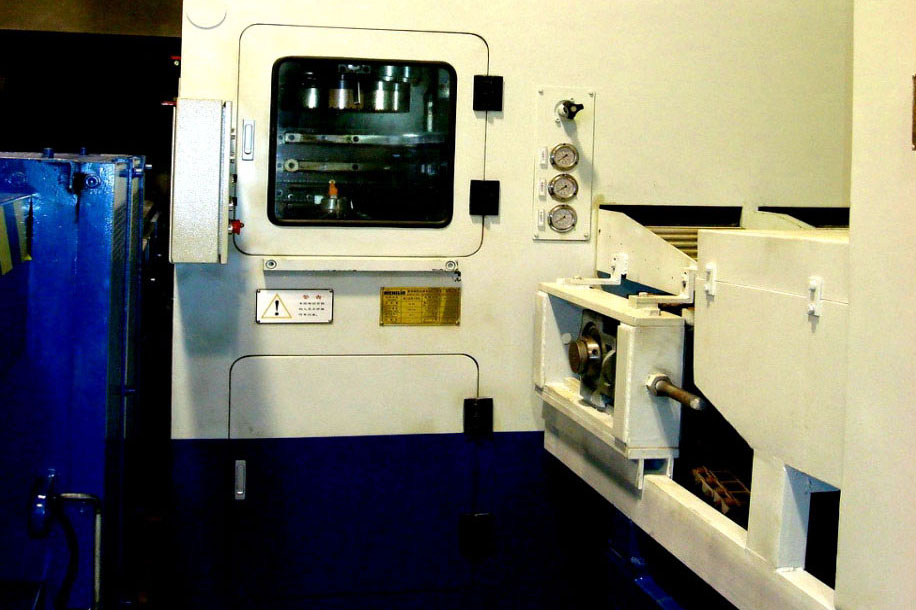

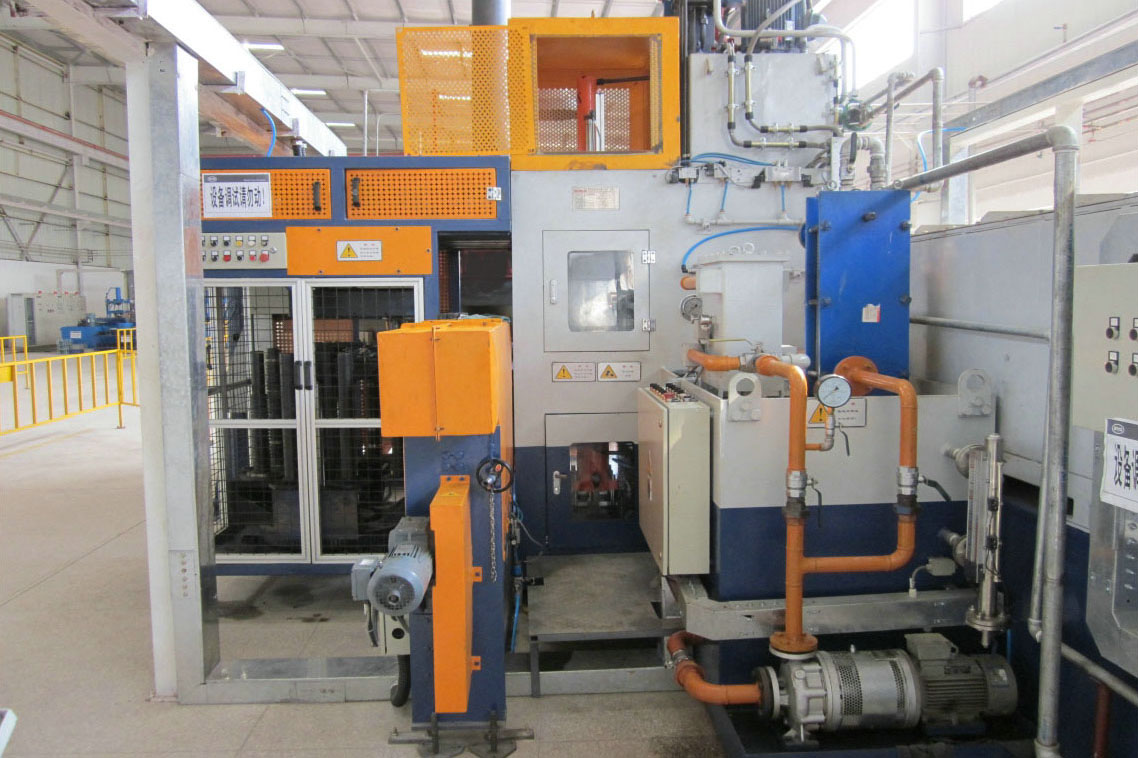

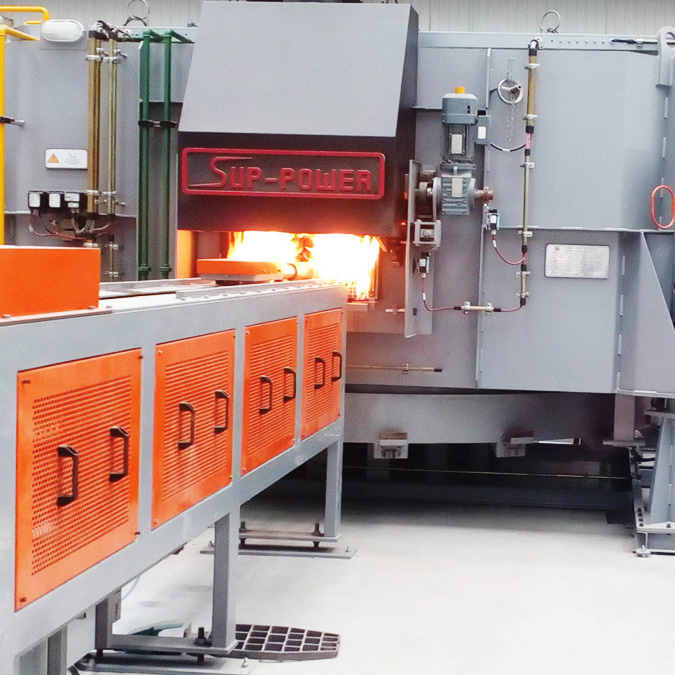

Products Pictures
