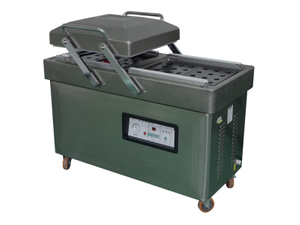

Customizable Vacuum Chamber: The vacuum chamber of this machine is made of stainless - steel, and it can be customized to have greater depth and length. This flexibility allows for packaging products of different sizes, whether they are small - scale items or larger objects.
Versatile Sealing Options: It is equipped with two types of sealing strips. The double - sealing strip is particularly useful when packaging multiple small - sized products in one go, ensuring that each package is securely sealed. On the other hand, the single - sealing (front - sealing) strip is ideal for packaging single, larger - sized products. This versatility in sealing options caters to diverse packaging requirements.
Efficient Operation: The upper cover of the machine can move horizontally. This unique design enables a parallel - processing mode of operation. When one chamber is in the process of vacuum - packaging, the other chamber can be prepared for the next batch of products. As a result, the production capacity is doubled, making it suitable for high - volume packaging tasks.
Integrated Packaging Functions: This machine combines three essential packaging functions - vacuuming, sealing, and printing. It can print important information such as the expiration date, production date, and product serial number directly onto the packaging. This integrated approach not only saves time but also enhances the overall packaging quality.
User - Friendly Control: Controlled by a computer - board programming system, the YX - 500/2S is incredibly easy to operate. Users can input the necessary packaging parameters in advance, and the machine will automatically execute the entire vacuum - packaging process. This user - friendly design makes it accessible to both experienced operators and those new to packaging machinery.
Durable Construction: Constructed with a stainless - steel body, the machine is highly durable and resistant to corrosion. This ensures a long - service life and requires minimal maintenance, making it suitable for use in various industrial and commercial environments.
Wide - range of Applications: It is compatible with a variety of soft - packaging materials, including plastic composite films, plastic - aluminum foil bags, and anti - static bags. The machine can package different types of products, such as solids, liquids, powders, and pastes. It is commonly used for packaging electronic products, circuit boards, SMT patch trays, toys, tea, food, fruits, chemical products, electronic components, and precision instruments. Vacuum packaging helps protect these products from oxidation, mildew, spoilage, moisture, and vibration, thereby extending their shelf - life.
| Parameter | Details |
|---|---|
| Model | YX - 500/2S |
| Packaging Capacity (packs/min) | 3 - 5 |
| Maximum Sealing Size (mm) | 500x10/2 |
| Vacuum Chamber Size (mm) | 600x560x140 |
| Overall Dimensions (mm) | 1220x625x920 |
| Power Supply Voltage (V) | 220 |
| Total Power (Kw/h) | 1.8 |
| Ultimate Vacuum Degree (KPa) | 0.2 |
| Net Weight (kg) | 120 |
