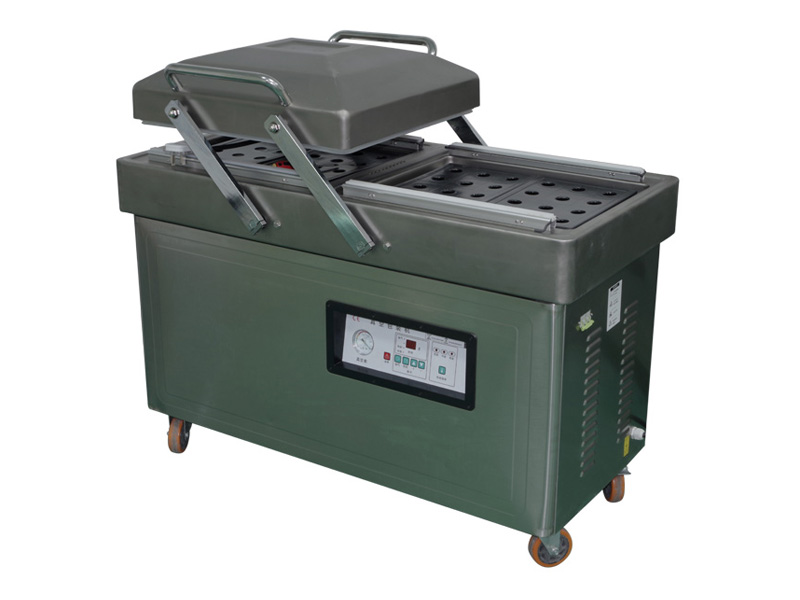

YX-500-2S Internal Vacuum Packaging Machine
YX-500-2S Internal Vacuum Packaging Machine YX-500-2S Internal Vacuum Packaging Machine

loading

YX-500-2S Internal Vacuum Packaging Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The YX - 500/2S Internal - Suction Vacuum Packaging Machine is a highly practical and efficient packaging device, designed to meet a wide range of packaging needs.
SKU:
Availability:
Quantity:

Product Features

  1. Flexible Vacuum Chamber Design: The machine is equipped with a stainless - steel vacuum chamber, which can be customized to be deeper and longer according to specific requirements. This adaptability allows for packaging various - sized products.

  2. Versatile Sealing Options: It offers two types of sealing strips: double - seal and single - seal (front - seal). The double - seal is ideal for packaging multiple small - sized products at once, while the single - seal is suitable for packaging larger single items. This flexibility caters to different product packaging specifications.

  3. Efficient Operation: The upper cover of the machine can move horizontally. When one working chamber is in operation, the other can be prepared in advance for the next packaging task. This feature doubles the production capacity, making it suitable for high - volume packaging operations.

  4. Integrated Functions: It has the capabilities to perform vacuuming, sealing, and printing in one process. It can print information such as the expiration date, production date, and production number, providing comprehensive packaging solutions.

  5. User - friendly Control: The machine is controlled by a computer - board programming system. Operators can pre - set the technical parameters required for packaging, and the machine will automatically complete the entire vacuum - packaging process. This makes operation simple and convenient, even for those with limited technical knowledge.

  6. Sturdy Construction: The body of the machine is made of stainless steel, ensuring durability and resistance to corrosion. This material choice also makes the machine easy to clean and maintain, suitable for use in various environments.

  7. Wide - range of Applications: It is applicable to a variety of soft - packaging materials such as plastic composite films, plastic - aluminum foil bags, and anti - static bags. It can package different types of products, including solids, liquids, powders, and pastes. Common items include electronic products, circuit boards, SMT patch trays, toys, tea, food, fruits, chemical products, electronic components, and precision instruments. After packaging, products can be protected from oxidation, mildew, spoilage, moisture, and vibration, and their shelf - life can be extended.

Technical Specifications

ParameterDetails
ModelYX - 500/2S
Packaging Capacity (packs/min)3 - 5
Maximum Sealing Size (mm)500x10/2
Vacuum Chamber Size (mm)600x560x140
Overall Dimensions (mm)1220x625x920
Power Supply Voltage (V)220
Total Power (Kw/h)1.8
Ultimate Vacuum Degree (KPa)0.2
Net Weight (kg)120

In conclusion, the YX - 500/2S Internal - Suction Vacuum Packaging Machine is a reliable and efficient choice for businesses and users in need of high - quality vacuum - packaging solutions. Its multiple features, wide - range of applications, and user - friendly design make it a valuable asset in the packaging process.
