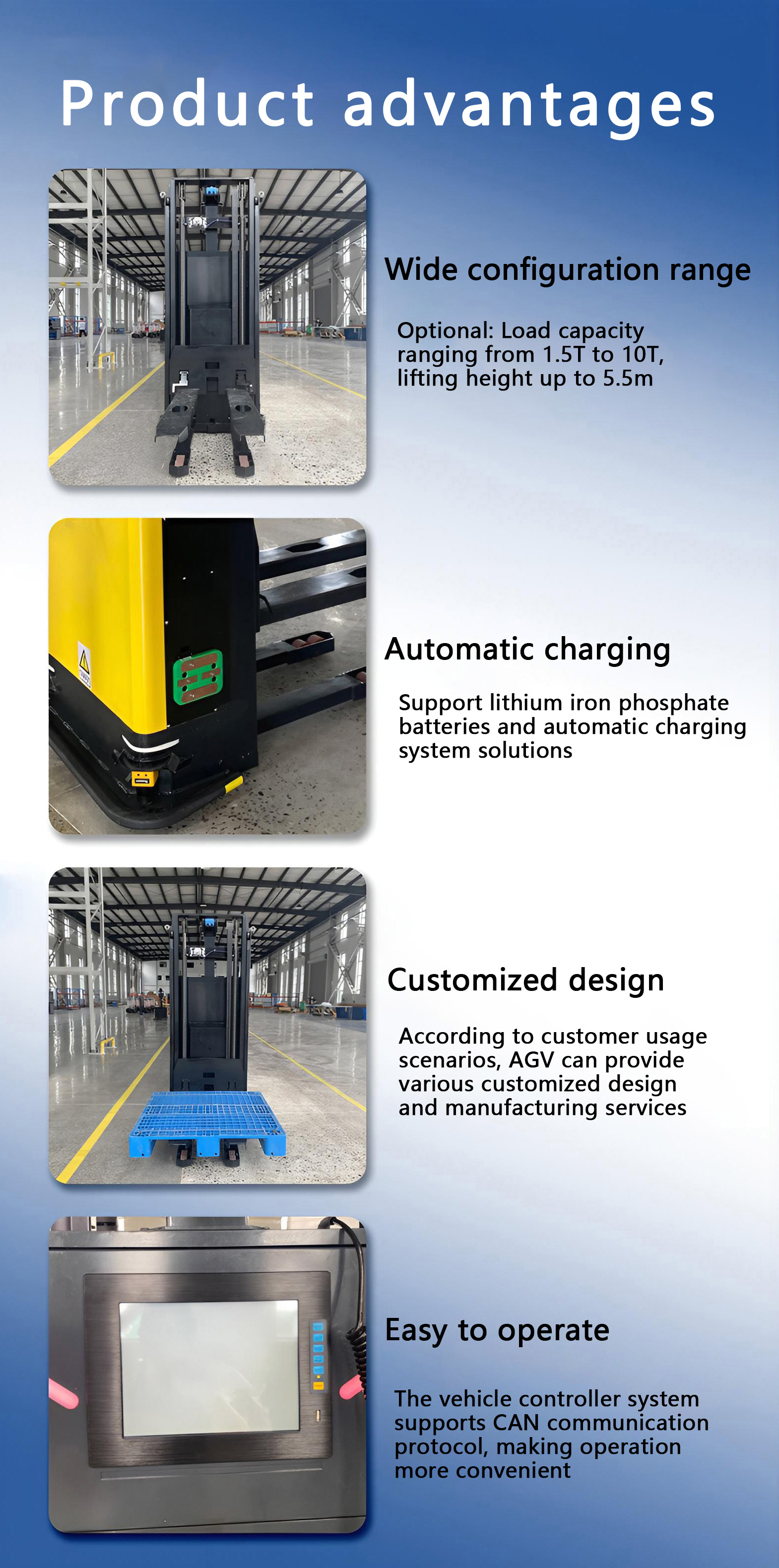

Machine Features:
Flexible Load Options:
Supports various configurations with rated capacities ranging from 1.5T to 10T and lifting heights up to 5.5m, adaptable to multiple warehouse and factory environments.
Smart Navigation System:
Equipped with laser navigation and optional QR code or 3D camera positioning, ensuring ±10mm precision for accurate and safe material handling.
Efficient Power Management:
Adopts lithium iron phosphate battery with auto charging function, enabling continuous operation for up to 8 hours and reducing downtime.
Comprehensive Safety Protection:

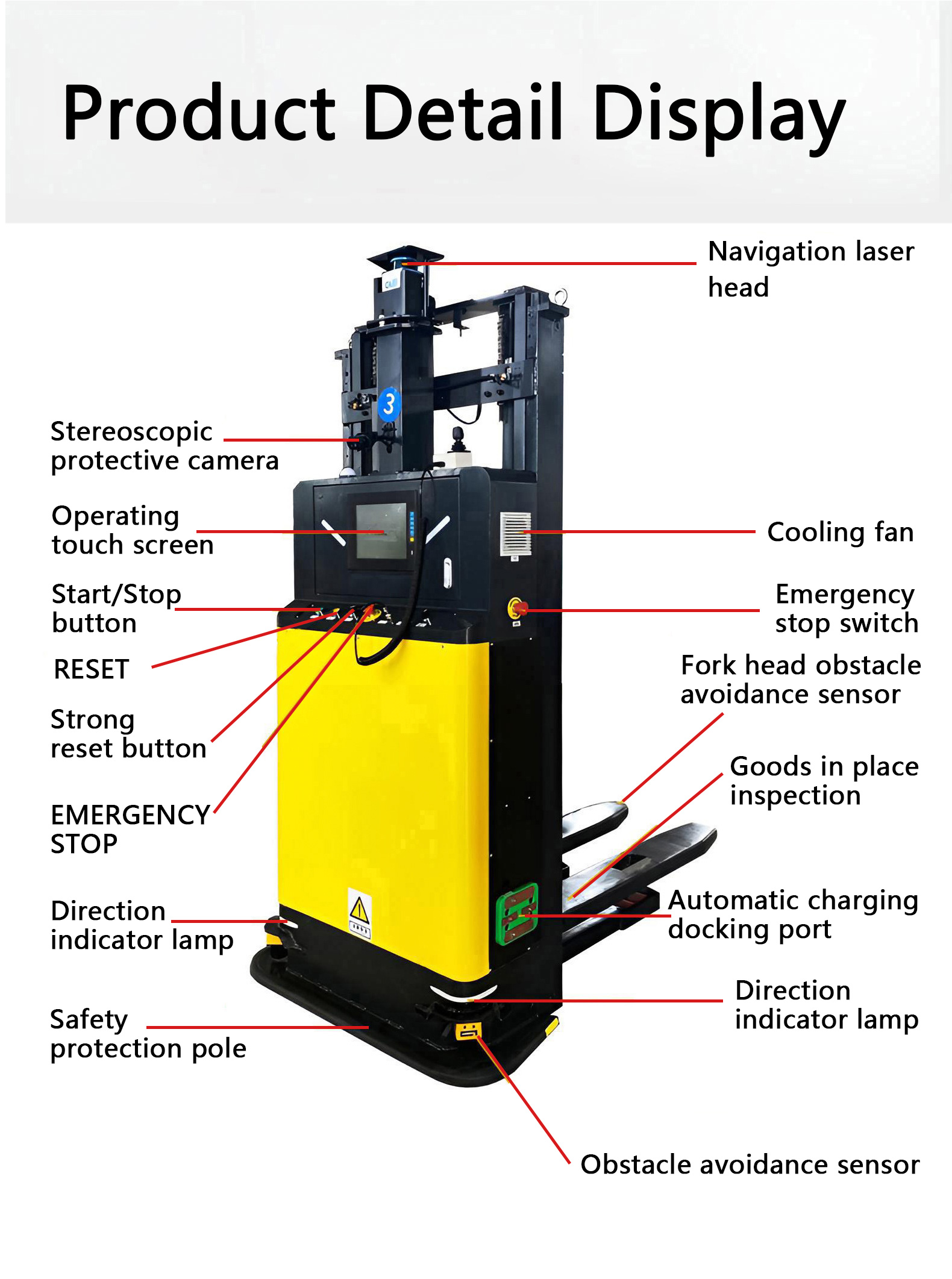

Integrated laser obstacle avoidance, safety edge sensors, emergency stop, and audible-visual alarms provide multi-layered safety assurance.
Customizable Design:
Supports scenario-based customization including lifting mechanism, navigation method, and interface protocol (CAN communication), meeting diverse operational requirements.
Easy Operation & Maintenance:
Intelligent control system with CAN protocol support, intuitive user interface, and modular components make operation and maintenance simple and reliable.

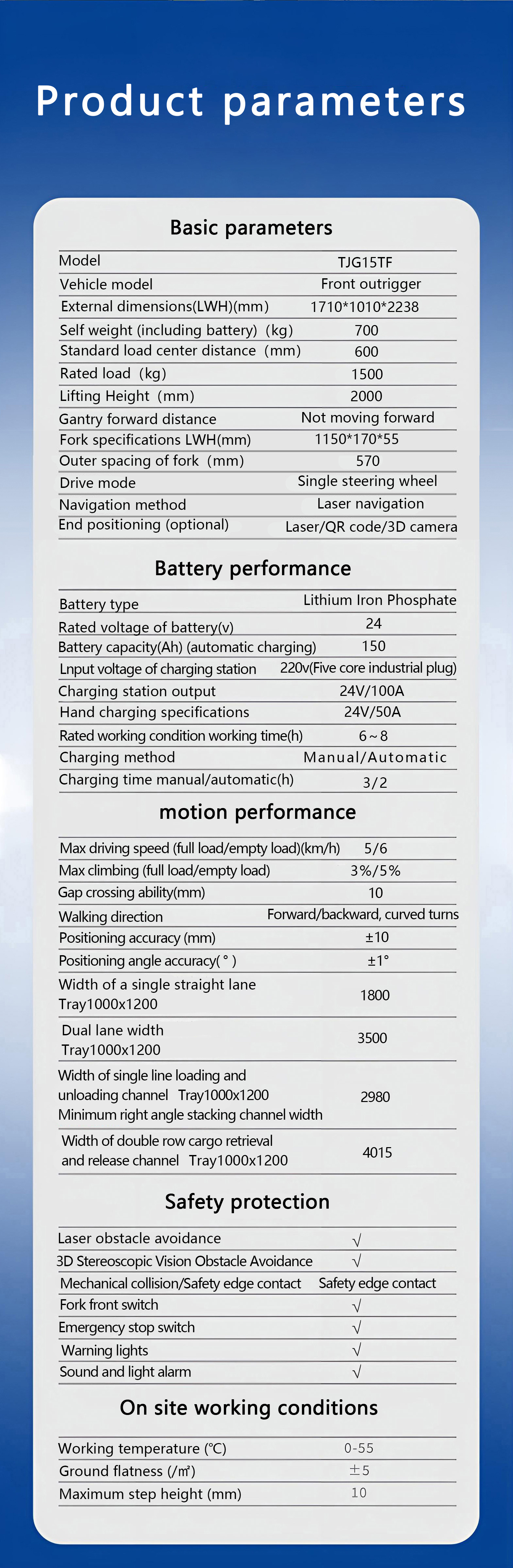

Products Specification:
| Category | Details |
| Vehicle Type | Front Outrigger |
| External Dimensions (L×W×H) | 1710 × 1010 × 2238 mm |
| Self Weight (Including Battery) | 700 kg |
| Load Center Distance | 600 mm |
| Rated Load Capacity | 1500 kg |
| Lifting Height | 2000 mm |
| Fork Dimensions (L×W×H) | 1150 × 170 × 55 mm |
| Fork Outer Spacing | 570 mm |
| Drive Mode | Single Steering Wheel |
| Navigation Method | Laser Navigation |
| End Positioning (Optional) | Laser / QR Code / 3D Camera |
| Battery Performance | |
| Battery Type | Lithium Iron Phosphate |
| Rated Voltage | 24 V |
| Battery Capacity | 150 Ah |
| Charging Station Input Voltage | 220 V (Five-core industrial plug) |
| Charging Station Output | 24 V / 100 A |
| Manual Charging Specification | 24 V / 50 A |
| Charging Mode | Manual / Automatic |
| Charging Time | 3 h (Manual) / 2 h (Automatic) |
| Working Time | 6–8 hours |
| Motion Performance | |
| Maximum Driving Speed (Full/Empty Load) | 5 / 6 km/h |
| Maximum Climbing Ability (Full/Empty Load) | 3% / 5% |
| Gap Crossing Ability | 10 mm |
| Walking Direction | Forward / Backward / Curved Turns |
| Positioning Accuracy | ±10 mm |
| Positioning Angle Accuracy | ±1° |
| Single Lane Width (Tray 1000×1200) | 1800 mm |
| Dual Lane Width (Tray 1000×1200) | 3500 mm |
| Single Line Loading Channel Width | 2980 mm |
| Minimum Right Angle Stacking Channel Width | 2980 mm |
| Double Row Cargo Channel Width | 4015 mm |

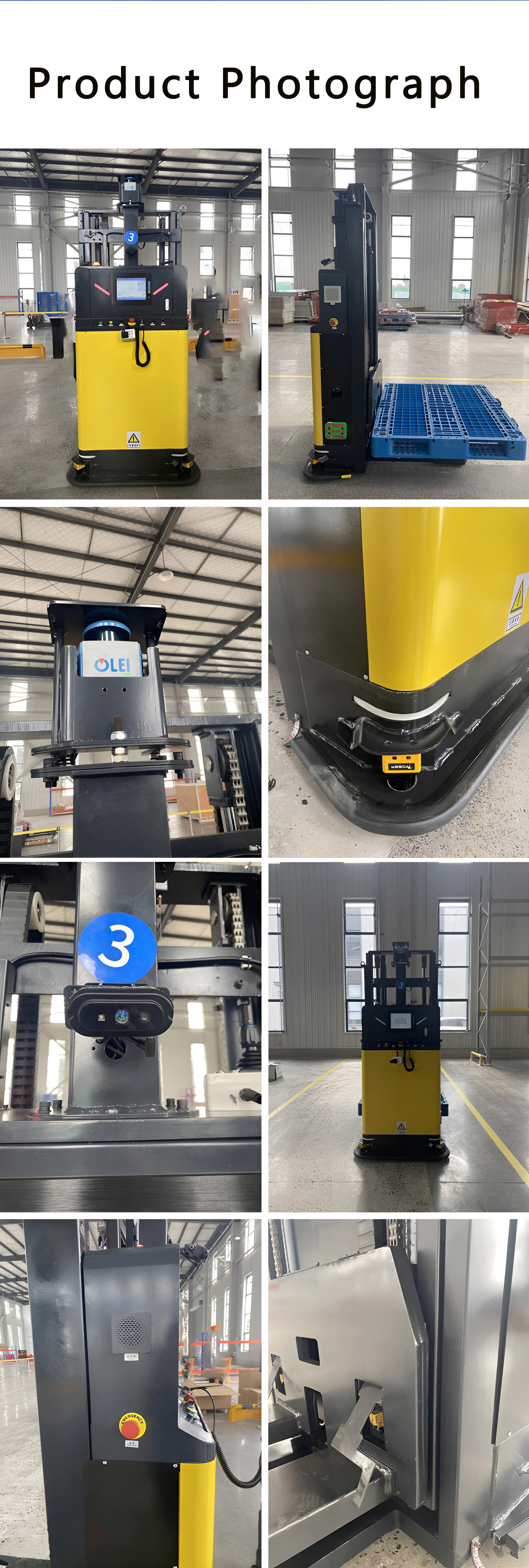

Products Pictures:
