Machine Features:

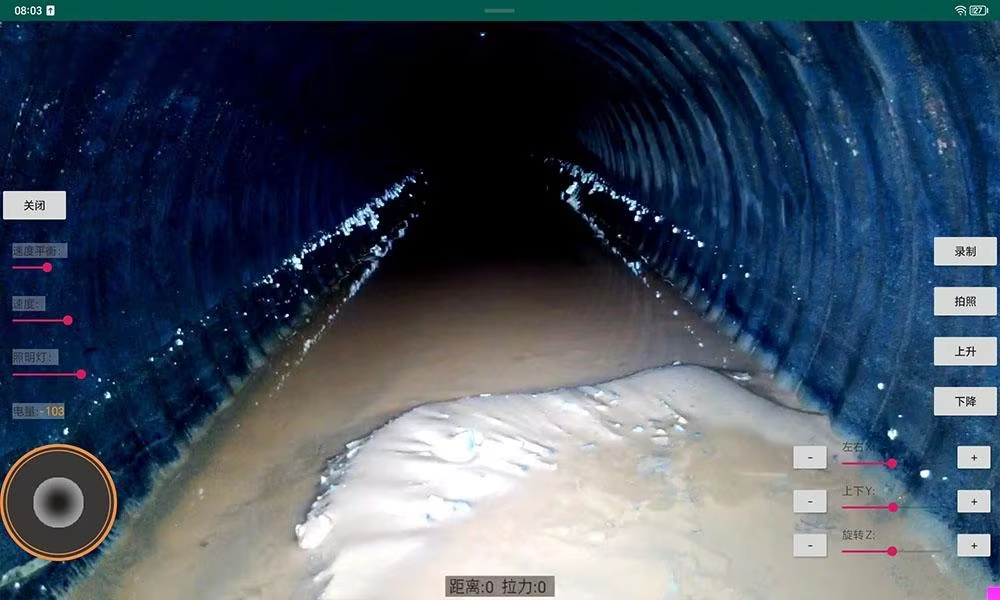

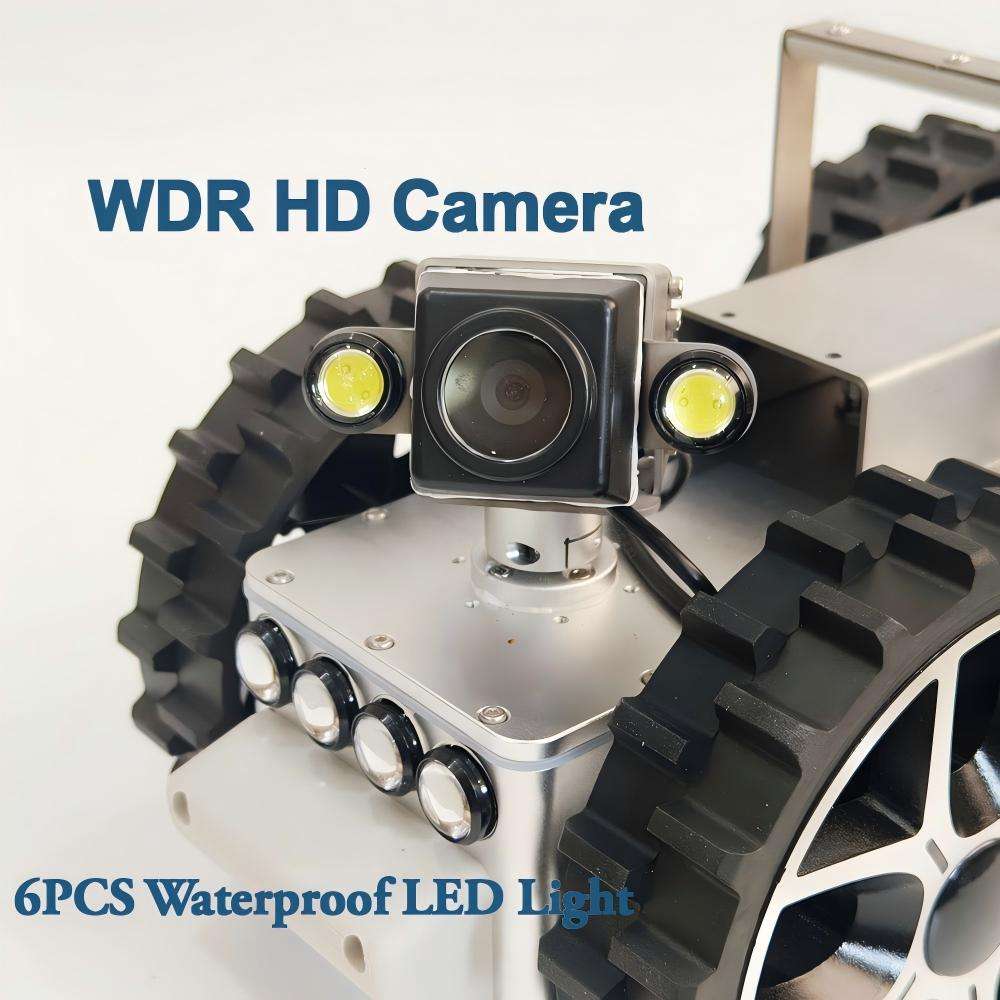

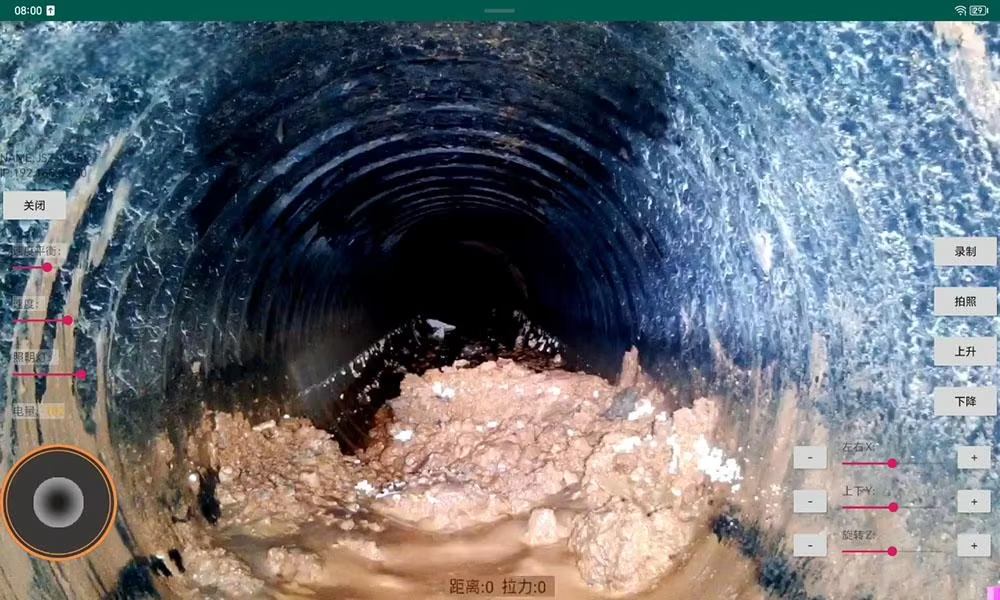

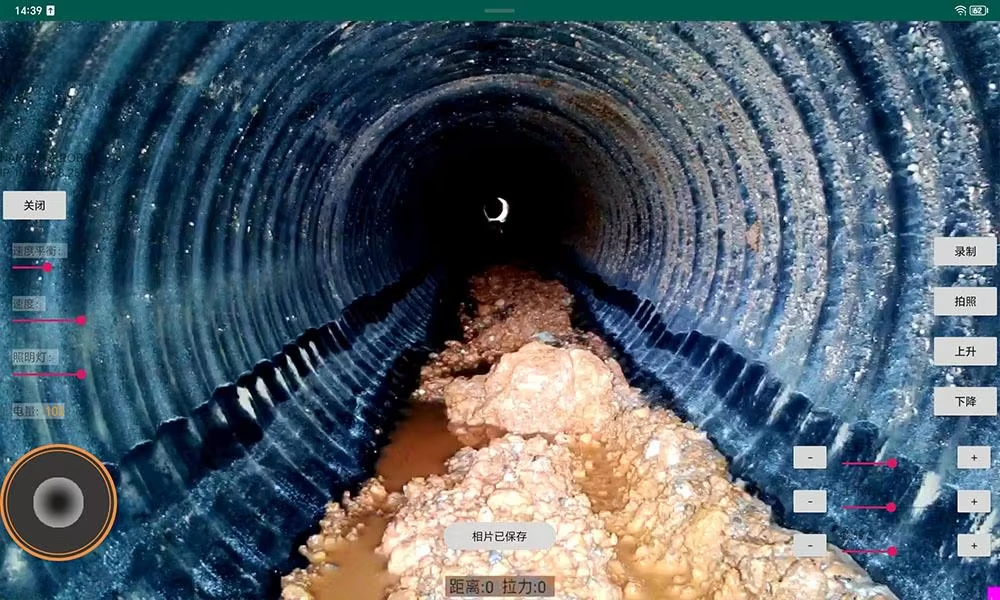

1. High-Definition Pan/Tilt Camera System
Equipped with a 2MP auto-focal HD camera and 180° adjustable pan-tilt function, it delivers clear visuals of the entire inner wall of the pipeline for accurate inspection and defect detection.

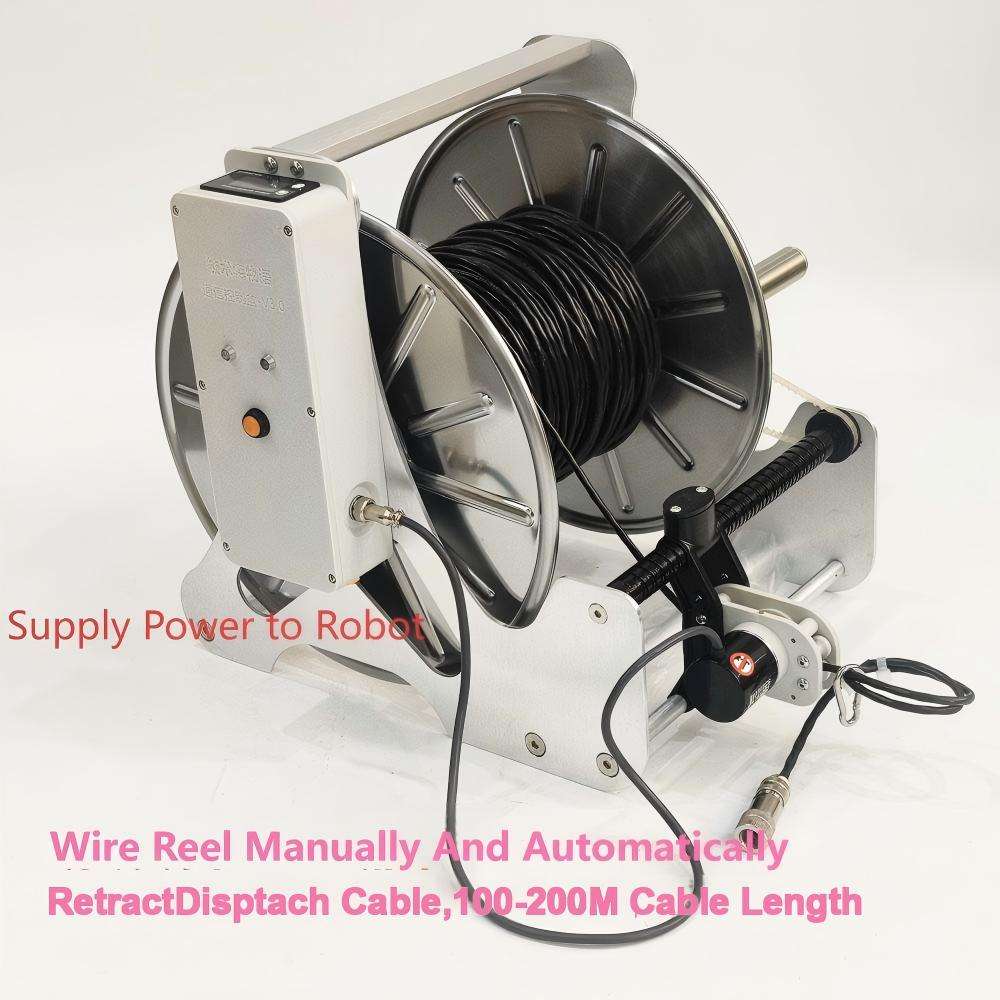

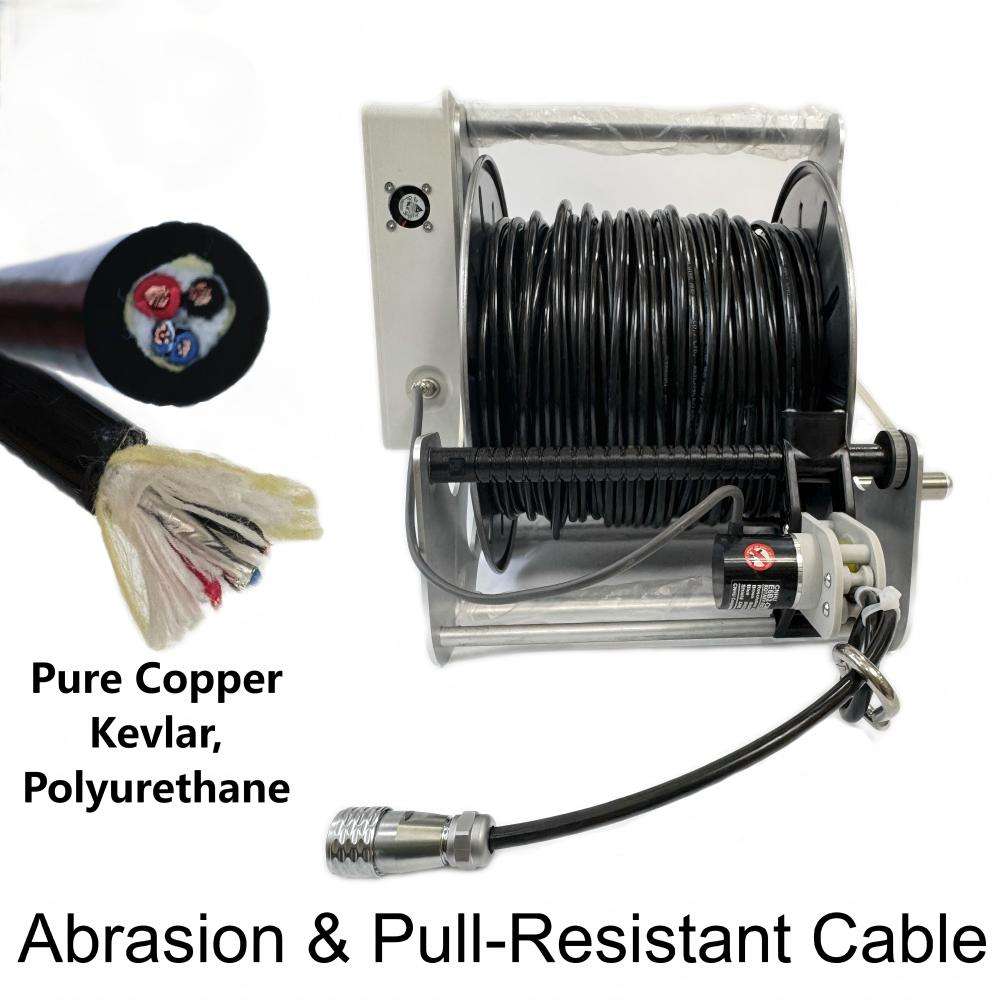

2. Long-Distance Stable Operation
Supports a 200-meter waterproof cable with zero signal loss. The crawler maintains stable communication and control performance in deep, curved, or multi-section pipelines.
3. Durable and Efficient Design
The aluminum alloy body provides excellent waterproof protection and corrosion resistance. Combined with a powerful 10-hour battery life and 25° climbing ability, it operates reliably in complex industrial environments.
Products Specification:
| Item | Details |
| Product Name | Waterproof Sewer Pipeline Inspection Crawler Robot |
| Carriage Size | 430mm × 200mm × 185mm |
| Reel Size | 440mm × 355mm × 362mm |
| Tablet Size | 280mm × 255mm × 10mm |
| Battery Size | 140mm × 110mm × 70mm |
| Carriage Weight | 8.37 kg |
| Reel Weight | 11.58 kg |
| Battery Weight | 4.5 kg |
| Cable Length | 200 meters |
| Battery Working Time | 10 hours |
| Charging Time | 4 hours |
| Pulling Force | 4.6 kg |
| Maximum Speed | 0.8 m/s |
| Minimum Speed | 0.12 m/s |
| Climbing Ability | 25° |
| Ground Clearance | 26 mm |
| Camera Resolution | 2 MP Auto Focus (3.5 mm lens) |
| Camera Pan/Tilt | Pan 180°, Tilt adjustable |
| Operation Control | Tablet / Remote Controller |
| Application | Municipal pipeline inspection, HVAC duct inspection, underground cable inspection, confined space inspection |
Products Pictures:
Machine Features:
1. High-Definition Pan/Tilt Camera System
Equipped with a 2MP auto-focal HD camera and 180° adjustable pan-tilt function, it delivers clear visuals of the entire inner wall of the pipeline for accurate inspection and defect detection.
2. Long-Distance Stable Operation
Supports a 200-meter waterproof cable with zero signal loss. The crawler maintains stable communication and control performance in deep, curved, or multi-section pipelines.
3. Durable and Efficient Design
The aluminum alloy body provides excellent waterproof protection and corrosion resistance. Combined with a powerful 10-hour battery life and 25° climbing ability, it operates reliably in complex industrial environments.
Products Specification:
| Item | Details |
| Product Name | Waterproof Sewer Pipeline Inspection Crawler Robot |
| Carriage Size | 430mm × 200mm × 185mm |
| Reel Size | 440mm × 355mm × 362mm |
| Tablet Size | 280mm × 255mm × 10mm |
| Battery Size | 140mm × 110mm × 70mm |
| Carriage Weight | 8.37 kg |
| Reel Weight | 11.58 kg |
| Battery Weight | 4.5 kg |
| Cable Length | 200 meters |
| Battery Working Time | 10 hours |
| Charging Time | 4 hours |
| Pulling Force | 4.6 kg |
| Maximum Speed | 0.8 m/s |
| Minimum Speed | 0.12 m/s |
| Climbing Ability | 25° |
| Ground Clearance | 26 mm |
| Camera Resolution | 2 MP Auto Focus (3.5 mm lens) |
| Camera Pan/Tilt | Pan 180°, Tilt adjustable |
| Operation Control | Tablet / Remote Controller |
| Application | Municipal pipeline inspection, HVAC duct inspection, underground cable inspection, confined space inspection |
