Machine Features:
Wide Application Range:
Supports inspection in pipelines with diameters from 300mm to 2000mm, covering various municipal and industrial needs.
High-Definition Camera System:
Equipped with a 5MP infrared night vision camera that provides real-time video, image capture, and recording, ensuring clear results in dark environments.
360° Rotation & Adjustable Lift Design:
Features 360° rotation and a remote-controlled lifting frame that increases the inspection height by up to 185mm, offering enhanced adaptability.
Strong Mobility & Stability:
The four-wheel drive system provides smooth movement, with ≤30° climbing capability and ≤50mm obstacle clearance for reliable navigation.
IP68 Waterproof & Durable Construction:
Built with high-strength ABS and metal materials, ensuring excellent waterproofing and corrosion resistance for long-term operation.
Products Specification:
| Item | Description |
| Product Name | Intelligent HD Pipeline Works Inspection Underwater Robot |
| Applicable Pipe Diameter | 300–2000mm |
| Product Size | 620(L) × 445(W) × 250(H) mm |
| Product Weight | 19kg |
| Climbing Ability | ≤30° |
| Lifting Height | 210mm |
| Obstacle Crossing Ability | ≤50mm |
| Working Distance | 100m |
| Drive Wheel Width | 27mm |
| Body Rotation | 360° |
| Waterproof Level | IP68 |
| Camera Type | Infrared Night Vision HD Camera |
| Camera Pixel | 5 Megapixels |
| Camera Rotation | 120° Vertical |
| Power Supply | Lithium Battery |
| Warranty | 1 Year |
| Control Distance | 500m (Remote) |
| Material | Metal + ABS |
| Application | Pipeline, Sewer, and Municipal Inspection |

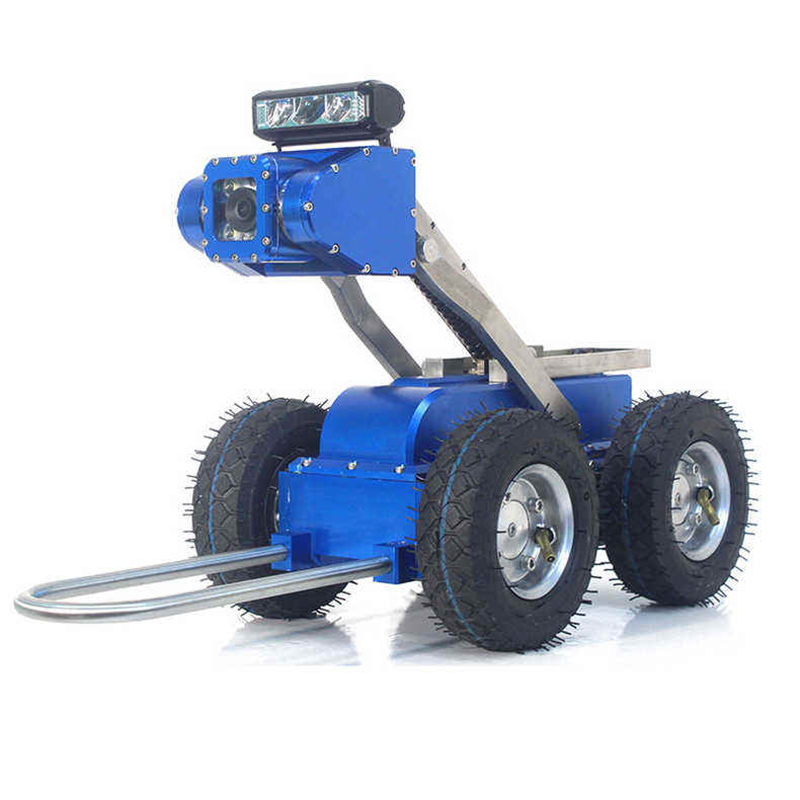

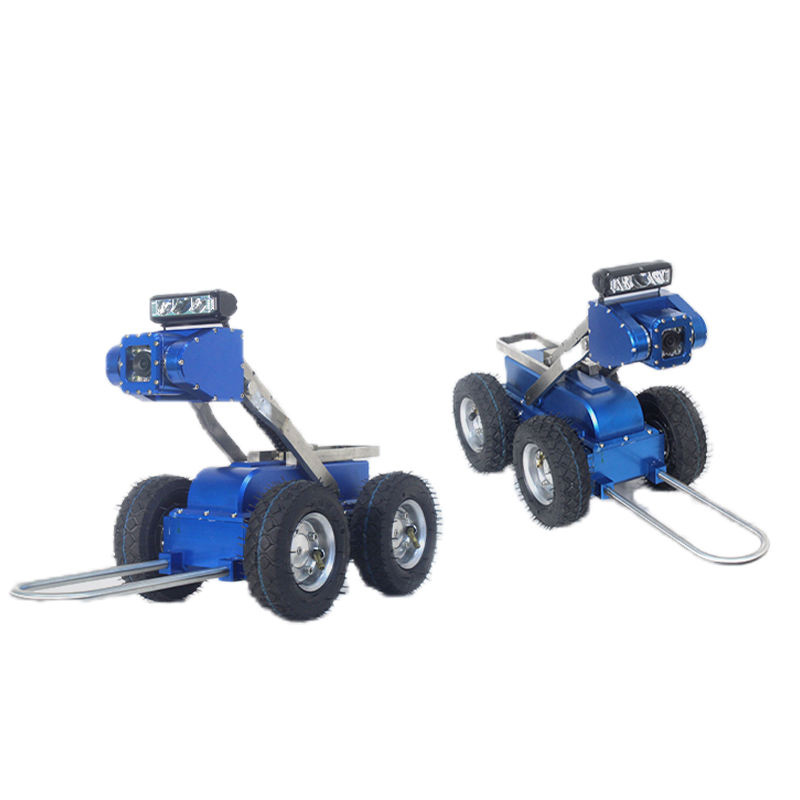

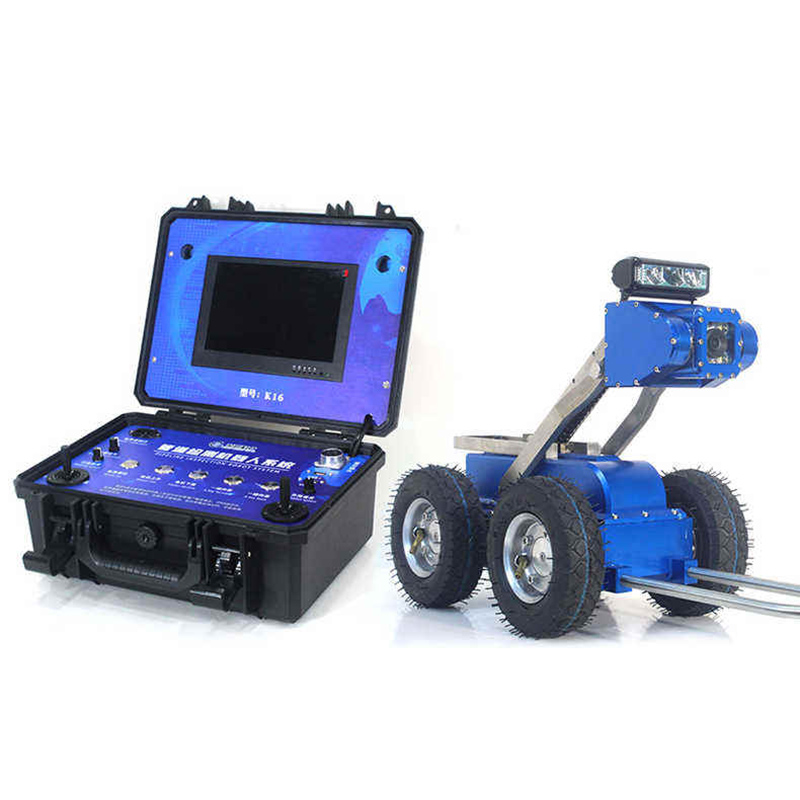

Products Pictures:
