Machine Features:
Four-Track All-Terrain Mobility:
Equipped with a four-track drive and hydraulic shock absorption, it can easily cross debris, slopes, and obstacles up to 500 mm. Supports in-place turning and superior climbing ability for complex rescue terrains.
Hydraulic Power & Water Output:
Delivers water flow up to 157.2 L/s and foam output up to 150 L/s, achieving a spray range of nearly 110 meters.
Environmental Sensing System:
Monitors 14 gas types (CO, CH₄, O₂, H₂S, etc.) and temperature/humidity in real time, ensuring safety in hazardous zones.
Integrated Control & Remote Operation:
Equipped with an intelligent control panel for system diagnostics and remote monitoring, supporting real-time image transmission.
High-Pressure Hydraulic Port:
The rear hydraulic source can power external rescue tools such as cutters, spreaders, or demolition equipment.
Safety & Reliability:
Passed 16-hour continuous stability tests, ensuring consistent performance in fire, explosion, and toxic environments.
Products Specification:
| Products Specification: | Description |
| Product Name | All Terrain Four Tracks Firefighting Hydraulic Robot |
| Application | Fire suppression, hazardous gas reconnaissance, rescue in extreme environments |
| Dimensions (L×W×H) | 2262 × 1566 × 1323 mm |
| Weight | 1910 kg |
| Power Source | Diesel engine with hydraulic transmission system |
| Traction Force | ≥ 20.4 KN |
| Water Flow Rate | ≥ 157.2 L/s |
| Foam Flow Rate | ≥ 150 L/s |
| Water/Foam Range | ≥ 109.8 m (water), ≥ 92.7 m (foam) |
| Load Capacity | ≥ 803 kg towing load |
| Ground Clearance | ≥ 253 mm |
| Track Type | Four-track drive with shock absorption and tensioning device |
| Turning Diameter | ≤ 3015 mm |
| Climbing Ability | ≥ 40° |
| Obstacle Clearance | ≥ 500 mm |
| Wading Depth | ≥ 502 mm |
| Maximum Speed | ≥ 3.32 m/s (stepless remote speed control) |
| Straight-line Deviation | ≤ 1.4% |
| Braking Distance | ≤ 0.18 m |
| Roll Stability Angle | ≥ 34° |
| Working Time | 16-hour continuous reliability test passed |
| Remote Control Distance | ≥ 1800 m |
| Control System | Remote control + side-mounted monitoring panel |
| Environmental Monitoring | 14 gas parameters + 2 environment parameters |
| Hydraulic Output | Rear high-pressure hydraulic interface for demolition tools |
| Protection Level | Suitable for high-temperature, smoke, and toxic gas environments |

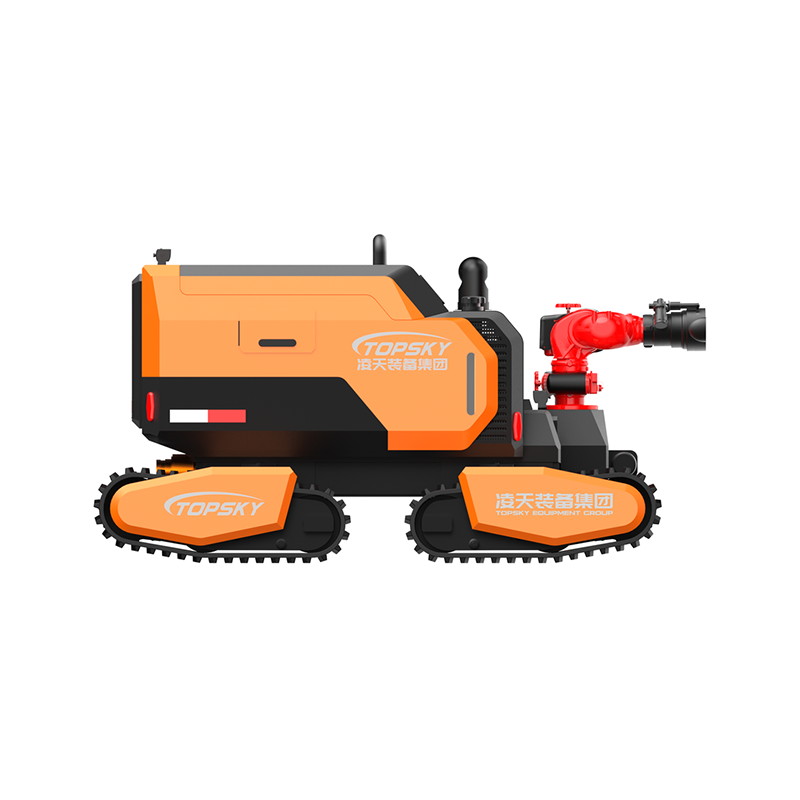

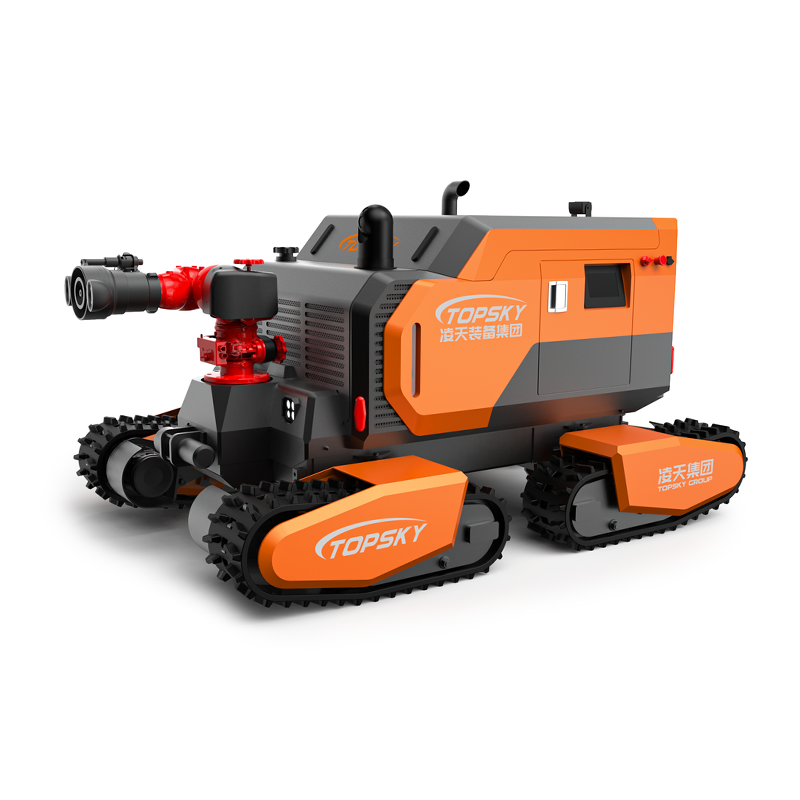

Products Pictures:
Machine Features:
Four-Track All-Terrain Mobility:
Equipped with a four-track drive and hydraulic shock absorption, it can easily cross debris, slopes, and obstacles up to 500 mm. Supports in-place turning and superior climbing ability for complex rescue terrains.
Hydraulic Power & Water Output:
Delivers water flow up to 157.2 L/s and foam output up to 150 L/s, achieving a spray range of nearly 110 meters.
Environmental Sensing System:
Monitors 14 gas types (CO, CH₄, O₂, H₂S, etc.) and temperature/humidity in real time, ensuring safety in hazardous zones.
Integrated Control & Remote Operation:
Equipped with an intelligent control panel for system diagnostics and remote monitoring, supporting real-time image transmission.
High-Pressure Hydraulic Port:
The rear hydraulic source can power external rescue tools such as cutters, spreaders, or demolition equipment.
Safety & Reliability:
Passed 16-hour continuous stability tests, ensuring consistent performance in fire, explosion, and toxic environments.
Products Specification:
| Products Specification: | Description |
| Product Name | All Terrain Four Tracks Firefighting Hydraulic Robot |
| Application | Fire suppression, hazardous gas reconnaissance, rescue in extreme environments |
| Dimensions (L×W×H) | 2262 × 1566 × 1323 mm |
| Weight | 1910 kg |
| Power Source | Diesel engine with hydraulic transmission system |
| Traction Force | ≥ 20.4 KN |
| Water Flow Rate | ≥ 157.2 L/s |
| Foam Flow Rate | ≥ 150 L/s |
| Water/Foam Range | ≥ 109.8 m (water), ≥ 92.7 m (foam) |
| Load Capacity | ≥ 803 kg towing load |
| Ground Clearance | ≥ 253 mm |
| Track Type | Four-track drive with shock absorption and tensioning device |
| Turning Diameter | ≤ 3015 mm |
| Climbing Ability | ≥ 40° |
| Obstacle Clearance | ≥ 500 mm |
| Wading Depth | ≥ 502 mm |
| Maximum Speed | ≥ 3.32 m/s (stepless remote speed control) |
| Straight-line Deviation | ≤ 1.4% |
| Braking Distance | ≤ 0.18 m |
| Roll Stability Angle | ≥ 34° |
| Working Time | 16-hour continuous reliability test passed |
| Remote Control Distance | ≥ 1800 m |
| Control System | Remote control + side-mounted monitoring panel |
| Environmental Monitoring | 14 gas parameters + 2 environment parameters |
| Hydraulic Output | Rear high-pressure hydraulic interface for demolition tools |
| Protection Level | Suitable for high-temperature, smoke, and toxic gas environments |
Products Pictures:
