Machine Features:
High-Speed Visual Inspection – 5MP industrial camera with GigE Vision ensures clear imaging and accurate defect detection.
Machine-Learning Detection – Supports parameter-based inspection and intelligent learning for improved recognition accuracy.
Precision Motion System – Servo motor + ball screw + linear guide provide stable movement and high repeatability.
Fast Setup & Debugging – Quick parameter adjustment and automatic recognition design boost production efficiency.
Large PCB Compatibility – Supports PCB thickness from 0.3mm to 10mm with low warpage tolerance.
Intuitive Touchscreen Operation – 22-inch LED display and user-friendly interface simplify daily use.
Sturdy Platform Design – Marble base ensures vibration-free performance and long-term stability.
Products Specification:
| Product Name | Automated Optical Inspection (AOI) Machine |
| Voltage | 220V |
| Power | 350W |
| Weight | 380kg |
| Dimensions (L×W×H) | 900×1100×1400mm |
| PCB Thickness | 0.3–10mm (warpage <5mm) |
| Monitor Size | 22-inch LED |
| Driving Device | Servo Motor + Ball Screw + Linear Slide |
| Camera Type | GiGE Vision (Gigabit Network Interface) |
| Camera Resolution | 2592×1944 (5MP) |
| Test Method | Arithmetic Parameter Debugging & Machine Learning |
| Application | SMT PCB Production Line |
| Function | LED Soldering Inspection |
| Operation | Automatic Touchscreen Interface |
| Packing | Wooden Box |
| Applicable Industries | Manufacturing Plant / Machinery Repair Shops |
| Warranty | 1 Year |
| Condition | New |
| Core Components | PLC, Bearing |

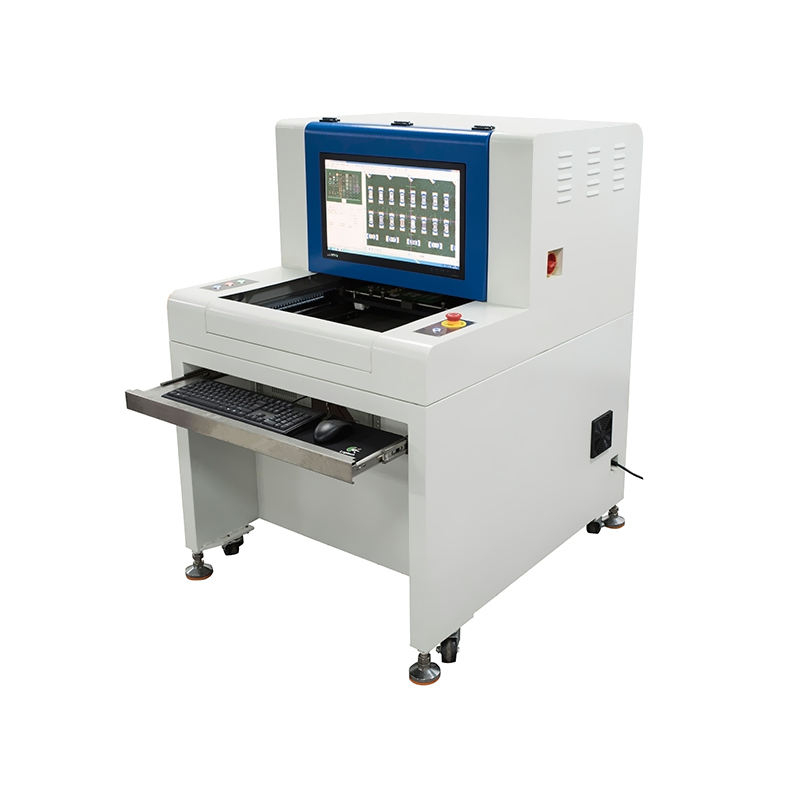

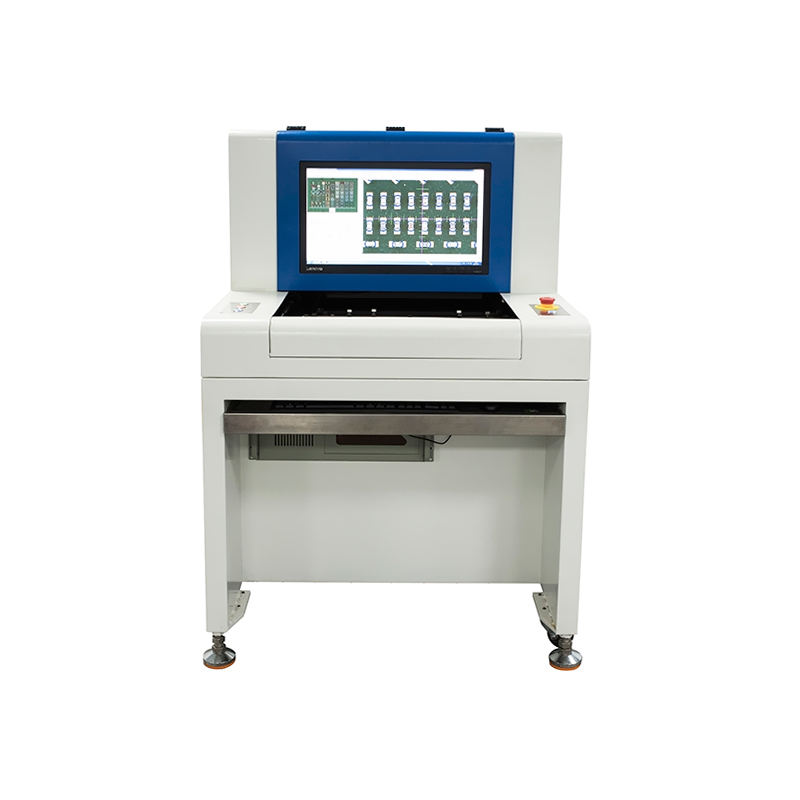

Products Pictures:
