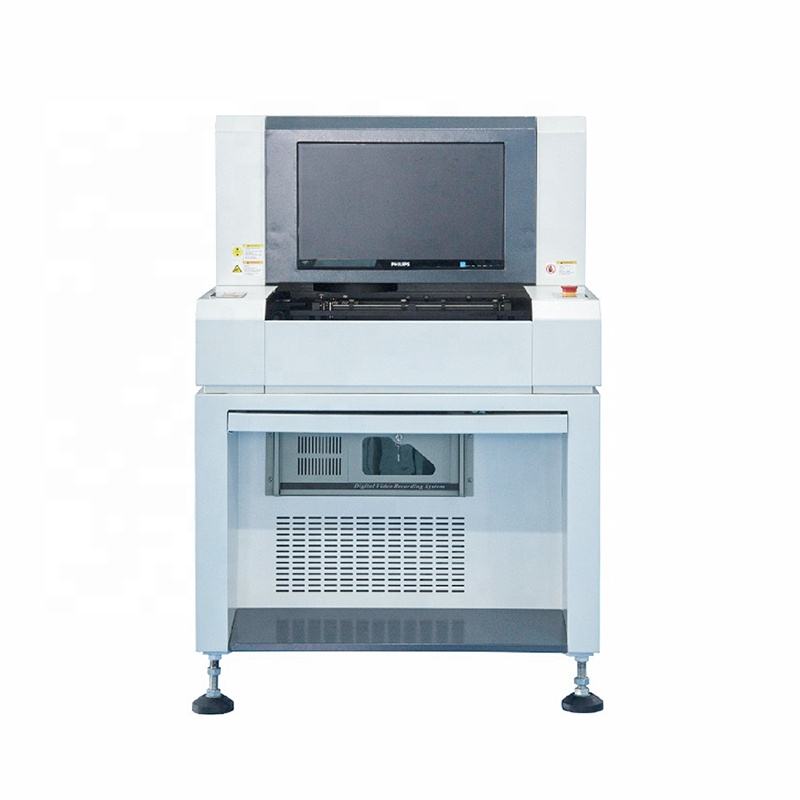

High Precision Offline AOI Machine AOI Optical Testing Machine for LED PCB

This high-precision offline AOI (Automated Optical Inspection) machine is designed for LED and PCB quality inspection in SMT production lines. It uses advanced optical imaging and high-speed visual algorithms to detect solder defects, missing components, polarity errors, and assembly faults. The system supports a wide PCB size range, ensuring stable performance for both fine-pitch and large-format boards. Ideal for improving production quality, reducing repair costs, and ensuring consistent process control.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

• High-Precision Optical Detection

Utilizes high-resolution cameras and visual algorithms to identify solder bridges, missing components, misalignment, and polarity errors with exceptional accuracy.

• Wide Compatibility with PCB Sizes

Supports PCB dimensions from 25×25 mm to 460×340 mm, suitable for fine-pitch LED boards and large SMT PCBA applications.

• Offline Inspection Mode

Ideal for batch sampling, quality verification, and reflow/post-wave solder inspection without interrupting the production line.

• Reduces Production Defects & Costs

Early detection prevents defective boards from moving to the next process, reducing rework time, scrap rate, and overall repair cost.

• Stable & Reliable Operation

Heavy-duty construction (450 kg) ensures vibration-free performance and consistent inspection accuracy during long-term industrial use.

Products Specification:

Parameter	Specification
Weight	450 kg
Core Components	Engine; Bearing; Gearbox; Motor; Gear
Warranty	1.5 years
Application	SMT PCB Assembly Production Line
Machine Type	Automatic AOI Inspection Machine
Function	Optical Testing / PCB Inspection
Minimum Component Size	0603
PCB Size Range	25×25 mm – 460×340 mm
Power Supply	AC 220V / 50–60Hz
Dimensions	900×1100×1350 mm
Condition	Brand New
Marketing Type	Hot Product
Video Inspection	Provided
Machinery Test Report	Provided
Core Component Warranty	1.5 years
