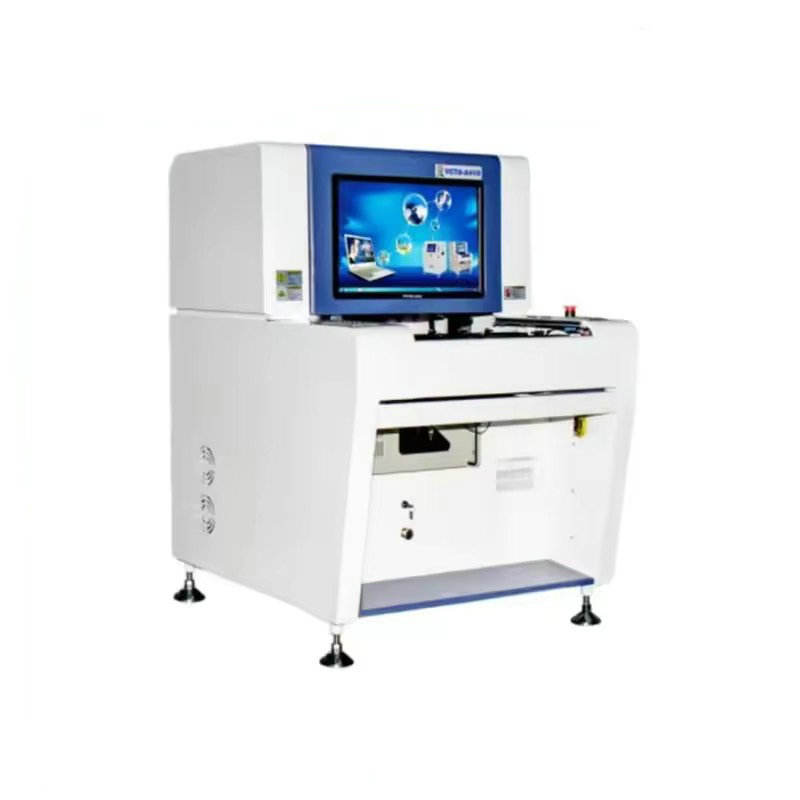

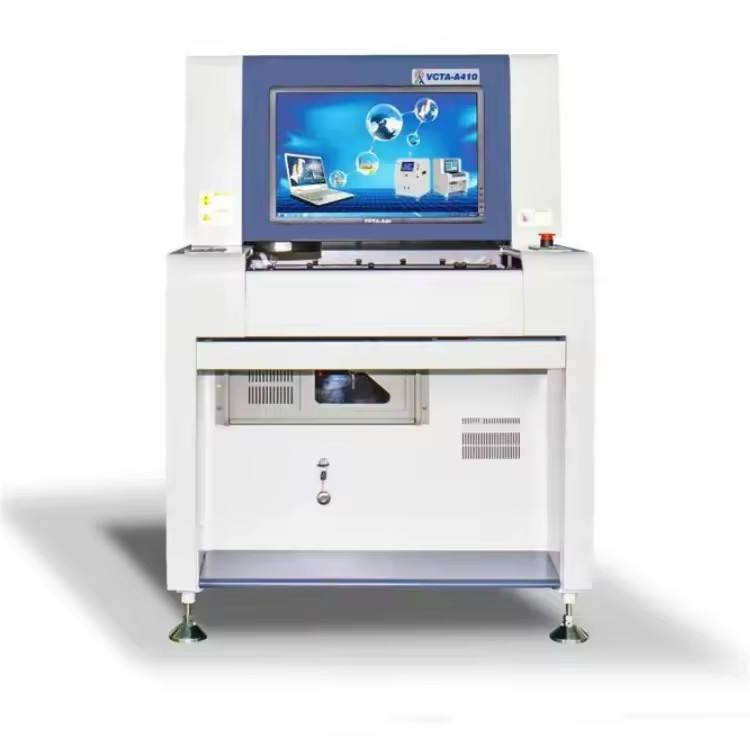

Semi-automatic AOI machine for PCB optical inspection with 5MP industrial camera
Semi-automatic AOI machine for PCB optical inspection with 5MP industrial camera Semi-automatic AOI machine for PCB optical inspection with 5MP industrial camera
SMT AOI equipment for detecting solder defects and component errors in PCB assembly SMT AOI equipment for detecting solder defects and component errors in PCB assembly
High-precision PCB visual inspection machine supporting 30–450mm board sizes High-precision PCB visual inspection machine supporting 30–450mm board sizes

loading

SMT Semi-automatic Small Precision PCB Feedback Machine AOI Optical Automatic Inspection Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This semi-automatic AOI optical inspection machine is designed for precision PCB detection in SMT production environments. Equipped with a 5MP high-speed industrial camera, it supports a wide PCB size range and provides stable, high-accuracy visual inspection. Ideal for detecting solder defects, missing components, and assembly errors, this compact AOI unit enhances quality control and improves production efficiency.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Machine Features:


High-resolution 5MP industrial camera for accurate component and solder inspection

Supports a wide range of PCB sizes from small modules to medium boards

Compatible with semi-automatic SMT assembly lines for flexible deployment

Detects common PCB defects such as missing components, polarity errors, solder bridges

Compact structure with reliable optical performance for consistent quality control


Products Specification:


Specification Details
Part Name Automated Optical Detection Instrument
Camera 5MP high-speed smart digital industrial camera
PCB Size 30 × 30 mm ～ 450 × 330 mm（custom sizes available）
PCB Thickness 0.3 mm ～ 6 mm
PCB Weight ≤ 3 kg

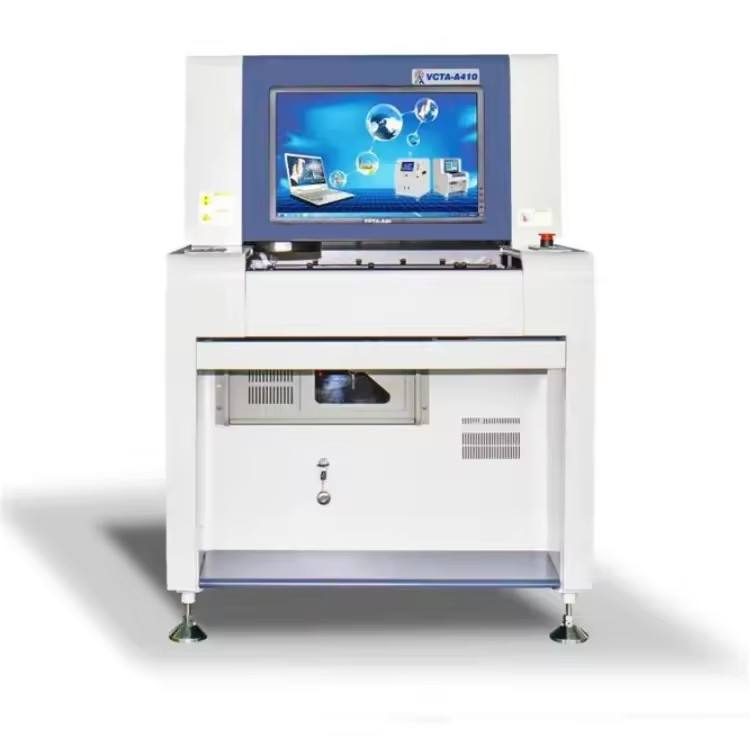

Products Pictures:

图片 (1)主图图片 (2)
