Machine Features:
High-Speed 2D Visual Inspection:
Supports SMT and THT processes with stable, repeatable inspection accuracy.
Flexible Line Compatibility:
Fits various PCB production stages including post-print, post-mount, and post-reflow inspection.
High Throughput:
Advanced scanning architecture shortens overall tact time and increases line productivity.
Advanced Lighting System:
Coaxial overhead lighting reveals solder conditions clearly and minimizes shadow interference.
Enhanced User Interface:
Pre-installed component libraries and automated defect detection tools simplify programming.
Superior Line-Scan Technology:
Detects extra components or defects across the entire board with a single inspection window.
Excellent Clearance & Versatility:
40 mm top-side and 60 mm bottom-side clearance support tall components and complex PCB structures.
Traceability Ready:
Optional barcode and 2D code scanning enables integrated SPC data management.
Products Specification:
| Specification | Details |
| Machine Type | Automated Optical Inspection (AOI) Equipment |
| Weight | 80 kg |
| Voltage | 380V |
| Core Components | PLC, AOI inspection module |
| PCB Size | 50×60 mm ~ 330×250 mm |
| Resolution | 18 μm |
| Board Thickness | 0.6–2.5 mm |
| Board Warp Tolerance | ±2 mm |
| Usage Environment | 15–30°C; 15–80% RH (non-condensing) |
| Dimensions (W×D×H) | 580×850×452 mm |
| Power Supply | Single-phase 100–120V / 200–240V, 50/60Hz |
| Machinery Test Report | Provided |
| Video Inspection | Provided |

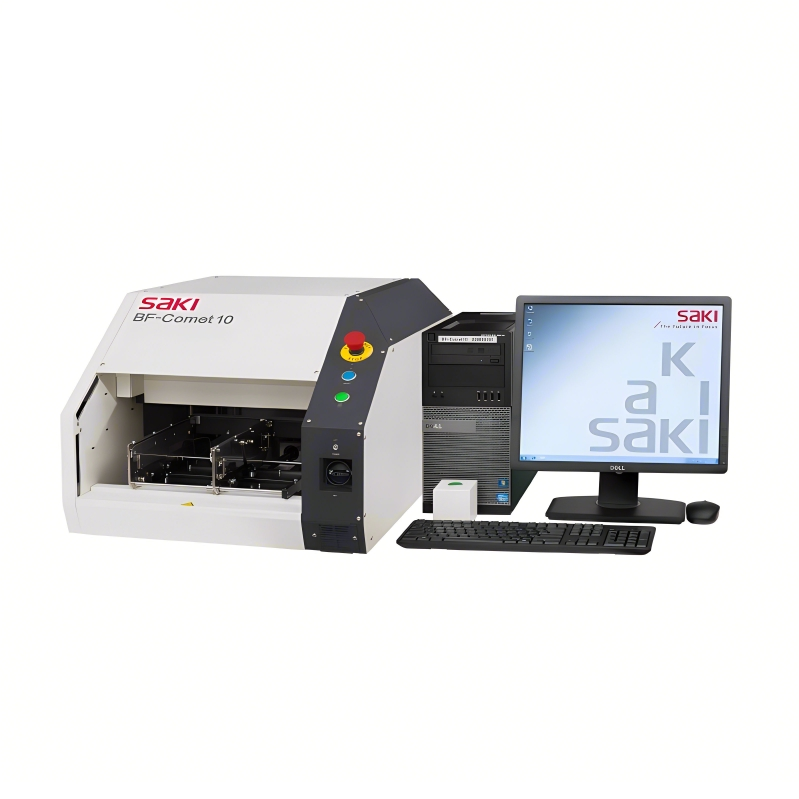

Products Pictures:
