Machine Features:
• Digital Triangulation Measurement
– Accurate optical displacement measurement
– Stable output suitable for automation lines
• Compact & Lightweight Design
– Weight only 90 g
– Small footprint for tight-space installations
• OLED Display & Simple Operation
– Clear visual display of measurement status
– Four control keys for quick configuration
• Durable Industrial Materials
– PBT plastic housing for mechanical strength
– PMMA window for stable optical performance
• Low Power Consumption
– Only 1.5 W at 24 V DC
– Efficient for continuous long-term operation
• Easy Integration
– M12 5-pin A-coded plug-in connection
– Compatible with standard industrial interfaces
• Fast Startup
– Preheating time < 30 minutes
– Quickly enters stable measurement state
Products Specification:
| Category | Details |
| Type | Digital laser triangulation displacement sensor |
| Power Consumption | 1.5 W at 24 V DC |
| Preheating Time | < 30 minutes |
| Housing Material | PBT plastic |
| Optical Window Material | PMMA |
| Connection Type | M12 5-pin A-coded plug, 30 cm cable |
| Display | OLED display + status LED |
| Operation Keys | 4-button control |

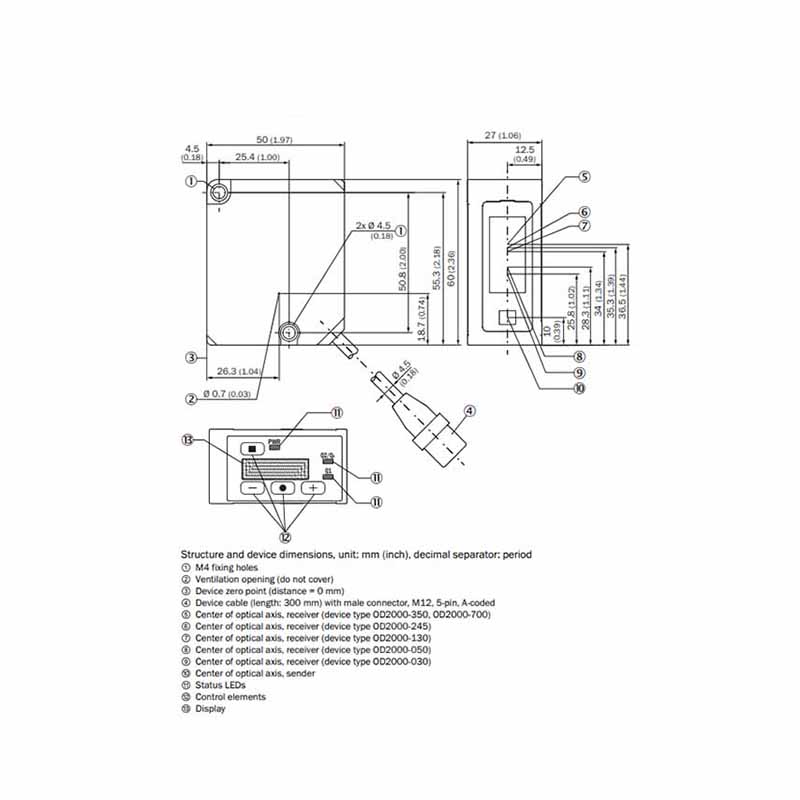

| Dimensions | 36.1 × 62.7 × 57.7 mm / 27 × 60 × 50 mm |
| Weight | 90 g |
| Application | Displacement, position, thickness, motion measurement |

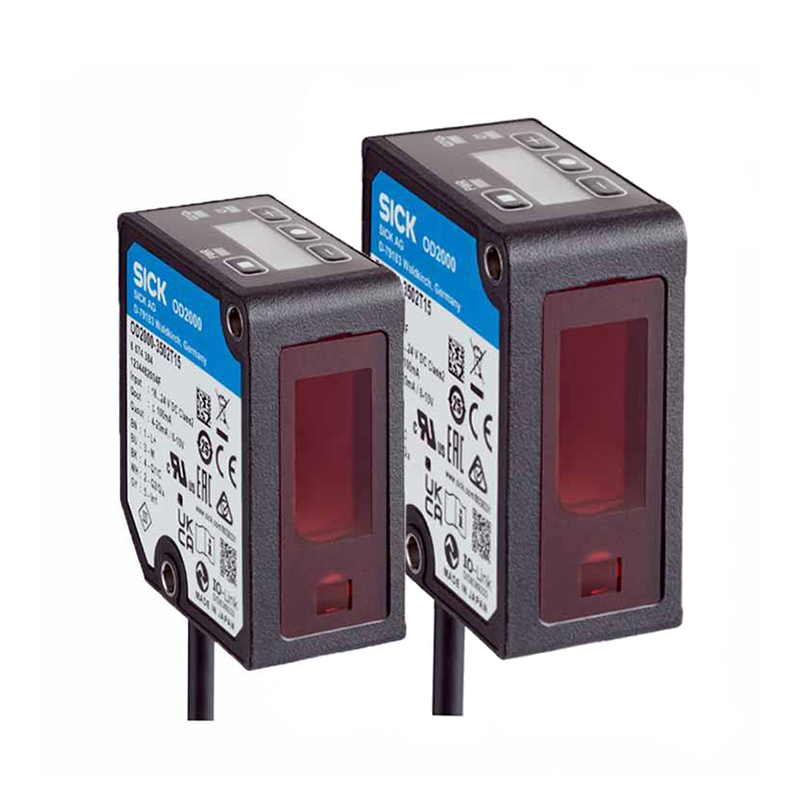

Products Pictures:
