Machine Features:
• Accurate Triangulation Detection
– Stable distance measurement using laser triangulation
– Effective for presence sensing, object counting, and position detection
• Color-Independent Performance
– True black-white isometric response
– Detects black, white, glossy, matte and colored objects with equal accuracy
• Angle & Surface Independent
– Detection remains stable regardless of object angle
– Works reliably with shiny, curved, or textured surfaces

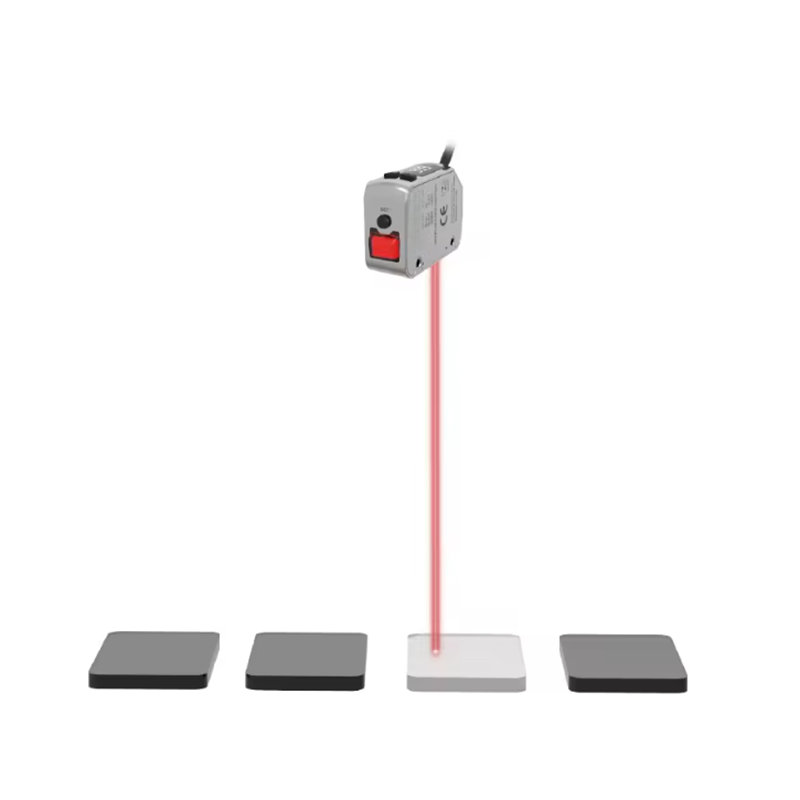

• Transparent Object Capability
– Detects whether a transparent bottle has a cap
– Performance unaffected by cap color or size
• High-Definition Digital Display
– Real-time distance reading
– Easy on-site adjustment and debugging
• Adjustable Response Time
– Selectable 2 ms / 10 ms / 50 ms to match different application speeds
• Industrial-Grade Construction
– Aluminum alloy housing + PC indicator cover
– Suitable for harsh or complex industrial environments
• Easy Bracket Mounting
– Flexible installation for conveyors, automation equipment and assembly systems
Products Specification:
| Category | Details |
| Type | Reflective laser triangulation sensor |

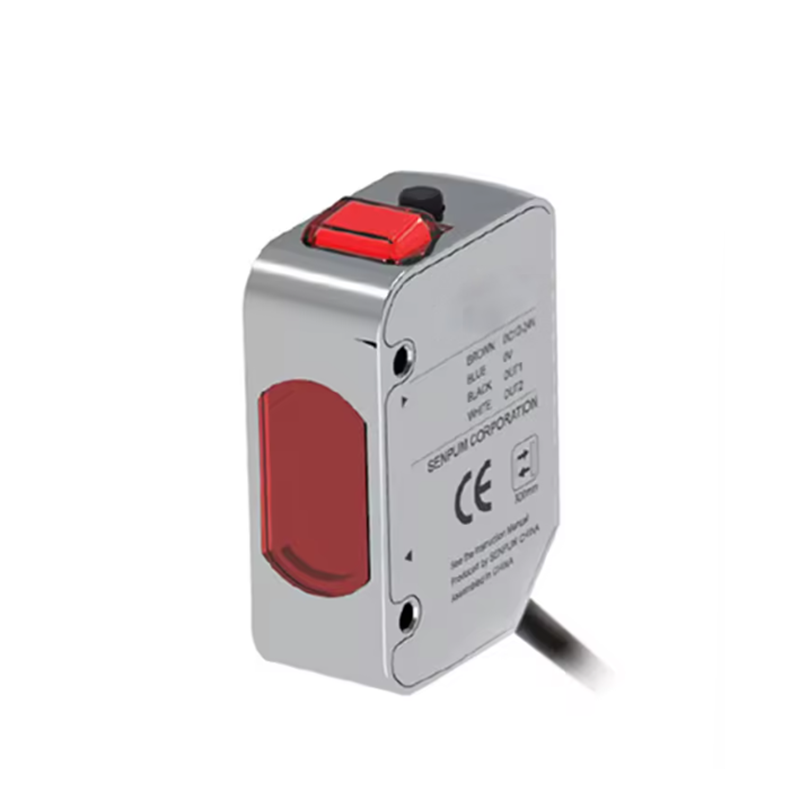

| Series / Model | LA2-ZB / LA2-ZB150CAP |
| Detection Range (Active Area) | 25–150 mm |
| Actual Detection Distance | 25–150 mm |
| Wavelength | 650 nm |
| Spot Size | Approx. 1 × 2 mm at 100 mm |
| Response Time | 2 ms / 10 ms / 50 ms selectable |
| Output Mode | LIGHT-ON / DARK-ON |
| Supply Voltage | 12–30 VDC (10% ripple allowed) |
| Power Consumption | ≤ 550 mW (22 mA at 24 V / 42 mA at 12 V) |
| Housing Material | Aluminum alloy |
| Indicator Cover | PC |
| Display | Digital distance display |
| Mounting Type | Bracket mounting |
| Features | Color-independent, angle-independent detection, suitable for transparent objects |
| Applications | Counting, presence detection, cap detection, conveyor automation |
Products Pictures:
