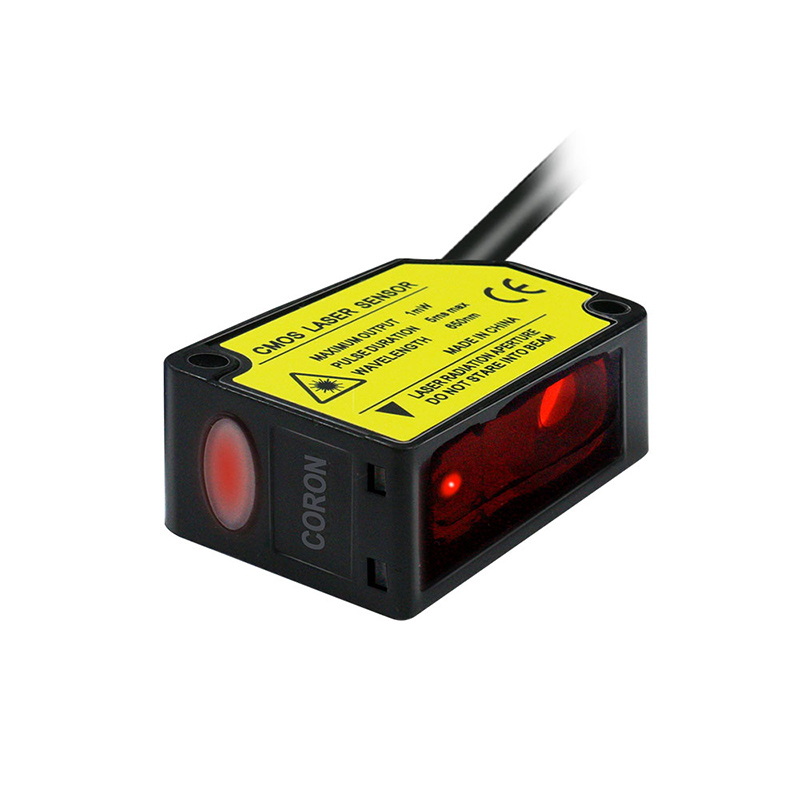

Machine Features:
• High-Precision Laser Triangulation
– Uses red semiconductor laser
– Spot as small as 0.05 mm for tiny object detection
– High-accuracy CMOS image sensor
• Multiple Measurement Ranges
– 25–35 mm / 35–65 mm / 65–135 mm / 120–280 mm / 200–600 mm
– Repeat precision as low as 10 μm
• Flexible Output Options
– Analog 0–5 V
– Analog 4–20 mA
– NPN / PNP switching output
– Menu-based mode switching

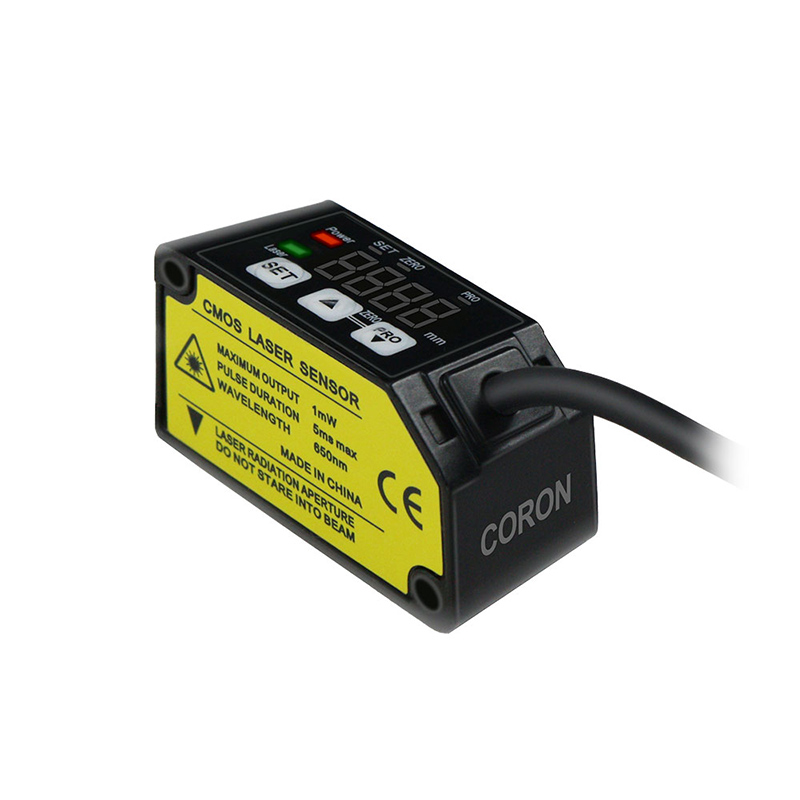

• Real-Time Digital Display
– Four-digit LED display
– Shows distance, set values, and threshold data
• Strong & Compact Structure
– Aluminum casting housing + acrylic front cover
– IP67 protection
– Suitable for harsh industrial environments
• Easy Setup & Teaching Mode
– Simple threshold and output mode configuration
– Supports normally open / normally closed settings
• Wide Application
– Position measurement, displacement, vibration, thickness, diameter, geometric detection
– Ideal for automation lines and precision inspection
Products Specification:

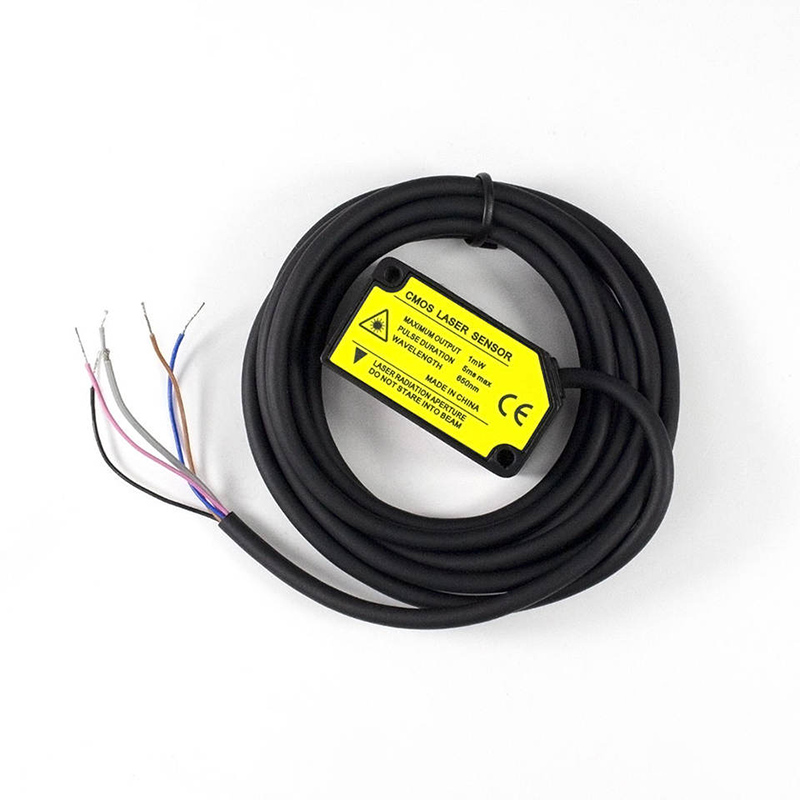

| Category | Details |
| Type | Laser reflective displacement sensor |
| Detection Ranges | 25–35 mm / 35–65 mm / 65–135 mm / 120–280 mm / 200–600 mm |
| Repeat Precision | 10 μm / 50 μm / 100 μm / 200 μm / 400 μm / 800 μm |
| Linearity | ±0.1%F.S / ±0.2%F.S |
| Temperature Characteristic | 0.03%F.S/°C |
| Laser Source | Red laser diode, 655 nm, Class 2, 1 mW max |
| Spot Diameter | 50–500 μm (range dependent) |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | <40 mA at 24 V / <60 mA at 12 V |
| Response Time | 1.5 ms / 5 ms / 10 ms (switchable) |
| Analog Output | 0–5 VDC, 4–20 mA |
| Digital Output | NPN / PNP, 50 mA max |
| External Input | NPN contactless input |
| Adjusting Mode | Teaching mode with threshold setting |
| Display | 4-digit LED digital display |
| Protection Features | Overload, short-circuit, reverse-polarity protection |
| Operating Temperature | −10 to +40°C |
| Storage Temperature | −20 to +60°C |
| Humidity | 35–85% RH (operation), 35–95% RH (storage) |
| Housing Material | Aluminum casting body, acrylic cover plate |
| Cable | 5-core composite cable, 2 m |
| Protection Level | IP67 |
| Dimensions | 100 × 100 × 432 mm |
| Weight | 11 kg |
