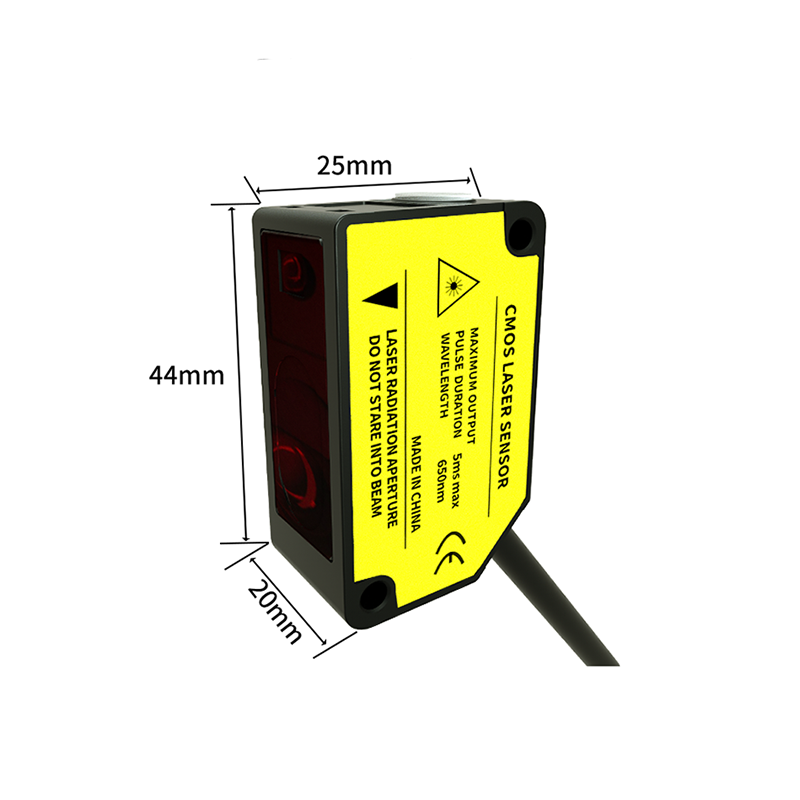

High accuracy laser triangulation displacement sensor with 30 mm measuring distance and compact structure

Sensor used for substrate warpage detection, lead frame overlap inspection and gasket presence detection

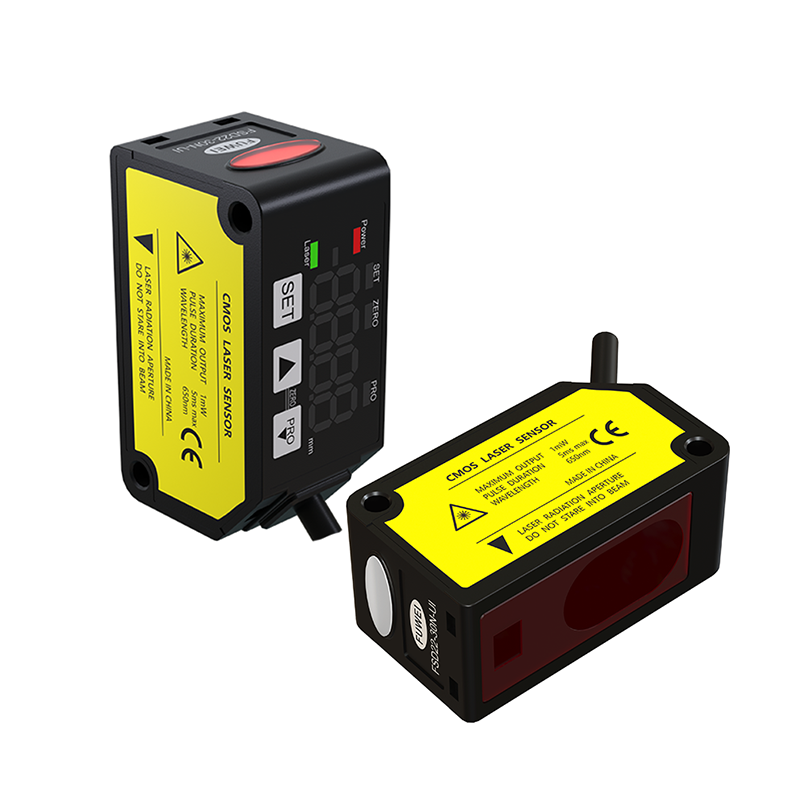

High Accuracy 0.01mm PNP Output Laser Triangulation Displacement Sensor 30mm Measuring Distance

This high-accuracy laser triangulation displacement sensor is designed for precise measurement, positioning, and detection tasks in industrial automation. Using a high-precision CMOS image sensor combined with an optimized processing algorithm, it achieves repeat accuracy as fine as 5 µm and a beam diameter of only 120 µm, ensuring stable measurement of small or complex targets. With a 30 mm center measuring distance, ±35 mm range, and PNP output, the sensor integrates easily into automated equipment for applications such as flatness detection, electronic component inspection, alignment, and presence detection. Its compact structure and 10–30 VDC power compatibility make it suitable for a wide range of industrial environments.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

• High-Accuracy Laser Triangulation

– Repeat accuracy up to 5 μm

– 0.01 mm resolution for precise displacement measurement

– High-precision CMOS image sensor with optimized algorithm

• Compact & Fine Spot Measurement

– 120 μm laser spot for small-object and micro-feature detection

– Ideal for electronics, precision manufacturing, SMT processes

• Wide Measurement Range

– Measurement center distance: 30 mm

– Range: ±35 mm

– Suitable for static & dynamic measurement tasks

• Stable PNP Output

– Supports standard industrial PNP output

– Easy integration into PLCs and automation controllers

• Durable Optical Sensor Structure

– Designed for continuous operation in industrial environments

– Consistent performance for long-term production lines

• Suitable for Multiple Detection Scenarios

– Substrate warpage detection

– Lead frame overlap inspection

– Electronic housing front/back judgment

– Gasket presence/absence detection

Products Specification:

Category	Details
Type	Optical laser triangulation displacement sensor
Series / Model	FSD22 / FSD22-30P-UI
Measurement Center Distance	30 mm
Measurement Range	±35 mm
Full Scale (F.S.)	10 mm
Linearity	±0.3% F.S.
Repeatability	100 μm
Repeat Accuracy	5 μm
Beam Diameter	120 μm
Sensor Technology	High-precision CMOS image sensor
Output Type	PNP
Supply Voltage	10–30 VDC
Power Consumption	Standard low-power design
Theory	Laser triangulation principle
Application	Distance measurement, displacement, flatness detection, presence detection
