Machine Features:
• High-Precision Inline Measurement
– Measuring accuracy up to ±(0.002 + 0.02%D)
– Suitable for wire and cable diameters from 0.2–16 mm
• High-Speed Scanning
– 1800 scans per second ensures stable measurement at high line speeds
– Excellent dynamic performance for extrusion lines
• Integrated Measurement & Control
– Measurement, display and control combined in one unit
– Supports RS-485 communication for industrial system integration
• Flexible Installation Options
– Can be mounted before or after the cooling trough
– Supports real-time process feedback or post-cooling final diameter verification
• Durable & Reliable Structure
– Long service life with stable infrared + CCD sensing
– Resistant to humidity up to 90% (non-condensing)
• Adjustable Center Height
– 850–1100 mm adjustable for easy line integration
– Compact design saves installation space
• Low Power Consumption
– Less than 10 W operating power
– Suitable for continuous 24/7 industrial production
Products Specification:
| Category | Details |
| Model | DDM-3020 |
| Effective Measuring Range | Max 20 mm |
| Recommended Measuring Range | 0.2–16 mm |
| Measuring Accuracy | ±(0.002 + 0.02%D) |
| Scan Rate | 1800 times/s |
| Power Supply | AC100–240 V, 50–60 Hz |
| Power Consumption | < 10 W |
| Operating Temperature | 5–45°C |
| Relative Humidity | ≤90% (non-condensing) |
| Interface | RS-485 |
| Center Height | 850–1100 mm adjustable |
| Dimensions | 100 × 100 × 432 mm |
| Weight | 11 kg |
| Peripheral Communication | Communication connector included |

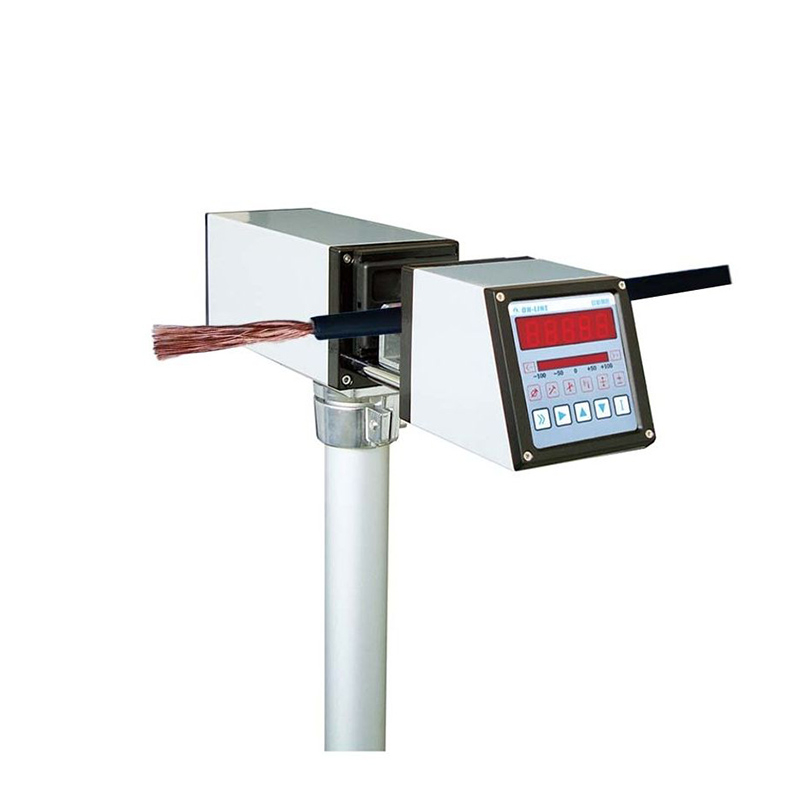

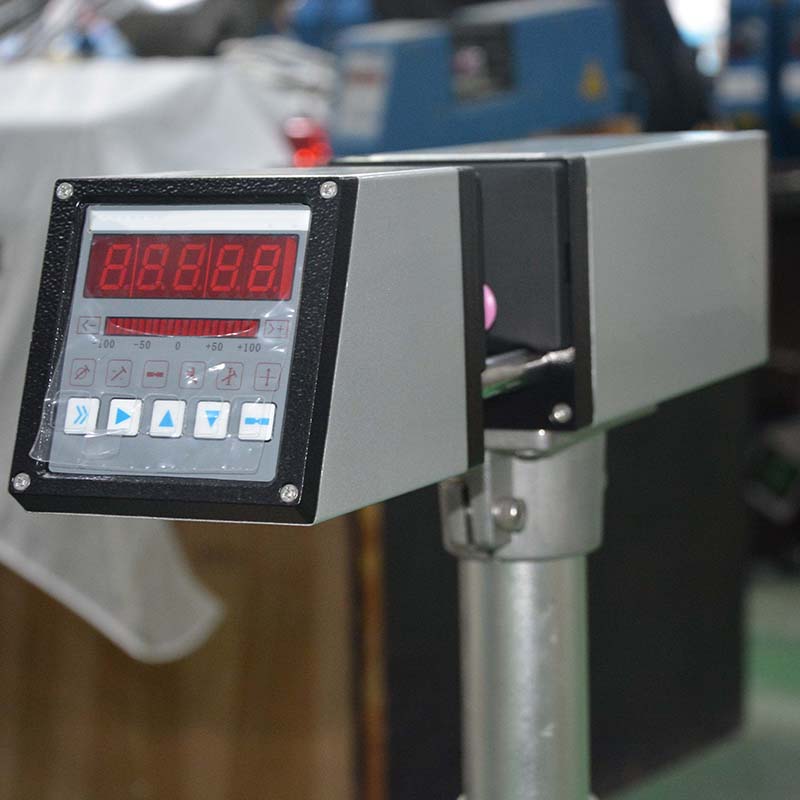

Products Pictures:
