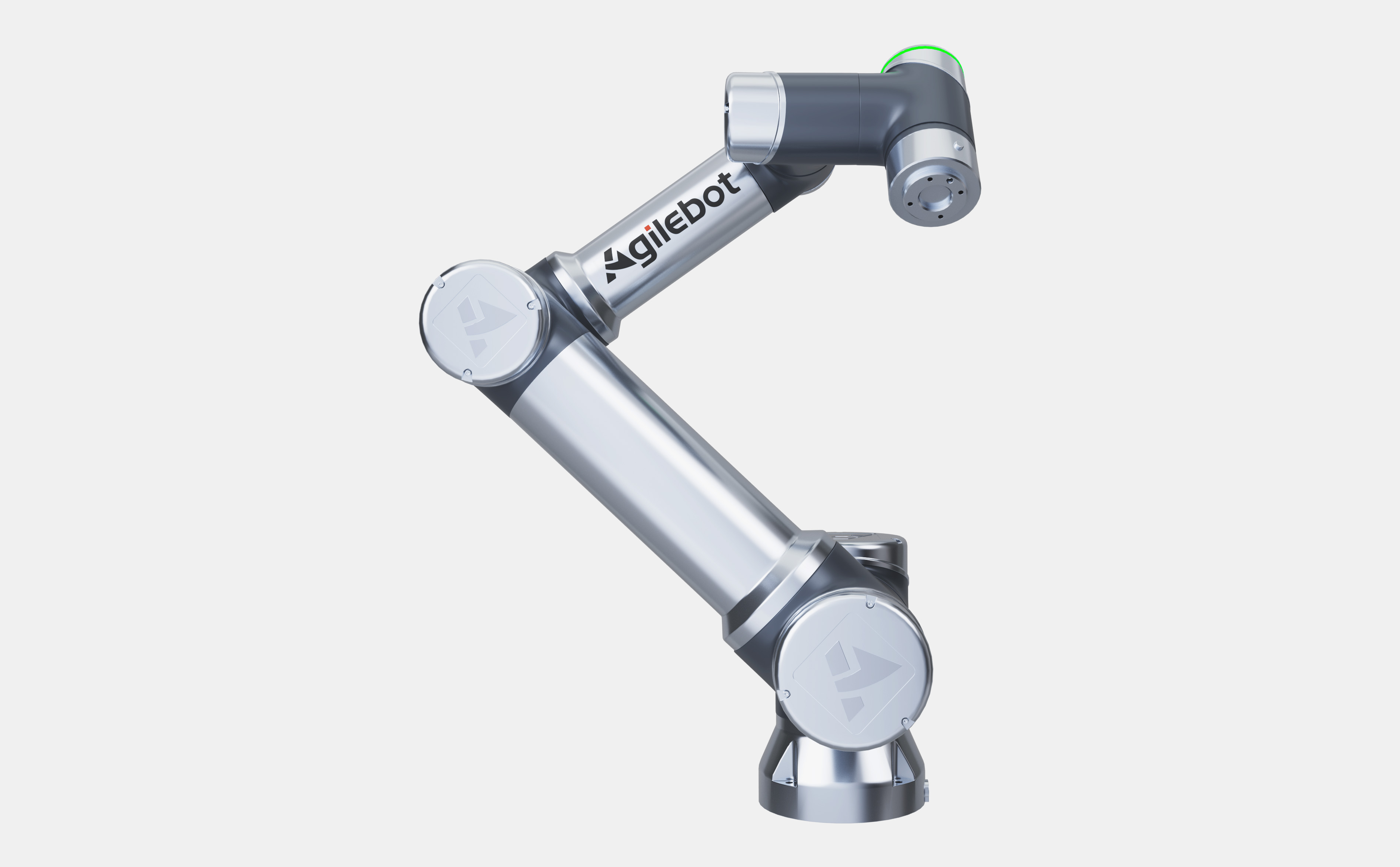

GBT-C16A

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Green hollow reducer
Integrated shaft customization
Integrated encoder
Lightweight, modular modules, excellent performance
Tamagawa frameless torque motor
Compact, lightweight, and high torque characteristics
SKU:
Availability:
Quantity:
Inquire Add to Basket
ParameterValue
Degrees of Freedom6
Working Radius980mm
Effective Load16kg
Protection LevelIP67
Cleanliness Class (ISO 14644)Class 4
Installation MethodInstallation at Any Angle
Teaching MethodPC, Mobile Terminals (PAD/ Mobile Phone)
ParameterDetails
Joint Movement RangeJ1: 720° (- 360° / +360°)
J2: 720° (- 360° / +360°)
J3: 720° (- 360° / +360°)
J4: 720° (- 360° / +360°)
J5: 720° (- 360° / +360°)
J6: 720° (- 360° / +360°)
Maximum Joint SpeedJ1: 120°/s
J2: 120°/s
J3: 150°/s
J4: 180°/s
J5: 180°/s
J6: 180°/s
Maximum TCP Speed2.5m/s
Position Repeatability Accuracy0.03mm


Previous:
Next:
GBT-C16A
KEEP IN TOUCH WITH US
Leave a Message
KEEP IN TOUCH WITH US

Related Products

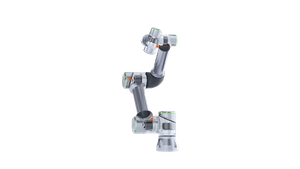

GBT-C5A
