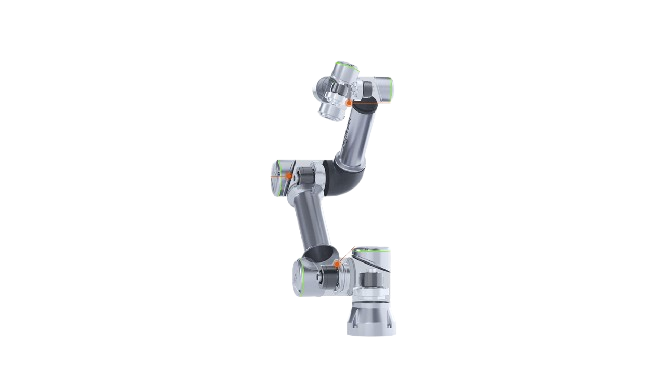

GBT-C5A

Precision: Position repeatability of 0.02 mm
Multi purpose: The body protection level is IP67, which can be applied to harsh production environments
Easy to use: Supports drag and drop teaching, with advanced drag functionality, lightweight design and easy deployment

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Parameter	Value
Degrees of Freedom	6
Working Radius	933mm
Effective Load	5kg
Protection Level	IP67
Cleanliness Class (ISO 14644)	Class 4
Installation Method	Installation at Any Angle
Teaching Method	PC, Mobile Terminals (PAD/ Mobile Phone)

Parameter	Details
Joint Movement Range	J1: 720° (- 360° / +360°) J2: 720° (- 360° / +360°) J3: 720° (- 360° / +360°) J4: 720° (- 360° / +360°) J5: 720° (- 360° / +360°) J6: 720° (- 360° / +360°)
Maximum Joint Speed	J1: 180°/s J2: 180°/s J3: 180°/s J4: 180°/s J5: 180°/s J6: 180°/s
Maximum TCP Speed	3m/s
Position Repeatability Accuracy	0.02mm

GBT-C5A

Leave a Message

Related Products

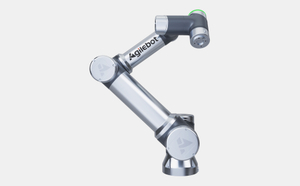

GBT-C16A
