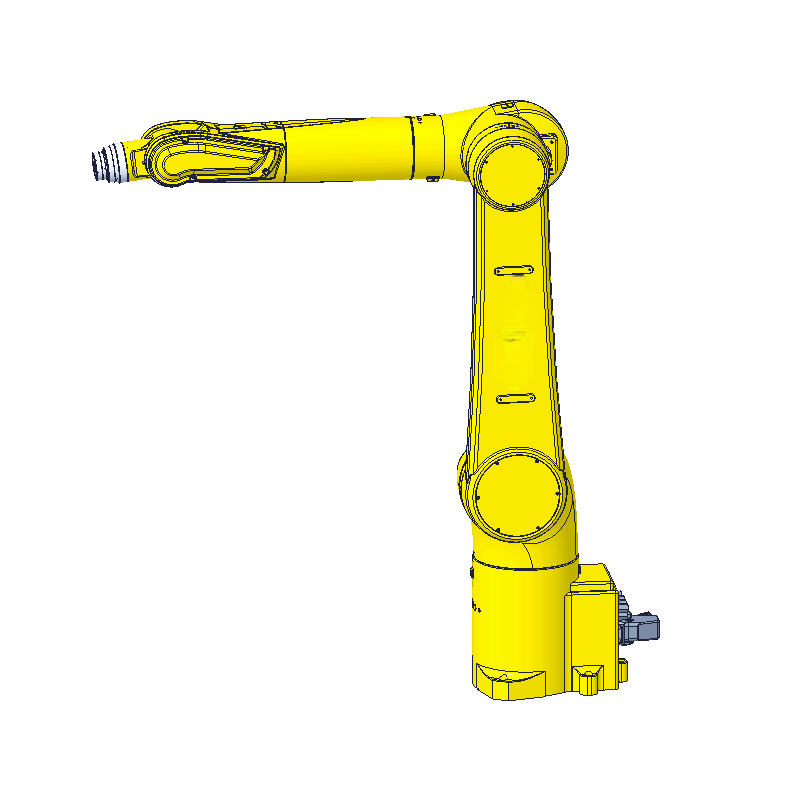

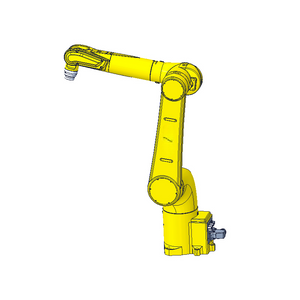

HL-YR1498
HL-YR1498 HL-YR1498

loading

HL-YR1498

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
number of axles：6(axe)
structural style:series connection
rated load:6KG-10KG
repeatability:0.05mm
Activity radius:998mm/1280mm/1498mm
SKU:
Availability:
Quantity:
Inquire Add to Basket
ParameterDetails
ModelHL - YR1498
Number of Axles6 - axis
Structural StyleSeries Connection
Rated Load6KG - 10KG
Repeatability±0.05mm
Activity Radius998mm/1280mm/1498mm
Maximum Operating RangeA1 - axis: ±180°
A2 - axis: ±120°
A3 - axis: +75° - 155°
A4 - axis: ±180°
A5 - axis: ±115°
A6 - axis: ±360°
Maximum SpeedA1 - axis: 221°/sec
A2 - axis: 148°/sec
A3 - axis: 222°/sec
A4 - axis: 225°/sec
A5 - axis: 225°/sec
A6 - axis: 360°/sec
Ambient Temperature-0°C ~ 40°C
Body Weight≈90KG - 138KG
Installation MethodGround installation, bracket installation, inverted installation
