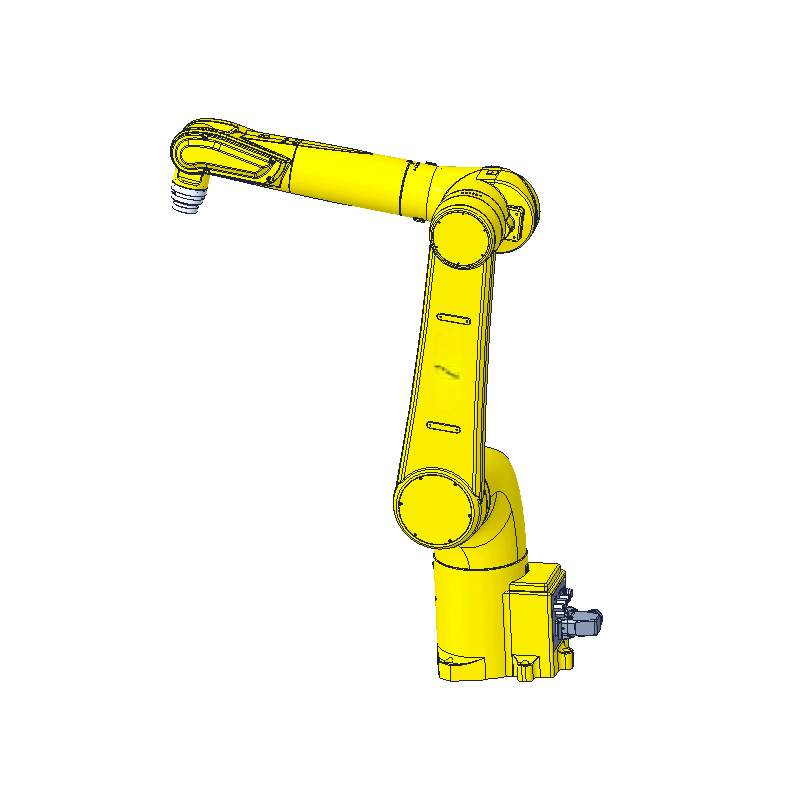

HL-YR1998
HL-YR1998 HL-YR1998

loading

HL-YR1998

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
number of axles：6(axe)
structural style:series connection
rated load:10KG-10KG
repeatability:0.08mm
Activity radius:1498mm/1798mm/1998mm
SKU:
Availability:
Quantity:
Inquire Add to Basket
arameterDetails
ModelHL - YR1998
Number of Axles6 - axis
Structural StyleSeries Connection
Rated Load10KG - 20KG
Repeatability±0.08mm
Activity Radius1498mm/1798mm/1998mm
Maximum Operating RangeA1 - axis: ±180°
A2 - axis: ±120°
A3 - axis: 75° - 155°
A4 - axis: ±180°
A5 - axis: ±115°
A6 - axis: ±360°
Maximum SpeedA1 - axis: 148°/sec
A2 - axis: 148°/sec
A3 - axis: 148°/sec
A4 - axis: 225°/sec
A5 - axis: 225°/sec
A6 - axis: 360°/sec
Ambient Temperature-0°C ~ 40°C
Body Weight≈138KG - 268KG
Installation MethodGround installation, bracket installation, inverted installation
