Square Model
| Model | GMC-3028F | GMC-4028F | GMC-5028F | GMC-6028F | GMC-4033F | ||
| Project | Specification | Unit | |||||
| Stroke | X-axis stroke | mm | 3000 | 4000 | 5000 | 6000 | 4000 |
| Y-axis stroke | mm | 3000 | 3000 | 3000 | 3000 | 3500 | |
| Z-axis stroke | mm | 1100 | 1100 | 1100 | 1100 | 1100 | |
| Distance from spindle center to guide surface | mm | 200-1300 | 200-1300 | 200-1300 | 200-1300 | 200-1300 | |
| Guide type | / | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | |
| Gantry width | mm | 2800 | 2800 | 2800 | 2800 | 3300 | |
| Ram cross-section dimensions | mm | Square ram 450×450 | Square ram 450×450 | Square ram 450×450 | Square ram 450×450 | Square ram 450×450 | |
| Workbench | Table size L*W | mm | 3000×2000 | 4000×2000 | 5000×2000 | 6000×2000 | 4000×2500 |
| Table load bearing | t | 12 | 16 | 20 | 22 | 20 | |
| T-slot | no/mm | 9-28×200 | 9-28×200 | 9-28×200 | 9-28×200 | 9-28×200 +4-28×160 | |
| Spindle | Spindle taper | type | BT50 | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Direct spindle | Direct spindle | Direct spindle | Direct spindle | Direct spindle | |
| Feed | X/Y/Z axis rapid feed | m/min | 12/15/10 | 10/15/10 | 8/15/10 | 8/15/10 | 10/12/10 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | 10 | |
| Tool Changing Device | / | / | Optional 24T/30T/40T/60T | ||||
| motor | Spindle motor (motor) | Nm | 143/236 | 140/166 | 140/166 | 140/166 | 140/166 |
| Three-axis servo motor X/Y/Z | Nm | 36/36/36 | 38/30/30 | 38/30/30 | 38/30/30 | 38/30/30 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.020/0.015/0.012 | 0.025/0.015/0.012 | 0.030/0.015/0.012 | 0.035/0.015/0.012 | 0.025/0.015/0.012 |
| Repeat accuracy | mm | 0.015/0.012/0.010 | 0.018/0.012/0.010 | 0.020/0.012/0.010 | 0.020/0.012/0.010 | 0.018/0.012/0.010 | |
| Power requirements | Electricity requirements | kva | 25 | 40 | 40 | 40 | 40 |
| Air pressure requirements | kg/cm² | 6～8 | 6～8 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 8500×5000×4750 | 11000×5000×4750 | 13000×5000×4750 | 5000×5000×4750 | 11000×5500×4750 |
| Machine weight | t | 40 | 50 | 55 | 60 | 55 | |
| Model | GMC-5033F | GMC-6033F | GMC-8033F | GMC-6042F | GMC-8042F | ||
| Project | Specification | Unit | |||||
| Stroke | X-axis stroke | mm | 5000 | 6000 | 8000 | 6200 | 8200 |
| Y-axis stroke | mm | 3500 | 3500 | 3500 | 4500 | 4500 | |
| Z-axis stroke | mm | 1100 | 1100 | 1100 | 1300 | 1300 | |
| Distance from spindle center to guide surface | mm | 200-1300 | 200-1300 | 200-1300 | 400-1700 | 400-1700 | |
| Guide type | / | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | |
| Gantry width | mm | 3300 | 3300 | 3300 | 4200 | 4200 | |
| Ram cross-section dimensions | mm | Square ram 450×450 | Square ram 450×450 | Square ram 450×450 | Square ram 500×500 | Square ram 500×500 | |
| Workbench | Table size L*W | mm | 5000×2500 | 6000×2500 | 8000×2500 | 6000×3000 | 8000×3000 |
| Table load bearing | t | 25 | 30 | 35 | 35 | 40 | |
| T-slot | no/mm | 9-28×200 +4-28×160 | 9-28×200 +4-28×160 | 9-28×200 +4-28×160 | 15-28×200 | 15-28×200 | |
| Spindle | Spindle taper | type | BT50 | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Direct spindle | Direct spindle | Direct spindle | Direct spindle | Direct spindle | |
| Feed | X/Y/Z axis rapid feed | m/min | 8/12/10 | 8/12/10 | 6/12/10 | 8/10/10 | 6/10/10 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | 10 | |
| Tool Changing Device | / | / | Optional 24T/30T/40T/60T | ||||
| motor | Spindle motor (motor) | Nm | 140/166 | 140/166 | 140/166 | 249/307 | 249/307 |
| Three-axis servo motor X/Y/Z | Nm | 38/30/30 | 38/30/30 | 38/30/30 | 38/38/38 | 53/38/38 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.030/0.015/0.012 | 0.035/0.015/0.012 | 0.040/0.015/0.012 | 0.035/0.020/0.015 | 0.040/0.020/0.015 |
| Repeat accuracy | mm | 0.020/0.012/0.010 | 0.020/0.012/0.010 | 0.025/0.012/0.010 | 0.020/0.015/0.012 | 0.025/0.015/0.012 | |
| Power requirements | Electricity requirements | kva | 40 | 40 | 40 | 40 | 40 |
| Air pressure requirements | kg/cm² | 6～8 | 6～8 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 3000×5500×4750 | 15000×5500×4750 | 19000×5500×4750 | 15500×6000×5200 | 20000×6000×5200 |
| Machine weight | t | 60 | 70 | 90 | 90 | 110 | |
T Model：
| Model | GMC-1714S | GMC-2014S | GMC-2016S | GMC-2516S | ||
| Project | Specification | Unit | ||||
| Stroke | X-axis stroke | mm | 1650 | 2000 | 2000 | 2500 |
| Y-axis stroke | mm | 1400 | 1400 | 1600 | 1600 | |
| Z-axis stroke | mm | 700 | 800 | 800 | 800 | |
| Distance from spindle center to guide surface | mm | 150-850 | 60-860 | 250-1050 | 250-1050 | |
| Guide type | / | XYZ:Heavy-duty roller rails | XZ: Heavy-duty roller rails Y: Rectangular rails | XZ: Heavy-duty roller rails Y: Rectangular rails | XZ: Heavy-duty roller rails Y: Rectangular rails | |
| Gantry width | mm | 1420 | 1400 | 1660 | 1660 | |
| Workbench | Table size L*W | mm | 1700×1200 | 2000×1000 | 2000×1300 | 2500×1300 |
| Table load bearing | t | 3 | 3 | 4 | 5 | |
| T-slot | no/mm | 7-22×157.5 | 7-22×150 | 7-22×170 | 7-22×170 | |
| Spindle | Spindle taper | type | BT40 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 12000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Direct spindle | Belt spindle | Belt spindle | Belt spindle | |
| feed | X/Y/Z axis rapid feed | m/min | 20/20/15 | 10/15/10 | 20/15/15 | 15/15/15 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | |
| Tool Changing Device | / | / | Optional 24T/30T/40T/60T | |||
| motor | Spindle motor (motor) | Nm | 52.5/95 | 143/236 | 143/236 | 143/236 |
| Three-axis servo motor X/Y/Z | Nm | 27/27/27 | 36/36/36 | 36/36/36 | 36/36/36 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.020/0.012/0.010 | 0.020/0.012/0.010 | 0.020/0.015/0.010 | 0.020/0.015/0.010 |
| Repeat accuracy | mm | 0.015/0.010/0.008 | 0.015/0.010/0.008 | 0.015/0.012/0.008 | 0.015/0.012/0.008 | |
| Power requirements | Electricity requirements | kva | 25 | 25 | 25 | 25 |
| Air pressure requirements | kg/cm² | 6～8 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 4800×3200×3200 | 5500×3500×4000 | 6000×3700×4000 | 6600×3700×4000 |
| Machine weight | t | 15 | 18 | 21 | ||
| Model | GMC-3016S | GMC-2519S | GMC-3019S | GMC-4019S | ||
| Project | Specification | Unit | ||||
| Stroke | X-axis stroke | mm | 3000 | 2700 | 3000 | 4000 |
| Y-axis stroke | mm | 1600 | 2000 | 2000 | 2000 | |
| Z-axis stroke | mm | 800 | 1000 | 1000 | 1000 | |
| Distance from spindle center to guide surface | mm | 250-1050 | 200-1200 | 200-1200 | 200-1200 | |
| Guide type | / | XZ: Heavy-duty roller rails Y: Rectangular rails | XZ: Heavy-duty roller rails Y: Rectangular rails | XZ: Heavy-duty roller rails Y: Rectangular rails | XZ: Heavy-duty roller rails Y: Rectangular rails | |
| Gantry width | mm | 1660 | 1910 | 1910 | 1910 | |
| Workbench | Table size L*W | mm | 3000×1300 | 2700×1600 | 3000×1600 | 4000×1600 |
| Table load bearing | t | 6 | 8 | 9 | 10 | |
| T-slot | no/mm | 7-22×170 | 9-22×180 | 9-22×180 | 9-22×180 | |
| Spindle | Spindle taper | type | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Belt spindle | Belt spindle | Belt spindle | Belt spindle | |
| feed | X/Y/Z axis rapid feed | m/min | 12/15/15 | 15/15/15 | 12/15/15 | 10/15/15 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | |
| Tool Changing Device | / | / | Optional 24T/30T/40T/60T | |||
| motor | Spindle motor (motor) | Nm | 143/236 | 143/236 | 143/236 | 143/236 |
| Three-axis servo motor X/Y/Z | Nm | 36/36/36 | 36/36/36 | 36/36/36 | 36/36/36 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.022/0.015/0.010 | 0.020/0.015/0.010 | 0.020/0.015/0.010 | 0.020/0.015/0.010 |
| Repeat accuracy | mm | 0.018/0.012/0.008 | 0.015/0.012/0.008 | 0.015/0.012/0.008 | 0.018/0.012/0.008 | |
| Power requirements | Electricity requirements | kva | 25 | 25 | 25 | 25 |
| Air pressure requirements | kg/cm² | 6～8 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 7600×3700×4000 | 7000×4000×4100 | 7700×4000×4100 | 9700×4000×4100 |
| Machine weight | t | 25 | 26 | 28 | 32 | |
Products Features
1: T-type ram series; The overall rigidity is strong, with strong cutting ability and stable accuracy.
2: Square ram structure, using tight four-sided restraint quenching guide; Adopts double cylinder nitrogen balancing device; The overall rigidity is strong, with strong cutting ability and stable accuracy.
3: Pentahedral gantry machining center
4: Automatic right Angle head, automatic grab head, system control automatic rotation, hydraulic gear plate automatic locking positioning, with vertical horizontal knife library can achieve automatic tool change. Long service life, small backlash clearance.
5: ZF two-speed gear box, the design of the machine requires versatility and can be used to process a variety of materials. Therefore, both high-speed cutting is needed to process flexible materials, and high cutting force is needed to process hard materials, and the two-speed gearbox can fully meet this requirement.
6: The gantry series is upgraded from the conventional fixed beam gantry machining center to the direction of the square ram gantry machining center and the pentahedral gantry machining center.
Standard Fittings
Rigid tapping, dual working light, spindle nose end labyrinth dust blowing, foundation screws and pads, automatic oil lubrication system, air conditioning, three-color warning light, chain iron chip conveyor and collection bucket, half hood sealing sheet metal, strong double helix iron chip winder.
Optional Parts
Grating ruler, tool breakage detector, spray cooling system, 40T tool library, spindle center outlet system, rotary table (fourth axis), side milling head, automatic tool setting instrument.
Products Pictures
Square Model
| Model | GMC-3028F | GMC-4028F | GMC-5028F | GMC-6028F | GMC-4033F | ||
| Project | Specification | Unit | |||||
| Stroke | X-axis stroke | mm | 3000 | 4000 | 5000 | 6000 | 4000 |
| Y-axis stroke | mm | 3000 | 3000 | 3000 | 3000 | 3500 | |
| Z-axis stroke | mm | 1100 | 1100 | 1100 | 1100 | 1100 | |
| Distance from spindle center to guide surface | mm | 200-1300 | 200-1300 | 200-1300 | 200-1300 | 200-1300 | |
| Guide type | / | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | |
| Gantry width | mm | 2800 | 2800 | 2800 | 2800 | 3300 | |
| Ram cross-section dimensions | mm | Square ram 450×450 | Square ram 450×450 | Square ram 450×450 | Square ram 450×450 | Square ram 450×450 | |
| Workbench | Table size L*W | mm | 3000×2000 | 4000×2000 | 5000×2000 | 6000×2000 | 4000×2500 |
| Table load bearing | t | 12 | 16 | 20 | 22 | 20 | |
| T-slot | no/mm | 9-28×200 | 9-28×200 | 9-28×200 | 9-28×200 | 9-28×200 +4-28×160 | |
| Spindle | Spindle taper | type | BT50 | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Direct spindle | Direct spindle | Direct spindle | Direct spindle | Direct spindle | |
| Feed | X/Y/Z axis rapid feed | m/min | 12/15/10 | 10/15/10 | 8/15/10 | 8/15/10 | 10/12/10 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | 10 | |
| Tool Changing Device | / | / | Optional 24T/30T/40T/60T | ||||
| motor | Spindle motor (motor) | Nm | 143/236 | 140/166 | 140/166 | 140/166 | 140/166 |
| Three-axis servo motor X/Y/Z | Nm | 36/36/36 | 38/30/30 | 38/30/30 | 38/30/30 | 38/30/30 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.020/0.015/0.012 | 0.025/0.015/0.012 | 0.030/0.015/0.012 | 0.035/0.015/0.012 | 0.025/0.015/0.012 |
| Repeat accuracy | mm | 0.015/0.012/0.010 | 0.018/0.012/0.010 | 0.020/0.012/0.010 | 0.020/0.012/0.010 | 0.018/0.012/0.010 | |
| Power requirements | Electricity requirements | kva | 25 | 40 | 40 | 40 | 40 |
| Air pressure requirements | kg/cm² | 6～8 | 6～8 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 8500×5000×4750 | 11000×5000×4750 | 13000×5000×4750 | 5000×5000×4750 | 11000×5500×4750 |
| Machine weight | t | 40 | 50 | 55 | 60 | 55 | |
| Model | GMC-5033F | GMC-6033F | GMC-8033F | GMC-6042F | GMC-8042F | ||
| Project | Specification | Unit | |||||
| Stroke | X-axis stroke | mm | 5000 | 6000 | 8000 | 6200 | 8200 |
| Y-axis stroke | mm | 3500 | 3500 | 3500 | 4500 | 4500 | |
| Z-axis stroke | mm | 1100 | 1100 | 1100 | 1300 | 1300 | |
| Distance from spindle center to guide surface | mm | 200-1300 | 200-1300 | 200-1300 | 400-1700 | 400-1700 | |
| Guide type | / | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | XY: Heavy-duty roller rails Z: Square slide | |
| Gantry width | mm | 3300 | 3300 | 3300 | 4200 | 4200 | |
| Ram cross-section dimensions | mm | Square ram 450×450 | Square ram 450×450 | Square ram 450×450 | Square ram 500×500 | Square ram 500×500 | |
| Workbench | Table size L*W | mm | 5000×2500 | 6000×2500 | 8000×2500 | 6000×3000 | 8000×3000 |
| Table load bearing | t | 25 | 30 | 35 | 35 | 40 | |
| T-slot | no/mm | 9-28×200 +4-28×160 | 9-28×200 +4-28×160 | 9-28×200 +4-28×160 | 15-28×200 | 15-28×200 | |
| Spindle | Spindle taper | type | BT50 | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Direct spindle | Direct spindle | Direct spindle | Direct spindle | Direct spindle | |
| Feed | X/Y/Z axis rapid feed | m/min | 8/12/10 | 8/12/10 | 6/12/10 | 8/10/10 | 6/10/10 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | 10 | |
| Tool Changing Device | / | / | Optional 24T/30T/40T/60T | ||||
| motor | Spindle motor (motor) | Nm | 140/166 | 140/166 | 140/166 | 249/307 | 249/307 |
| Three-axis servo motor X/Y/Z | Nm | 38/30/30 | 38/30/30 | 38/30/30 | 38/38/38 | 53/38/38 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.030/0.015/0.012 | 0.035/0.015/0.012 | 0.040/0.015/0.012 | 0.035/0.020/0.015 | 0.040/0.020/0.015 |
| Repeat accuracy | mm | 0.020/0.012/0.010 | 0.020/0.012/0.010 | 0.025/0.012/0.010 | 0.020/0.015/0.012 | 0.025/0.015/0.012 | |
| Power requirements | Electricity requirements | kva | 40 | 40 | 40 | 40 | 40 |
| Air pressure requirements | kg/cm² | 6～8 | 6～8 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 3000×5500×4750 | 15000×5500×4750 | 19000×5500×4750 | 15500×6000×5200 | 20000×6000×5200 |
| Machine weight | t | 60 | 70 | 90 | 90 | 110 | |
T Model：
| Model | GMC-1714S | GMC-2014S | GMC-2016S | GMC-2516S | ||
| Project | Specification | Unit | ||||
| Stroke | X-axis stroke | mm | 1650 | 2000 | 2000 | 2500 |
| Y-axis stroke | mm | 1400 | 1400 | 1600 | 1600 | |
| Z-axis stroke | mm | 700 | 800 | 800 | 800 | |
| Distance from spindle center to guide surface | mm | 150-850 | 60-860 | 250-1050 | 250-1050 | |
| Guide type | / | XYZ:Heavy-duty roller rails | XZ: Heavy-duty roller rails Y: Rectangular rails | XZ: Heavy-duty roller rails Y: Rectangular rails | XZ: Heavy-duty roller rails Y: Rectangular rails | |
| Gantry width | mm | 1420 | 1400 | 1660 | 1660 | |
| Workbench | Table size L*W | mm | 1700×1200 | 2000×1000 | 2000×1300 | 2500×1300 |
| Table load bearing | t | 3 | 3 | 4 | 5 | |
| T-slot | no/mm | 7-22×157.5 | 7-22×150 | 7-22×170 | 7-22×170 | |
| Spindle | Spindle taper | type | BT40 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 12000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Direct spindle | Belt spindle | Belt spindle | Belt spindle | |
| feed | X/Y/Z axis rapid feed | m/min | 20/20/15 | 10/15/10 | 20/15/15 | 15/15/15 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | |
| Tool Changing Device | / | / | Optional 24T/30T/40T/60T | |||
| motor | Spindle motor (motor) | Nm | 52.5/95 | 143/236 | 143/236 | 143/236 |
| Three-axis servo motor X/Y/Z | Nm | 27/27/27 | 36/36/36 | 36/36/36 | 36/36/36 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.020/0.012/0.010 | 0.020/0.012/0.010 | 0.020/0.015/0.010 | 0.020/0.015/0.010 |
| Repeat accuracy | mm | 0.015/0.010/0.008 | 0.015/0.010/0.008 | 0.015/0.012/0.008 | 0.015/0.012/0.008 | |
| Power requirements | Electricity requirements | kva | 25 | 25 | 25 | 25 |
| Air pressure requirements | kg/cm² | 6～8 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 4800×3200×3200 | 5500×3500×4000 | 6000×3700×4000 | 6600×3700×4000 |
| Machine weight | t | 15 | 18 | 21 | ||
| Model | GMC-3016S | GMC-2519S | GMC-3019S | GMC-4019S | ||
| Project | Specification | Unit | ||||
| Stroke | X-axis stroke | mm | 3000 | 2700 | 3000 | 4000 |
| Y-axis stroke | mm | 1600 | 2000 | 2000 | 2000 | |
| Z-axis stroke | mm | 800 | 1000 | 1000 | 1000 | |
| Distance from spindle center to guide surface | mm | 250-1050 | 200-1200 | 200-1200 | 200-1200 | |
| Guide type | / | XZ: Heavy-duty roller rails Y: Rectangular rails | XZ: Heavy-duty roller rails Y: Rectangular rails | XZ: Heavy-duty roller rails Y: Rectangular rails | XZ: Heavy-duty roller rails Y: Rectangular rails | |
| Gantry width | mm | 1660 | 1910 | 1910 | 1910 | |
| Workbench | Table size L*W | mm | 3000×1300 | 2700×1600 | 3000×1600 | 4000×1600 |
| Table load bearing | t | 6 | 8 | 9 | 10 | |
| T-slot | no/mm | 7-22×170 | 9-22×180 | 9-22×180 | 9-22×180 | |
| Spindle | Spindle taper | type | BT50 | BT50 | BT50 | BT50 |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | |
| Spindle drive mode | / | Belt spindle | Belt spindle | Belt spindle | Belt spindle | |
| feed | X/Y/Z axis rapid feed | m/min | 12/15/15 | 15/15/15 | 12/15/15 | 10/15/15 |
| Maximum cutting feed | m/min | 10 | 10 | 10 | 10 | |
| Tool Changing Device | / | / | Optional 24T/30T/40T/60T | |||
| motor | Spindle motor (motor) | Nm | 143/236 | 143/236 | 143/236 | 143/236 |
| Three-axis servo motor X/Y/Z | Nm | 36/36/36 | 36/36/36 | 36/36/36 | 36/36/36 | |
| Accuracy standard (VDI German standard) | Positioning accuracy | mm | 0.022/0.015/0.010 | 0.020/0.015/0.010 | 0.020/0.015/0.010 | 0.020/0.015/0.010 |
| Repeat accuracy | mm | 0.018/0.012/0.008 | 0.015/0.012/0.008 | 0.015/0.012/0.008 | 0.018/0.012/0.008 | |
| Power requirements | Electricity requirements | kva | 25 | 25 | 25 | 25 |
| Air pressure requirements | kg/cm² | 6～8 | 6～8 | 6～8 | 6～8 | |
| Machine size | Length/width/height | mm | 7600×3700×4000 | 7000×4000×4100 | 7700×4000×4100 | 9700×4000×4100 |
| Machine weight | t | 25 | 26 | 28 | 32 | |
Products Features
1: T-type ram series; The overall rigidity is strong, with strong cutting ability and stable accuracy.
2: Square ram structure, using tight four-sided restraint quenching guide; Adopts double cylinder nitrogen balancing device; The overall rigidity is strong, with strong cutting ability and stable accuracy.

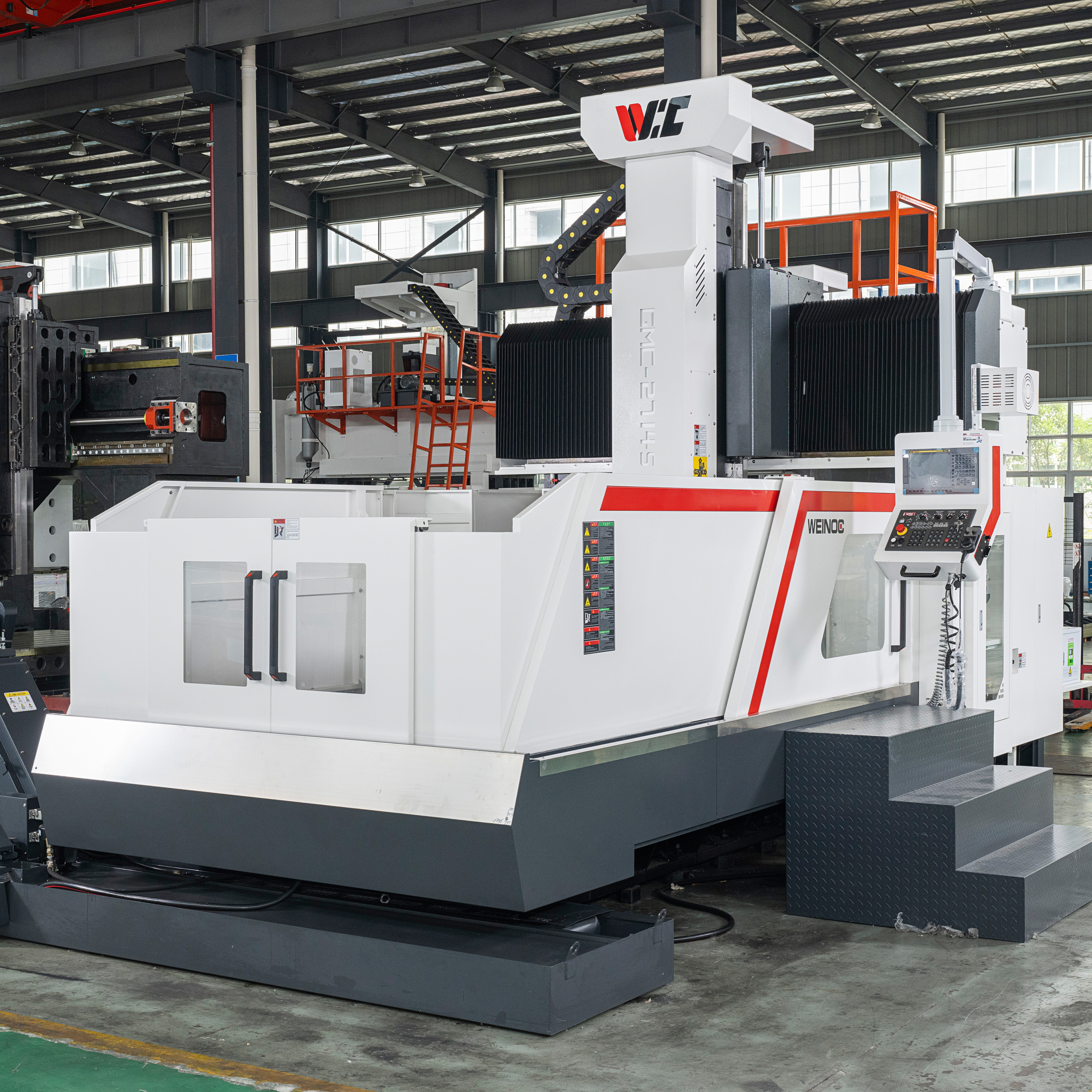

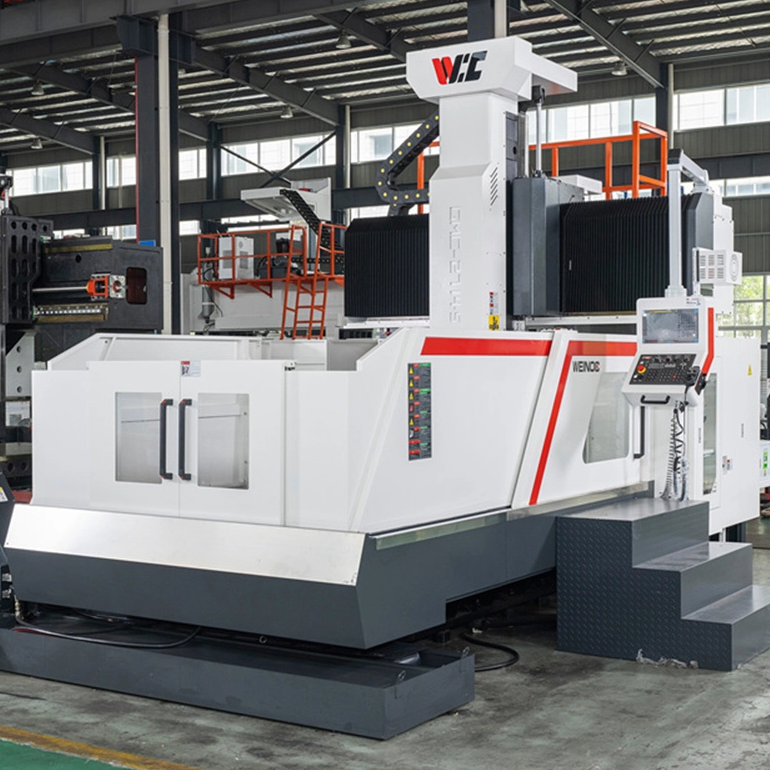

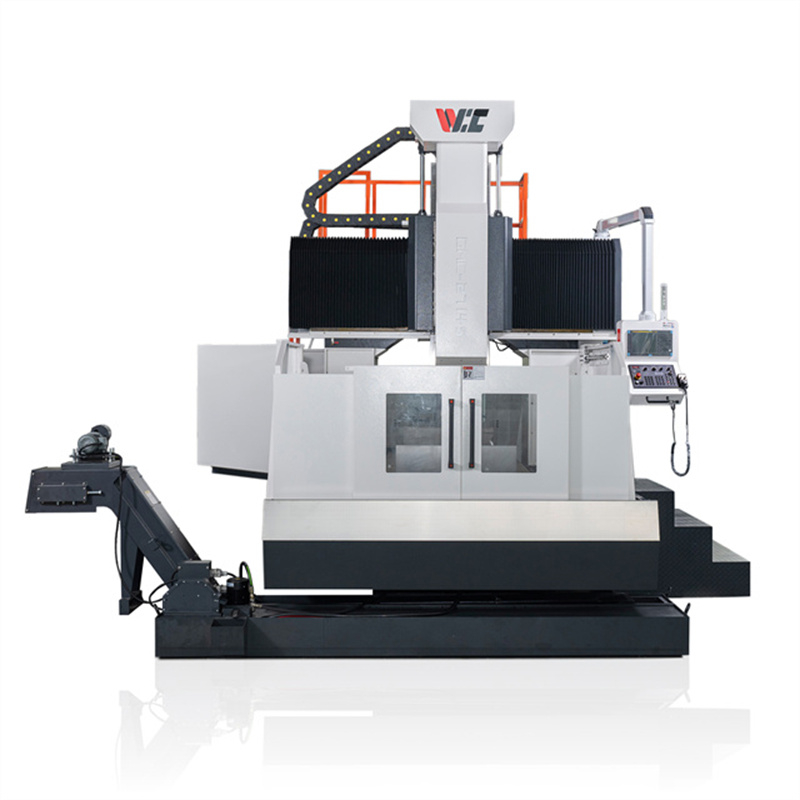

3: Pentahedral gantry machining center

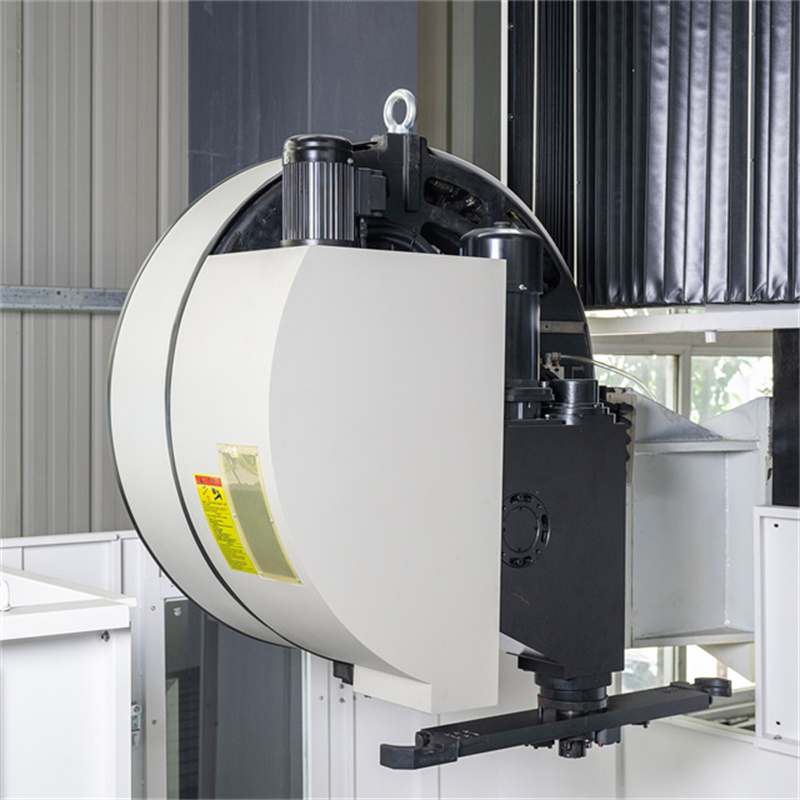

4: Automatic right Angle head, automatic grab head, system control automatic rotation, hydraulic gear plate automatic locking positioning, with vertical horizontal knife library can achieve automatic tool change. Long service life, small backlash clearance.
5: ZF two-speed gear box, the design of the machine requires versatility and can be used to process a variety of materials. Therefore, both high-speed cutting is needed to process flexible materials, and high cutting force is needed to process hard materials, and the two-speed gearbox can fully meet this requirement.
6: The gantry series is upgraded from the conventional fixed beam gantry machining center to the direction of the square ram gantry machining center and the pentahedral gantry machining center.
Standard Fittings
Rigid tapping, dual working light, spindle nose end labyrinth dust blowing, foundation screws and pads, automatic oil lubrication system, air conditioning, three-color warning light, chain iron chip conveyor and collection bucket, half hood sealing sheet metal, strong double helix iron chip winder.
Optional Parts
Grating ruler, tool breakage detector, spray cooling system, 40T tool library, spindle center outlet system, rotary table (fourth axis), side milling head, automatic tool setting instrument.

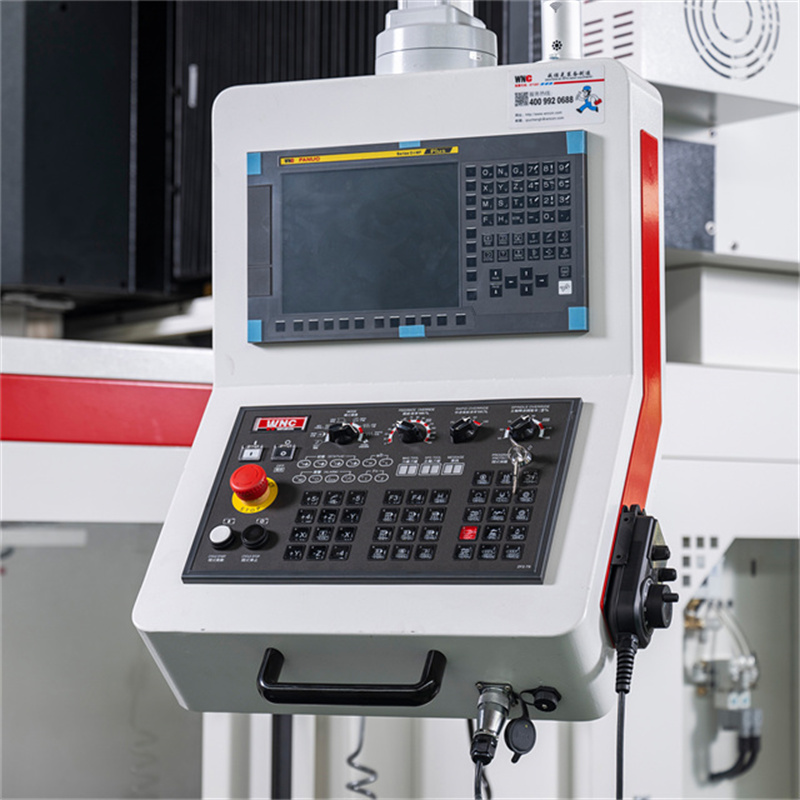

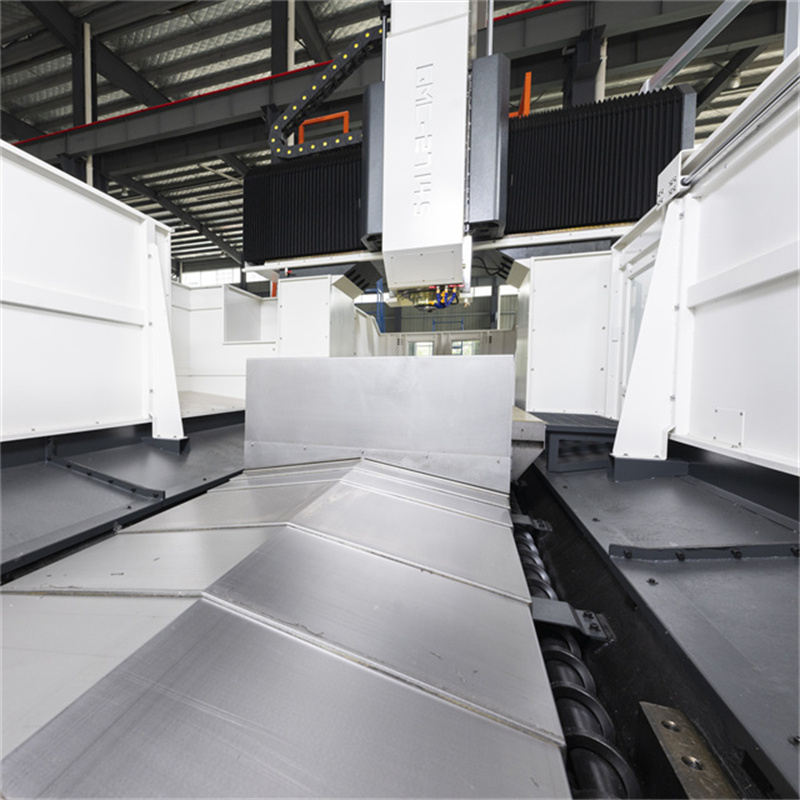

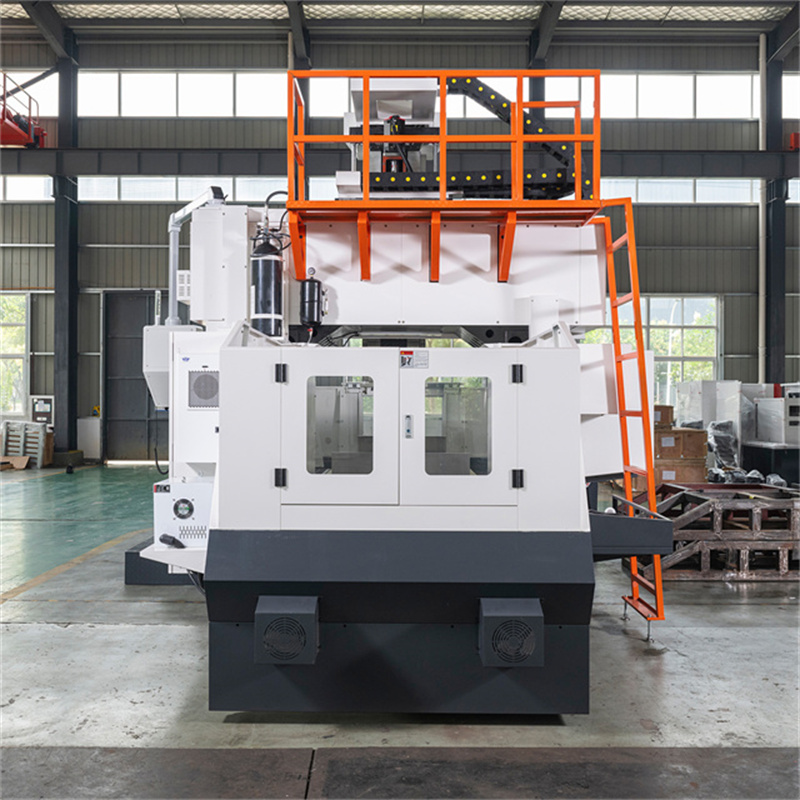

Products Pictures
