| Specification | unit | XH2306 | XH2306/1 | XH2308 | XH2310 | |
| Worktable area (width × length) | mm | 630×1250 | 630×1800 | 800×800 | 1000×2000 | |
| Worktable T-slot (number of slots × width × slot spacing) | mm | 5×18×125 | 7×22×125 | |||
| Distance from spindle end to worktable surface | mm | 230-580 | ||||
| Distance between gantry columns | mm | 1030 | 1030 | 1230 | 1430 | |
| Longitudinal travel of worktable | mm | 1600 | 2200 | 2200 | 2400 | |
| Horizontal travel of spindle box | m m | 1000 | 1000 | 1200 | 1400 | |
| Spindle taper hole number | mm | ISO50 | ||||
| Up and down travel of spindle box | mm | 500 | ||||
| Spindle speed | Level | stepless Infinitely variable | ||||
| Range | rpm | 30-4000 | ||||
| Three-way feed speed | Level | stepless Infinitely variable | ||||
| Range | mm/min | mm/min10-4000 | ||||
| Three-way rapid movement speed | mm/min | 10000 | ||||
| Spindle motor power | kw | 7.5 | 7.5 | |||
| Table movement motor power | kw | 3 | 4.9 | |||
| Spindle box horizontal movement motor power | kw | 2.2 | 2.2 | |||
| Spindle box vertical movement motor power | kw | 2.2 | 2.2 | |||
| Tool magazine capacity | pc | 12 | 12 | |||
| Tool change time (tool to tool) | S | 3.5 | 3.5 | |||
| Maximum tool weight | kg | 12 | 12 | |||
| Maximum tool diameter | mm | Φ250 | Φ250 | |||
| Maximum tool length | mm | 300 | 3000 | |||
| Maximum load weight of table | kg | 2000 | 2800 | 3500 | 4400 | |
| Net weight of machine tool | kg | 6500 | 7600 | 8000 | 8800 | |
| Machine tool dimensions (length × width × height) | mm | 5400×3000×2750 | 6530×3000×2750 | 6530×3000×2750 | 6730×3000×2750 | |
Products Features
1: Advanced CNC System: Equipped with world-class CNC systems such as Siemens, FANUC, and Mitsubishi, ensuring high precision and reliability.
2: Fast Tool Change System: The basket-type tool magazine with automatic tool-changing capabilities achieves tool changes within 3.5 seconds, significantly enhancing machining efficiency.
3: Versatile Machining Capabilities: Supports various machining processes, including milling, drilling, tapping, and countersinking, suitable for different material processing needs.
4: High-Power Spindle Motor: The 7.5kW spindle motor provides strong cutting performance, making it suitable for high-intensity operations.
5: Stable Gantry Structure: The fixed beam and column gantry structure ensures high rigidity and stability, ideal for high-precision machining of heavy workpieces.
Applications
The XH2306 Planer-Type Machining Center is widely used in industries such as aerospace, automotive manufacturing, and mold processing, particularly suited for machining precision parts. Its efficient tool-changing system and three-axis linkage function allow it to quickly adapt to diverse machining needs, greatly improving production efficiency. Additionally, the machine's high-rigidity gantry structure maintains excellent stability and precision even when machining large workpieces, making it an ideal choice for large mold and complex part processing.

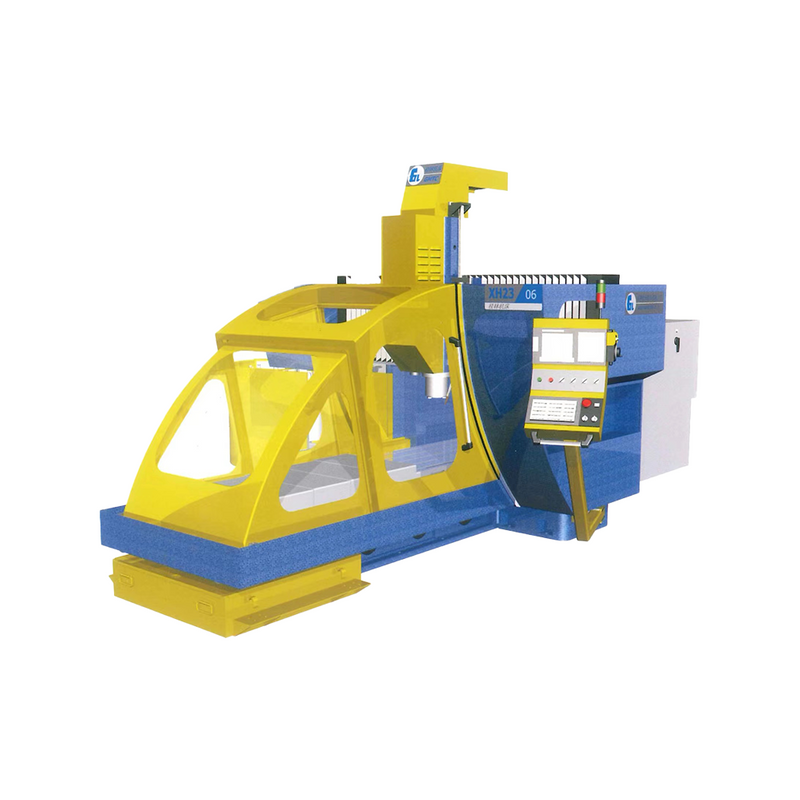

Products Pictures
