| Specification | unit | XHZ2316A/3 | XHZ2320A/4 | |
| Workbench area (width × length) | mm | 1600×4000 | 2000×4000 | |
| Workbench T-slot (number of slots × width × slot spacing) | mm | 9×28×160 | 9×28×200 | |
| Workbench longitudinal travel | mm | 3000 | 4000 | |
| Ram stroke | Horizontal | mm | 2200 | 2600 |
| Vertical | mm | 1000 | 1000 | |
| Minimum distance from spindle end to worktable | mm | 70 | ||
| Main motor power | kw | 30 | ||
| Main machine spindle speed | Range | rpm | 10～2500(option) | |
| Level | infinitely variable | |||
| Spindle taper | BT50 | |||
| C-axis indexing | Range | ±370 | ||
| Division unit | 2.5° | |||
| Three-way rapid traverse speed | mm/min | X、Y:10000 Z:8000 | ||
| Three-way cutting feed speed | mm/min | 1-5000 | ||
| Positioning accuracy | mm | ±0.010/1000 | ||
| Repeat positioning accuracy | mm | 0.01 | ||
| Tool magazine capacity | 30～60(option) | |||
| Tool selection | option | |||
| Tool holder specifications | BT50 | |||
| Maximum tool diameter | mm | Φ125 (full), Φ250 (left and right empty) | ||
| Maximum tool weight | kg | 15 | ||
| Maximum tool length | mm | 400 | ||
| Tool exchange time (tool to tool) | sec | 7.5 | ||
| Maximum worktable load | kg | 12000 | 18000 | |
| Net weight of locomotive | kg | 57000 | 78000 | |
| Machine tool dimensions (length × width × height) | mm | 9000×5600×5300 | 12000×6400×7000 | |
Products Features
1: High-Precision Five-Sided Machining: Equipped with automatic universal milling heads, supporting ±100° A-axis and ±370° C-axis rotations, this machine allows for flexible five-sided machining and multi-directional operations, significantly improving production flexibility and machining precision.
2: Robust Structural Design: The machine adopts a fixed-beam, fixed-column structure with large-scale linear rolling guideways, ensuring machine rigidity and stability, while maintaining high precision even when processing large workpieces.
3: Efficient Automation: The machine is equipped with a chain-type tool magazine and automatic tool change system, greatly enhancing processing efficiency and reducing manual intervention, making it suitable for mass production.
4: Powerful Drive System: The spindle uses an AC servo motor with gear-driven high and low-speed gears, providing strong cutting power even with stepless speed regulation, making it adaptable to various machining requirements.
5: Comprehensive Safety Protection: The machine is fully enclosed with protective shields, ensuring optimal safety during operations. Additionally, it is equipped with an automatic chip removal system, maintaining cleanliness and safety during prolonged operations.
Applications
The XHZ2316A Five-Axis Gantry Machining Center is ideal for processing large, complex parts in industries such as aerospace, automotive, and shipbuilding. For example, in aerospace, it can be used for machining aircraft fuselage components and engine parts. In the mold industry, it is suitable for machining large molds, such as automotive and appliance molds, meeting the demands for high precision and multi-sided machining.

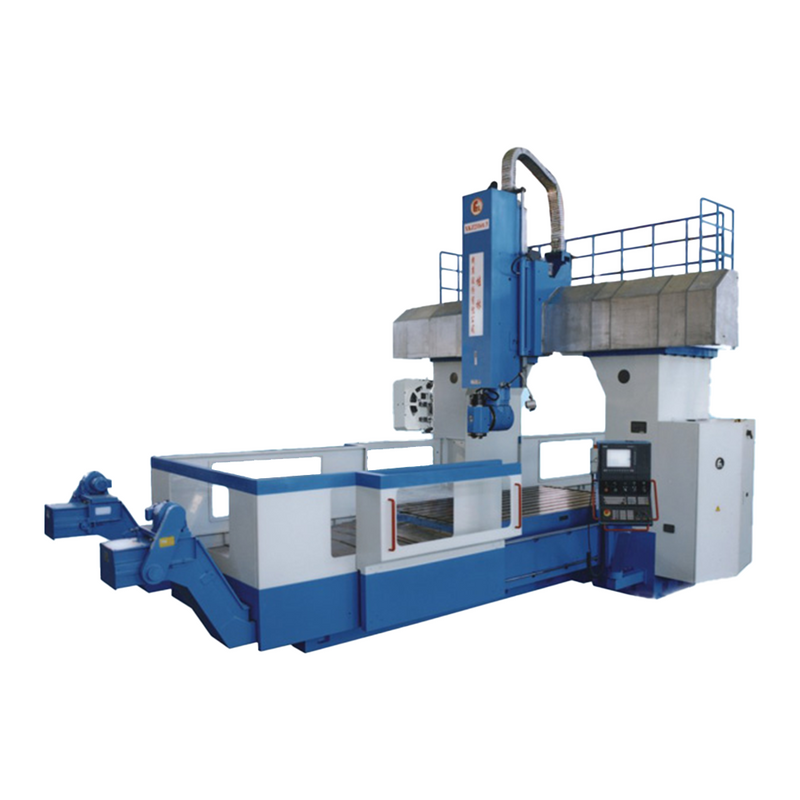

Products Pictures
