| Specification | unit | XH2316/3-5X | XH2320/4-5X | |
| Workbench area (width × length) | mm | 1600×3000 | 2000×4000 | |
| Workbench T-slot (number of slots × width × slot spacing) | mm | 9×28×160 | 9×28×200 | |
| Workbench longitudinal travel | mm | 3000 | 4000 | |
| Ram stroke | Horizontal | mm | 2200 | 2500 |
| Vertical | mm | 1000 | 1000 | |
| Distance from spindle face to worktable | mm | 80～1080 | ||
| Main motor power | kw | 28/39(S1-100%/S6-60%) | ||
| Spindle speed | rpm | 100～12000(stepless) | ||
| Spindle torque | N·m | 89/124 | ||
| Spindle taper | BT40(HSK63A optional) | |||
| C-axis rotation angle | ±370° | |||
| A-axis swing angle | ±100° | |||
| A and C-axis speeds | rpm | 0～5 | ||
| Three-way rapid traverse speed | mm/min | X、Y、Z:10000 | ||
| Three-way cutting feed speed | mm/min | X、Y、Z:1-8000 | ||
| Positioning accuracy | mm | ±0.010/1000 | ||
| Repeat positioning accuracy | mm | 0.01 | ||
| Tool magazine capacity | pcs | 30～60(optional) | ||
| Tool selection | optional | |||
| Tool holder specifications | BT40(HSK63A optional) | |||
| Maximum tool diameter | mm | Φ70 (full), Φ130 (left and right empty) | ||
| Maximum tool weight | kg | 8 | ||
| Maximum tool length | mm | 300 | ||
| Tool exchange time (tool to tool) | sec | 3.5 | ||
| Maximum worktable load | kg | 8000 | 10000 | |
| Net weight of locomotive | kg | 58000 | 78000 | |
| Machine tool dimensions (length × width × height) | mm | 8800×4700×4300 | 10800×5800×4300 | |
Products Features
1: 5-Axis Simultaneous Control: Equipped with an automatic universal milling head, with a C-axis rotation of ±370° and A-axis rotation of ±100°, enabling 5-axis simultaneous machining in any spatial direction.
2: High Rigidity and Stability: Features a dual hydraulic cylinder balanced lift system to ensure stable elevation movement; dual guide rail layout and advanced guide rail design offer high rigidity and wear resistance.
3: Automated Design: Integrated with a timed and metered automatic lubrication system and two automatic chip removal systems, ensuring long-term reliability and increased production efficiency.
4: Customizable Configurations: Offers options to configure with CNC systems from Siemens, FANUC, FAGOR, etc., as well as the choice between domestic or imported automatic universal milling heads based on user needs.
5: Versatile Machining Capabilities: The machine is capable of multi-angle, multi-directional machining, making it ideal for multi-process, high-strength machining of large and complex parts.
Applications
The XH2316/3-5X 5-Axis CNC Gantry Machining Center is widely used in industries such as aerospace, mold manufacturing, shipbuilding, and automotive for machining complex parts. Its 5-axis simultaneous control allows for multi-angle, multi-process machining in a single setup, enhancing precision and reducing production time. This machine is particularly suited for high-strength, high-precision machining scenarios, such as aircraft components, mold cavities, and complex ship hull component manufacturing.

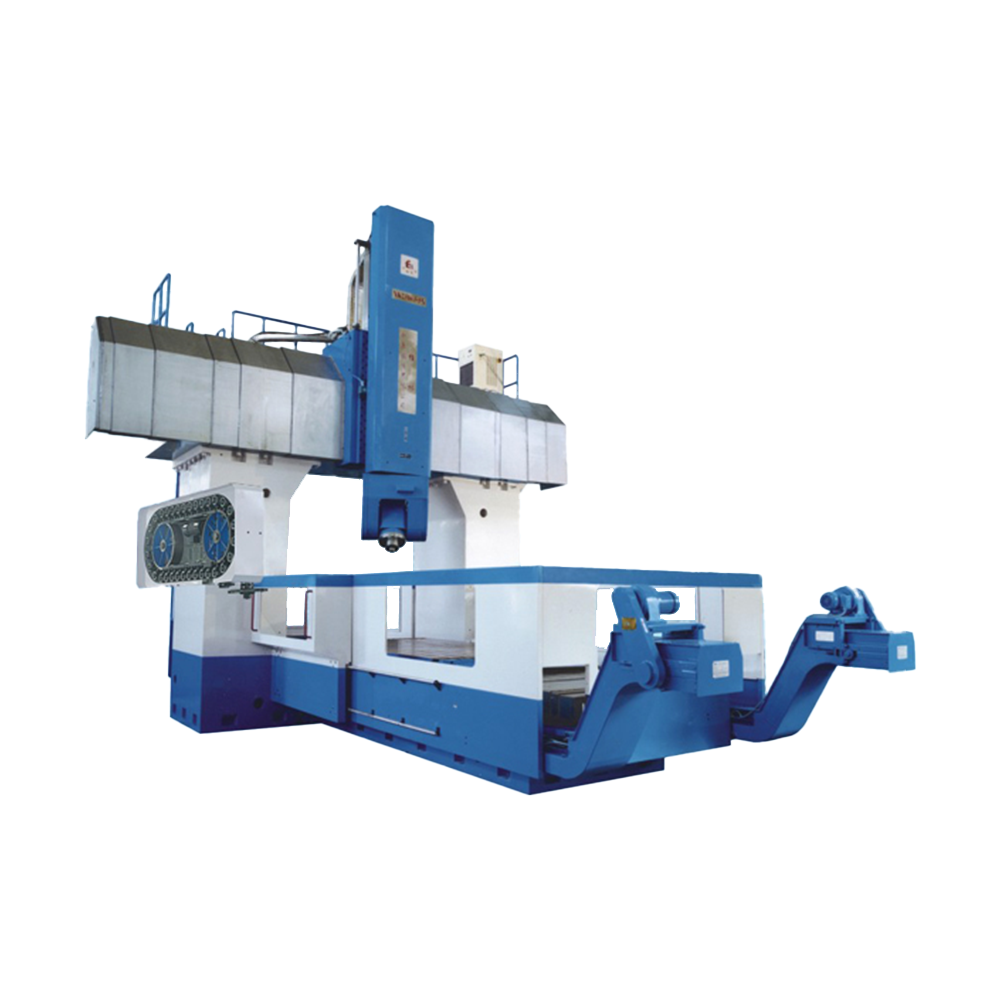

Products Pictures
