Product Specifications
| Items | Unit | CY-GMC11series | CY-GMC12series | CY-GMC15series | CY-GMC18series | |
| GMC1122 | GMC1212 | GMC1516 | GMC1820 | |||
| Workbench | Worktable size | mm | 2200×1000 | 1400×1000 | 1600×1300 | 2000×1620 |
| T-slot (number-size x spacing) | 7-22×145 | 7-22×120 | 7-22×175 | 9-22×180 | ||
| Spindle | Distance from spindle center to column side | mm | 365 | 310 | 365 | 390 |
| Distance from spindle end to worktable | mm | 60~860 | 150~850 | 186～986 | 280～1080 | |
| Spindle (specification-installation diameter-transmission type) | BT50-φ155-strap | BT40-φ150-Short nose strap | BT50-φ200-strap | BT50-φ190-strap | ||
| Spindle speed | rpm | 8000 | 8000 | 6000 | 6000 | |
| Others | XY/Z axis travel | mm | 2200/110/800 | 1200/1200/700 | 1600/1600/800 | 2000/1800/800 |
| Model of the same series of machine tools | GMC1216 GMC1220 | GMC1520 GMC1525 | GMC1825 GMC1830 | |||
Products Features
1: This gantry machining center series is equipped with a high-rigidity, high-torque spindle and a dynamic response drive system.
2: It's easy to operate, flexible, safe, and reliable. It's widely used in industries like aerospace, rail transit, automotive, and mold making.
3: The center is capable of multiple machining processes including milling, boring, drilling, rigid tapping, reaming, and broaching.

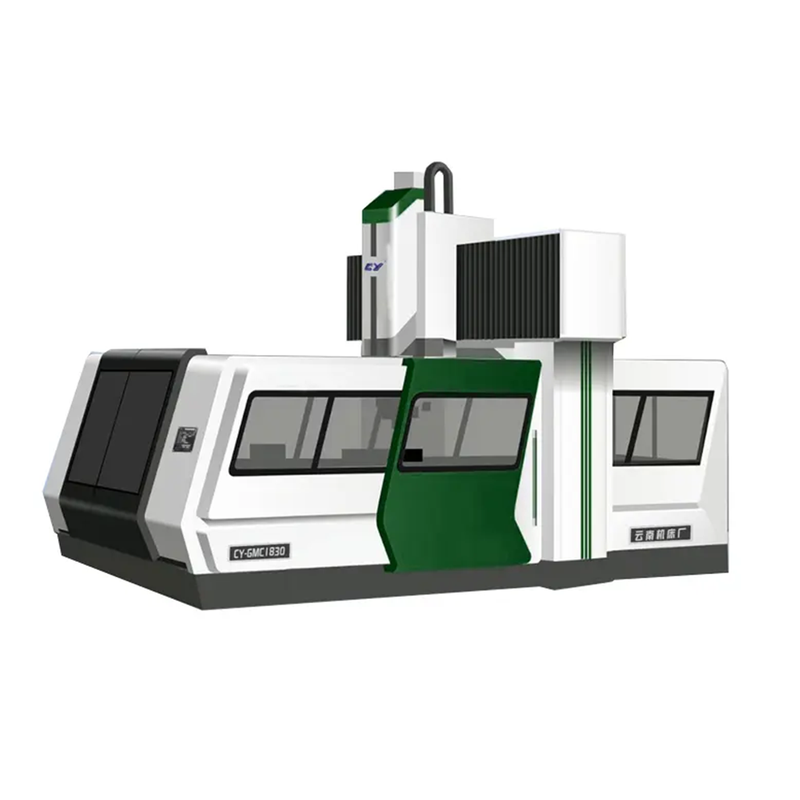

Products Pictures
Product Specifications
| Items | Unit | CY-GMC11series | CY-GMC12series | CY-GMC15series | CY-GMC18series | |
| GMC1122 | GMC1212 | GMC1516 | GMC1820 | |||
| Workbench | Worktable size | mm | 2200×1000 | 1400×1000 | 1600×1300 | 2000×1620 |
| T-slot (number-size x spacing) | 7-22×145 | 7-22×120 | 7-22×175 | 9-22×180 | ||
| Spindle | Distance from spindle center to column side | mm | 365 | 310 | 365 | 390 |
| Distance from spindle end to worktable | mm | 60~860 | 150~850 | 186～986 | 280～1080 | |
| Spindle (specification-installation diameter-transmission type) | BT50-φ155-strap | BT40-φ150-Short nose strap | BT50-φ200-strap | BT50-φ190-strap | ||
| Spindle speed | rpm | 8000 | 8000 | 6000 | 6000 | |
| Others | XY/Z axis travel | mm | 2200/110/800 | 1200/1200/700 | 1600/1600/800 | 2000/1800/800 |
| Model of the same series of machine tools | GMC1216 GMC1220 | GMC1520 GMC1525 | GMC1825 GMC1830 | |||
Products Features
1: This gantry machining center series is equipped with a high-rigidity, high-torque spindle and a dynamic response drive system.
2: It's easy to operate, flexible, safe, and reliable. It's widely used in industries like aerospace, rail transit, automotive, and mold making.
3: The center is capable of multiple machining processes including milling, boring, drilling, rigid tapping, reaming, and broaching.

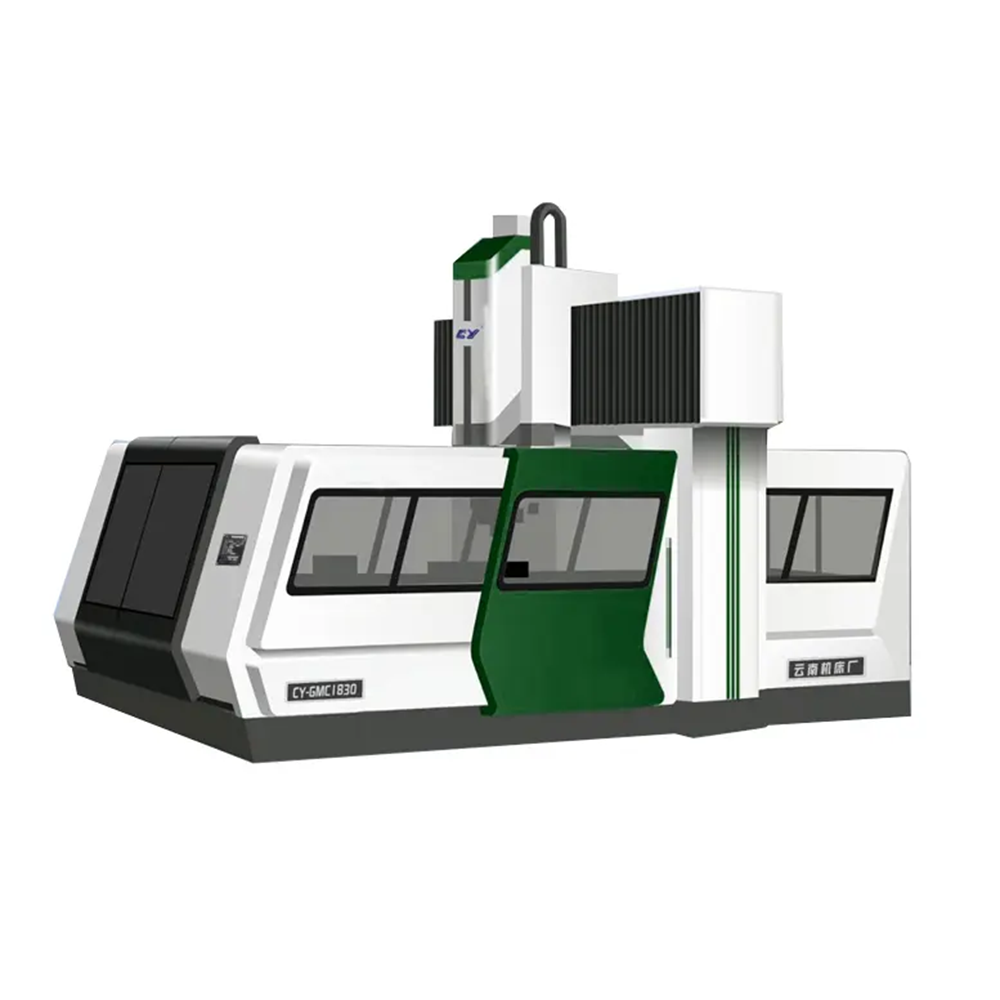

Products Pictures
