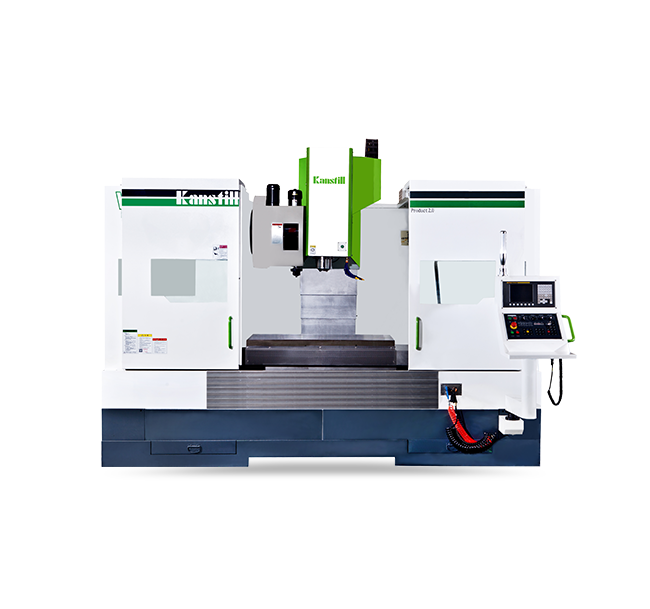

Front view of CNC vertical machining center (VMC machine) for precision manufacturing
Front view of CNC vertical machining center (VMC machine) for precision manufacturing Front view of CNC vertical machining center (VMC machine) for precision manufacturing

loading

KANSTILL High Rigidity Vertical Machining Center

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Machine features:
* Optional gear spindle, greatly enhance the chip capacity and efficiency.
* The whole machine is made of advanced resin sand castings, and the internal stress is eliminated by the annealing treatment and vibration and natural aging treatment
* Ultra-wide one-piece base, providing the most stable load-bearing capacity.
*Widen the 人-shaped column of the span of the joint surface to enhance the rigidity of the machine tool.
*Y-axis composite four-track design, stable machining accuracy.
*Taiwan-made C3 ball screw and pre-stretch, to ensure the accuracy of axial operation.

SKU:
Availability:
Quantity:
Inquire Add to Basket

Optional:

24 robots magazine

Spiral chip conveyor

Chain plate chip conveyor

Knife instrument

Spindle oil cooling

4th axis


Technical specifications:

WorkbenchV(L)12V(L)13V(L)15V(L)16V(L)18
Workbench size1400*700mm1400*710(800)mm1700*8001800*900mm2000*900mm
T-slot (width *quantity *spacing)18*5*120mm18*5*152.5mm22*5*135mm22*5*165mm22*5*165mm
Weight capacity1100kg1000(1500)kg1500kg2200kg1600kg
Stroke




X/Y/Z stroke1200/700/650mm1300/700(800)/650(700)mm1500/800/700mm1600/900/680(600)mm1800/900/800(720)mm
Spindle nose to table110-670mm150-800(850)mm170-870mm160-840mm160-960mm
Vertical nose to table760mm785(855)mm800mm950mm950mm
Spindle




Spindle taper specificationsBT40/BT50BT50BT50BT50BT50
Main motor5.5/15kw15kw18.5kw22kw26kw
Rotating speed7000rpm8000rpm8000rpm6000rpm6000rpm
Fast moving




Fast moving speedx/y:30m/min Z:24m/minx/y:15(20)m/min Z:12(16)m/minx/y:15m/min Z:12m/min15m/min15m/min
Cutting feed rate1-12000mm/min1-8000(10000)mm/min1-8000mm/min1-7000mm/min1-7000mm/min
Accuracy




Positioning Accuracy±0.008/300±0.005/300±0.005/300±0.005/300±0.005/300
Repeated Positioning Accuracy±0.004±0.004±0.005±0.008±0.008
Machine Weight and Size




Size (Length * Width * Height)3200*2700*2650m3600(4070)*3400(3250)*3080mm4270*3490*3080mm4350*3450*3100mm4500*3450*3200mm
Weight9000kg11000kg13500kg15000kg17500kg


Previous:
Next:
vertical machining center manufacturers cnc vertical machining center vmc cnc machine
KEEP IN TOUCH WITH US
Leave a Message
KEEP IN TOUCH WITH US

Related Products

KANSTILL Vertical Double Spindle Machining Center
KANSTILL Vertical Double Spindle Machining Center
Front view of CNC gantry machining center with high-speed spindle and heavy-duty roller guides
KANSTILL High Speed and High Precision Gantry Machining Center
Front view of CNC horizontal machining center for heavy-duty and precision machining
KANSTILL Horizontal Machining Center
Front view of horizontal CNC milling center machine for high-precision cutting
KANSTILL High Rigidity Horizontal CNC Milling Machine
Front view of CNC drilling and high precision machining center for stable mass production
KANSTILL High-Speed Drilling Machining Center
Front view of vertical CNC machining center (VMC machine) for precision mass production
KANSTILL High Speed Vertical Machining Center

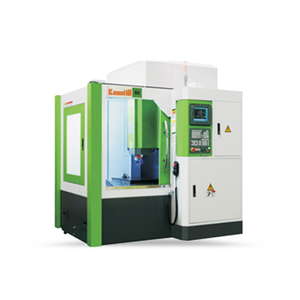

CNC milling and engraving machine front view with high-rigidity bed and precision spindle for high-speed machining
