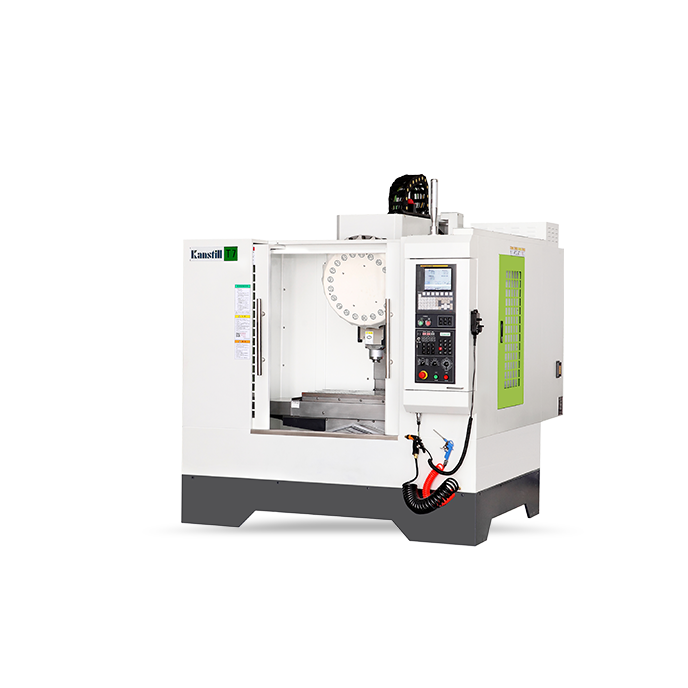

Front view of CNC drilling and high precision machining center for stable mass production

KANSTILL High-Speed Drilling Machining Center

Machine features:
* The whole machine is made of advanced resin sand castings, and the internal stress is eliminated by the annealing treatment and vibration and natural aging treatment
* C3 grade ball screw to ensure high precision and durability
* Pre-pull the shaft to reduce deformation
* High-volume mass production models, stable performance.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Standard configuration:

Fully enclosed protective cover

48metres fast moving

Electrical cabinet cooling circulation system

Rigid tapping

Ethernet and USB interface

Centralized automatic lubrication system

Spindle cooling system

LED work light

LED three-color warning light

Separate electronic hand wheel

Common toolbox

Foundation horns and adjusting bolts

High pressure water gun

Clean air gun

Operation and maintenance manuals and control circuit data

Optional:

20/24 disc robot type magazine

Direct spindle

Oil mist processor

Technical specifications:

Workbench	T5（48M）	T6（48M）	T7（48M)
Workbench size	650×400mm	700×420mm	900×420mm
T-slot(widthquantityspacing)	14×3×100mm	14×3×125mm	14×3×125mm
Weight Capacity	300kg	300kg	300kg
Stroke
X/Y/Z stroke	500/400/300mm	600/400/330mm	700/500/330mm
Spindle Nose to Workbench	150-450mm	150-480m	150-480mm
Spindle
Spindle Taper Specifications	BT30	BT30	BT30
Main Motor	5.5KW	5.5KW	5.5KW
Rotating Speed	20000RPM	20000RPM	20000RPM
Tool Magazine
Number of Magazines	21Servo	21Servo	21Servo
Maximum Magazine Diameter(without adjacent magazine)	60(80)MM	60(80)MM	60(80)MM
Maximum magazine length / magazine weight	250mm/3KG	250mm/3KG	250mm/3KG
Fast-Moving
Fast Moving Speed	48m/min	48m/min	48m/min
Cutting Feed Rate	1-12000mm/min	1-12000mm/min	1-12000mm/min
Accuracy
Positioning accuracy	±0.003/300	±0.003/300	±0.003/300
Repeated positioning accuracy	±0.0025	±0.0025	±0.0025
Machine weight and size
Size (Length * Width * Height)	1762×2109×2091mm	1760×2105×2212mm	2060×2346×2340mm
Weight	3000kg	3500kg	4000kg
