High-Speed Engraving and Milling Machine
High-Speed Engraving and Milling Machine High-Speed Engraving and Milling Machine

loading

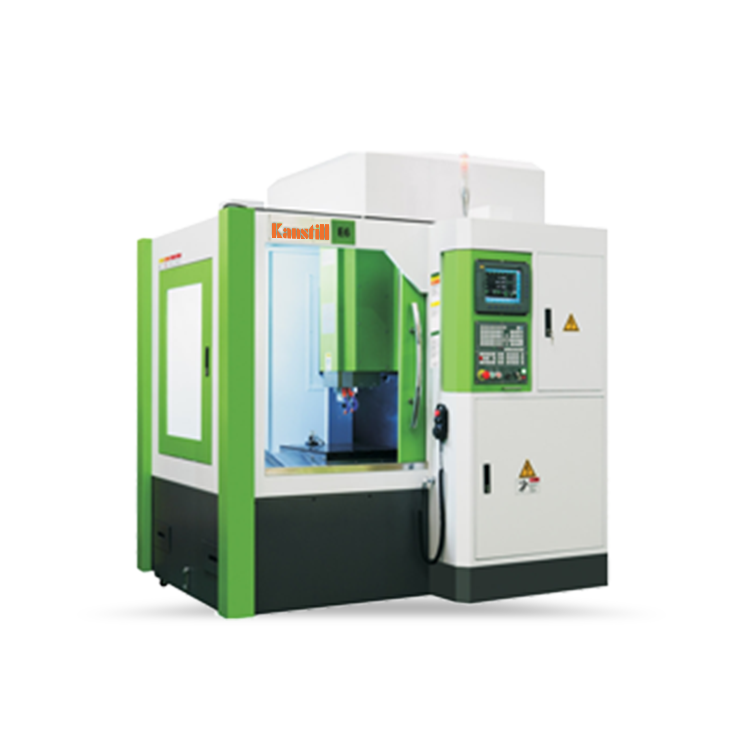

KANSTILL High-Speed Engraving and Milling Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Machine features:
· High-rigidity bed for high-speed processing
· The whole machine is made of advanced resin sand castings, and the internal stress is eliminated by the annealing treatment and vibration and natural aging treatment
· C3 grade ball screw to ensure high precision and durability
· Pre-pull the shaft to reduce deformation
SKU:
Availability:
Quantity:
Inquire Add to Basket

Optional Configuration:

· The fourth axis

· row knife library

· Hat knife library


Technical specifications:

WorkbenchE6E8E12E16
Workbench size600*500mm800*600mm800×1200mm1200×1600mm
T-slot (width *quantity *spacing)16*5*100mm16*5*110mm16×5×165mm18×7×160mm
weight capacity300kg400kg800kg1500kg
Stroke



X/Y/Z stroke600/500/250mm680/780/330mm800/1200/500mm1200/1600/700mm
Spindle nose to workbench80-330mm90-420mm50-550mm50-750mm
Gantry width760mm760mm900mm1400mm
Spindle



Spindle taper specificationsER32ER32BT40BT40
Main motor7.5kw7.5kw7.5KW7.5KW
Rotating speed24000rpm24000rpm18000RPM18000RPM
Fast moving



Fast moving speed15m/min10m/min8m/min8m/min
Cutting feed rate1-8000mm/min1-8000mm/min1-8000mm/min1-8000mm/min
Accuracy



Positioning accuracy±0.003/300±0.003/300±0.006/300±0.006/300
Repeated positioning accuracy±0.0025±0.0025±0.005±0.005
Machine weight and size



Size (Length * Width * Height)1750*2000*2300mm2200*2000*2300mm3200×2000×2800mm4200×2500×3000mm
Weight3200kg4200kg7000kg10200kg
