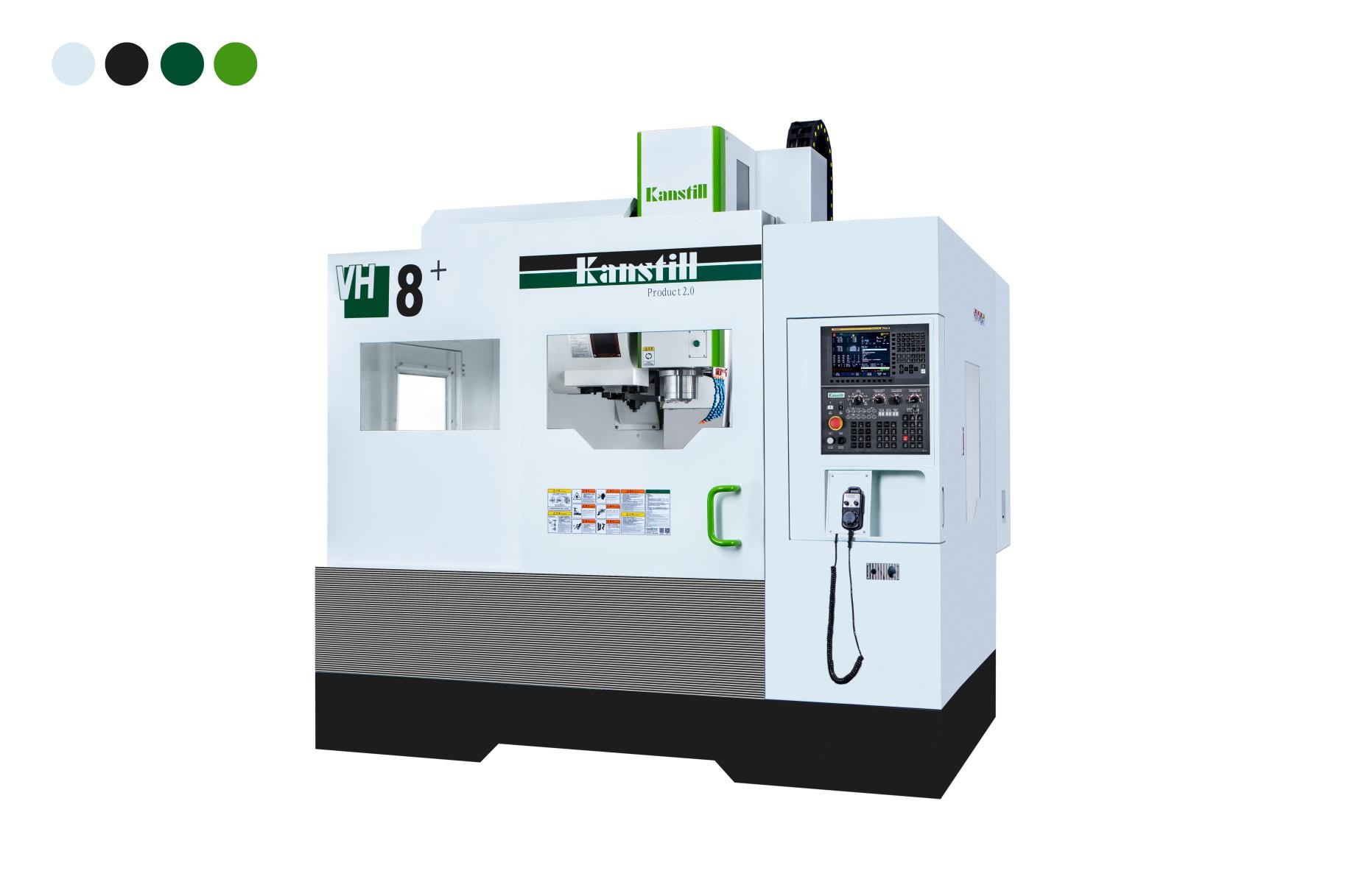

Front view of vertical CNC machining center (VMC machine) for precision mass production
Front view of vertical CNC machining center (VMC machine) for precision mass production Front view of vertical CNC machining center (VMC machine) for precision mass production

loading

KANSTILL High Speed Vertical Machining Center

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Machine features:
* The whole machine is made of advanced resin sand castings, and the internal stress is eliminated by the annealing treatment and vibration and natural aging treatment
* C3 grade ball screw to ensure high precision and durability
* Pre-pull the shaft to reduce deformation
* High-volume mass production models, stable performance.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Standard configuration:

Fully enclosed protective cover

48metres fast moving

Electrical cabinet cooling circulation system

Rigid tapping

Ethernet and USB interface

Centralized automatic lubrication system

Spindle cooling system

LED work light

LED three-color warning light

Separate electronic hand wheel

Common toolbox

Foundation horns and adjusting bolts

High pressure water gun

Clean air gun

Operation and maintenance manuals and control circuit data



Optional:

20/24 disc robot type magazine

Direct spindle

Oil mist processor


Technical specifications:

WorkbenchVH8+VH10
Workbench size1350*500mm1200*550mm
T-slot (width *quantity *spacing)14*4*100mm18*5*90mm
Weight capacity600kg500kg
Stroke

X/Y/Z stroke800/500/6501000/550/550mm
spindle nose to table150-800mm120-670mm
Vertical nose to table550mm595mm
Spindle

Spindle taper specificationsBT40BT40
Main motor7.5-11kw7.5kw
Rotating speed12000rpm10000rpm
Feed Rate

Feed Rate48m/min48m/min
Accuracy

Positioning accuracy±0.003/300±0.003/300
Repeated positioning accuracy±0.0025±0.0025
Machine weight and size

Size (Length * Width * Height)2600*2500*3100mm3100*2200*2500mm
Weight5200kg5800kg
