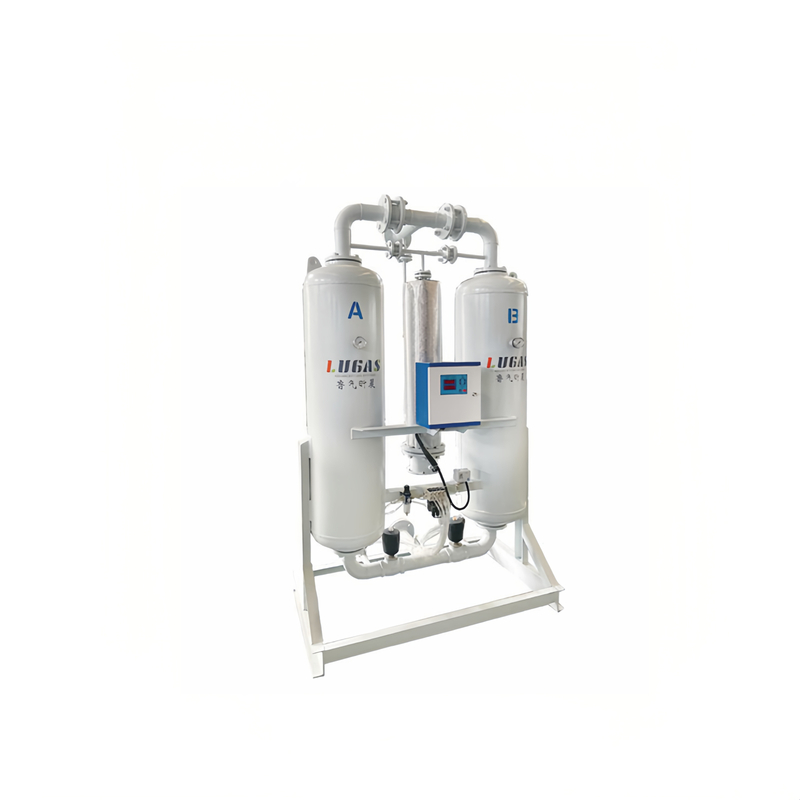

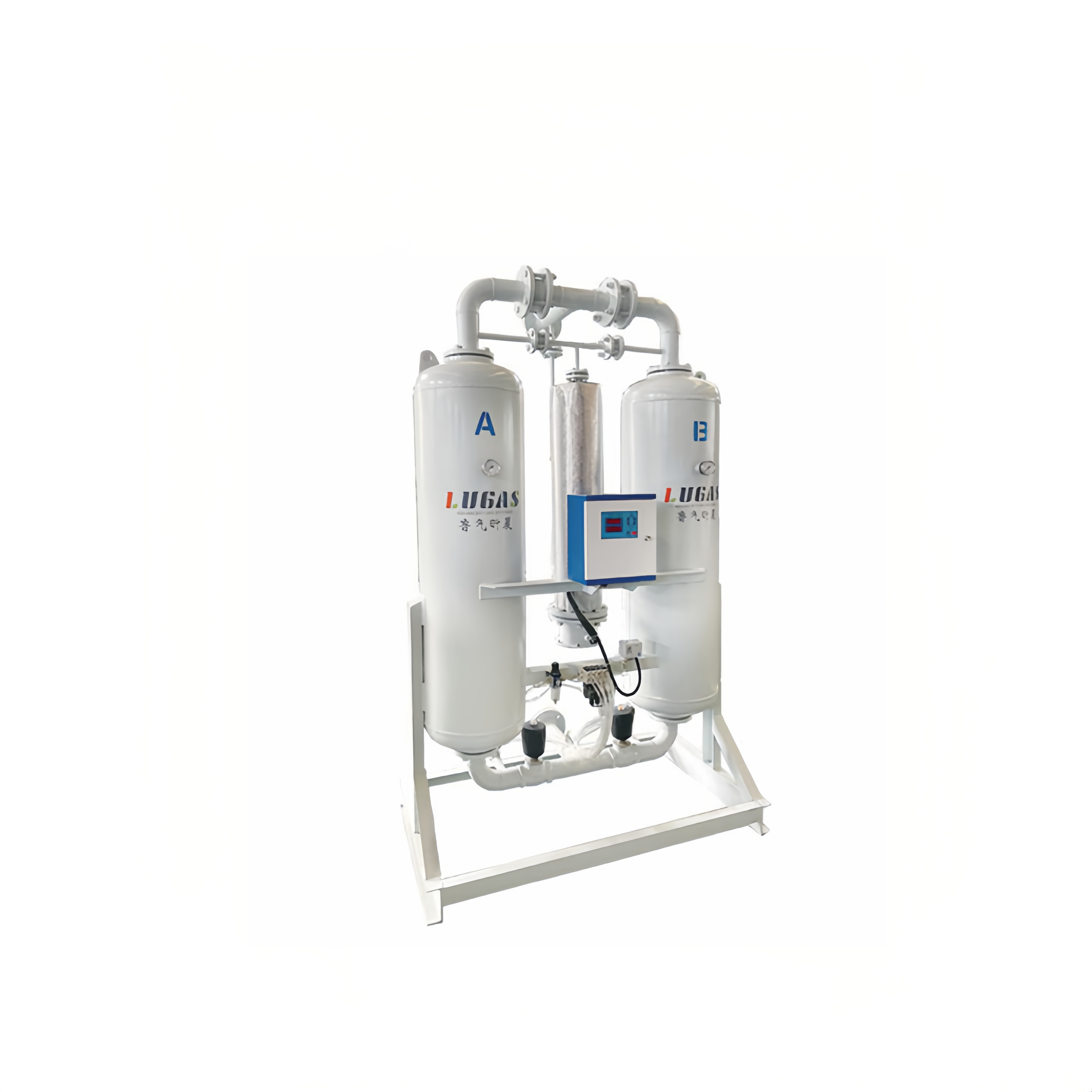

Machine Features:
Efficient Moisture Removal: Ensures a consistent dew point of –20°C to –40°C for stable and dry air output.
Low Purge Air Consumption: External heater design reduces purge air loss to only 3–6%, improving overall efficiency.
High Durability: Dual-layer desiccant system (Activated Alumina + Molecular Sieve) ensures long service life and excellent adsorption performance.
Automatic Operation: Fully automatic cycle control with 60–180-minute operation periods for reliable continuous drying.
Energy-Saving Design: Optimized regeneration system minimizes energy consumption while maintaining performance.
Wide Application Range: Suitable for use under inlet temperatures up to 45°C and pressure from 0.6–1.0MPa.
Compact & Easy Maintenance: Simple structure, easy installation, and convenient servicing.
Machine Working Principle:
Purge air: <3~6%
Working pressure: 0.6~1.0MPa
Inlet oil content: ≤0.lmg/m3
Outlet air pressure dew point: -20°C~-40°C
Desiccant: Activated aluminum+Molecular siere
Working periods:T=60~180min
Inlet temperature: 0°C~45°C
Product Specifications:
| Model | Air Flow (Nm³/min) | Heater Power (kW) | Air Pipe Diameter | Dimensions (mm) L | Dimensions (mm) W | Dimensions (mm) H | Weight (kg) |
| 1WXG | 1.2 | 1.2 | DN25 | 605 | 560 | 1188 | 144 |
| 2WXG | 2.4 | 1.5 | DN25 | 605 | 560 | 1646 | 182 |
| 3WXG | 3.8 | 2 | DN25 | 605 | 560 | 1553 | 211 |
| 6WXG | 6.5 | 3 | DN40 | 973 | 800 | 1018 | 364 |
| 8WXG | 8.5 | 3.5 | DN50 | 1062 | 900 | 1595 | 560 |
| 10WXG | 10.7 | 3.9 | DN50 | 1162 | 900 | 1880 | 645 |
| 12WXG | 13 | 3.9 | DN50 | 1162 | 900 | 2090 | 720 |
| 16WXG | 17 | 5.1 | DN80 | 1375 | 1000 | 1908 | 930 |
| 20WXG | 23 | 5.4 | DN80 | 1375 | 1000 | 2208 | 1120 |
| 25WXG | 27 | 7 | DN80 | 1375 | 1100 | 2020 | 1240 |
| 30WXG | 33 | 8.2 | DN80 | 1375 | 1100 | 2110 | 1370 |
| 40WXG | 45 | 10 | DN100 | 1665 | 1100 | 2393 | 1700 |
| 50WXG | 55 | 12.5 | DN125 | 2015 | 1200 | 2473 | 2100 |
| 60WXG | 65 | 15 | DN125 | 2015 | 1200 | 2673 | 2450 |
| 80WXG | 85 | 20.4 | DN125 | 2213 | 1300 | 2570 | 2800 |
| 100WXG | 100 | 25.5 | DN150 | 2500 | 1900 | 2933 | 3180 |
| 120WXG | 120 | 32 | DN150 | 2500 | 1900 | 3018 | 3250 |
| 150WXG | 150 | 40 | DN200 | 2900 | 2200 | 3429 | 3910 |
| 200WXG | 200 | 52 | DN200 | 3100 | 2400 | 3529 | 4280 |
| 250WXG | 250 | 63 | DN250 | 3200 | 2600 | 3645 | 5950 |
| 300WXG | 300 | 72.5 | DN250 | 3400 | 2800 | 3810 | 7180 |
| 350WXG | 350 | 85 | DN300 | 3500 | 2900 | 3950 | 8225 |
| 400WXG | 400 | 98 | DN350 | 3600 | 3000 | 4250 | 9340 |
| 500WXG | 500 | 112 | DN350 | 5400 | 3852 | 6990 | 11980 |
