Machine Features:
High Reliability & Low Investment – Simple process flow with fewer moving parts ensures stable performance, low failure rate, and minimal maintenance costs.
Energy-Efficient Operation – Lower energy consumption compared to other nitrogen generation methods, reducing long-term operating costs.
Automatic Control System – Equipped with an imported programmable controller (PLC) and pneumatic valves for fully automated operation; starts and supplies nitrogen within 15 minutes.
Real-Time Monitoring – Integrated purity analyzer, pressure gauge, and flow meter display nitrogen purity, pressure, and flow in real time. Automatic alarm activates when purity falls below the set limit.
Durable Molecular Sieve – Professionally packed activated carbon molecular sieves ensure long service life and consistent nitrogen purity without sieve loss or loosening.
Intelligent Demand Control – The system automatically adjusts output based on nitrogen consumption, and can start or stop automatically to save energy and reduce running costs.
Machine Working Principle:
Under a certain pressure, the PSA Nitrogen Generator utilizes the difference in diffusion rates of oxygen and nitrogen molecules in the air through carbon molecular sieves. Oxygen molecules are rapidly adsorbed by the carbon molecular sieves, while nitrogen molecules are enriched in the gas phase, achieving the separation of oxygen and nitrogen.

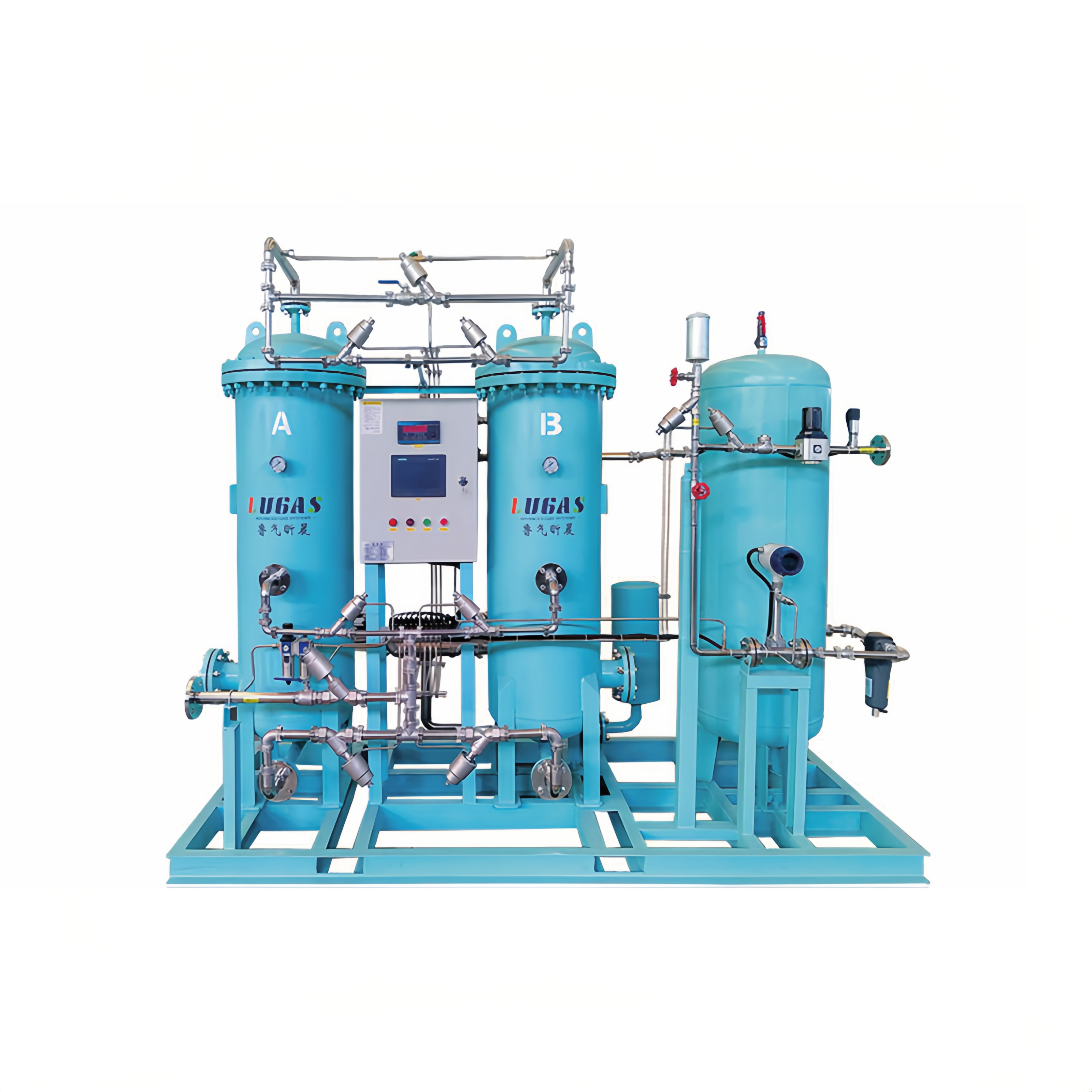

Our system adopts a dual-tower adsorption process based on the principle of pressure swing adsorption. One tower adsorbs to produce nitrogen, while the other desorbs for regeneration. The two towers operate alternately in cycles, continuously producing high-purity nitrogen in a stable and efficient manner.

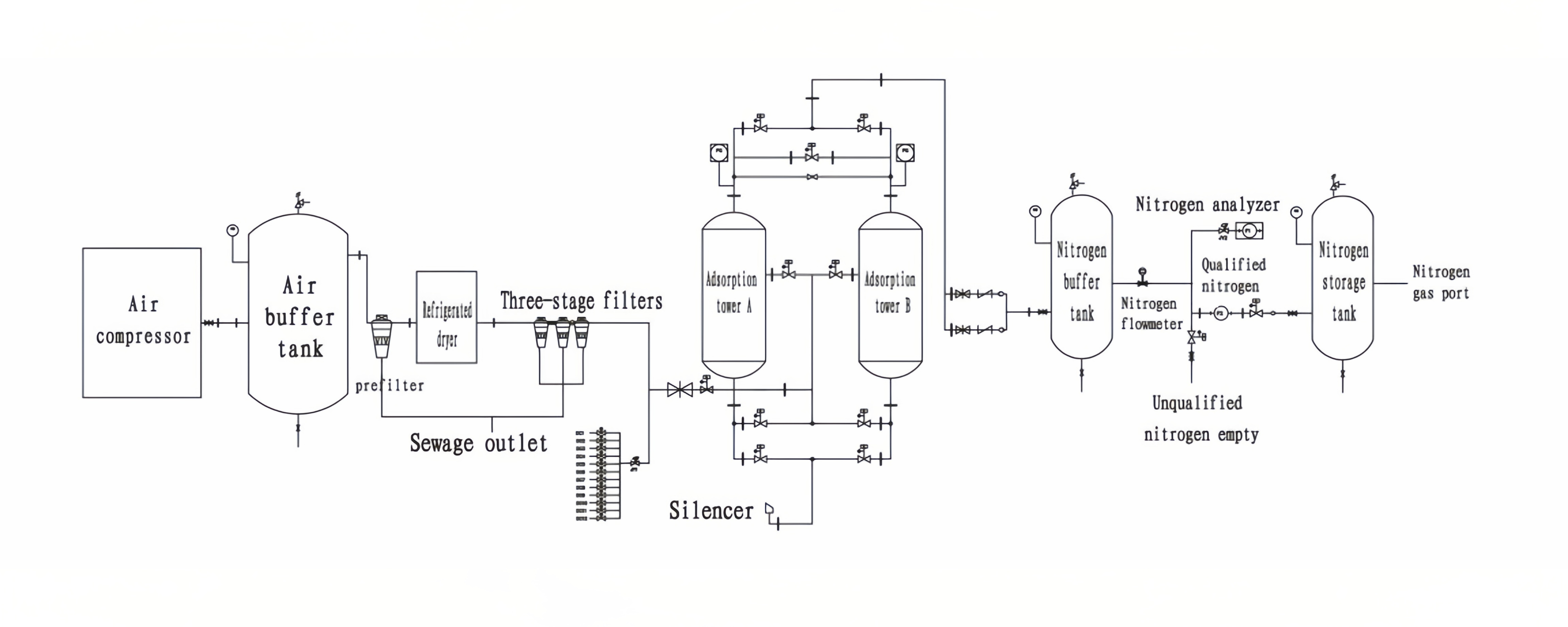

Machine Process Flow:
Technical Indicators：
Nitrogen Flow Rate: 1–5000 Nm³/h
Nitrogen Purity: 95%–99.9999% (Oxygen-free)
Nitrogen Pressure: 0.1–1.6 MPa (Adjustable)
Nitrogen Dew Point: 0°C to –60°C
Product Specifications-Nitrogen purity :97%
| Model | Nitrogen production (Nm³/h) | Required compressed air volume (Nm³/min) | Inlet pipe size (DNmm) | Outlet pipe diameter (DNmm) | Host L×W (mm) |
| XC10-97 | 10 | 0.4 | 15 | 15 | 850×420 |
| XC20-97 | 20 | 0.7 | 15 | 15 | 850×420 |
| XC30-97 | 30 | 1.1 | 25 | 15 | 1150×600 |
| XC40-97 | 40 | 1.5 | 25 | 20 | 1150×600 |
| XC50-97 | 50 | 1.8 | 25 | 20 | 1200×700 |
| XC60-97 | 60 | 2.2 | 25 | 25 | 1250×880 |
| XC80-97 | 80 | 2.9 | 32 | 25 | 1260×880 |
| XC100-97 | 100 | 3.7 | 32 | 25 | 1350×950 |
| XC150-97 | 150 | 5.5 | 32 | 25 | 1750×1000 |
| XC200-97 | 200 | 7.3 | 40 | 32 | 2150×1100 |
| XC300-97 | 300 | 11 | 40 | 32 | 2250×1140 |
| XC400-97 | 400 | 14.7 | 50 | 40 | 2500×1150 |
| XC600-97 | 600 | 22 | 65 | 50 | 2850×1550 |
| XC800-97 | 800 | 29.3 | 80 | 65 | 3000×1650 |
| XC1000-97 | 1000 | 36.7 | 80 | 65 | 3100×1700 |
| XC1500-97 | 1500 | 55 | 125 | 80 | 3250×1820 |
| XC2000-97 | 2000 | 73.3 | 150 | 100 | 3500×2150 |
| XC3000-97 | 3000 | 110 | 200 | 100 | 4400×3150 |
Product Specifications-Nitrogen purity :99%
| Model | Nitrogen production (Nm³/h) | Required compressed air volume (Nm³/min) | Inlet pipe size (DNmm) | Outlet pipe diameter (DNmm) | Host L×W (mm) |
| XC10-99 | 10 | 0.4 | 15 | 15 | 850×420 |
| XC20-99 | 20 | 0.8 | 15 | 15 | 850×420 |
| XC30-99 | 30 | 1.2 | 25 | 20 | 1150×600 |
| XC40-99 | 40 | 1.6 | 25 | 20 | 1150×600 |
| XC50-99 | 50 | 2 | 25 | 25 | 1200×700 |
| XC60-99 | 60 | 2.4 | 25 | 25 | 1250×880 |
| XC80-99 | 80 | 3.2 | 32 | 25 | 1260×880 |
| XC100-99 | 100 | 4 | 32 | 25 | 1350×950 |
| XC150-99 | 150 | 6 | 32 | 25 | 1750×1000 |
| XC200-99 | 200 | 8 | 40 | 32 | 2150×1100 |
| XC300-99 | 300 | 12 | 40 | 32 | 2250×1140 |
| XC400-99 | 400 | 16 | 50 | 40 | 2500×1150 |
| XC600-99 | 600 | 24 | 65 | 50 | 2850×1550 |
| XC800-99 | 800 | 32 | 80 | 65 | 3000×1650 |
| XC1000-99 | 1000 | 40 | 80 | 65 | 3100×1700 |
| XC1500-99 | 1500 | 60 | 125 | 80 | 3250×1820 |
| XC2000-99 | 2000 | 80 | 150 | 100 | 3500×2150 |
| XC3000-99 | 3000 | 120 | 200 | 100 | 4400×3150 |
Product Specifications-Nitrogen purity :99.9%
| Model | Nitrogen production (Nm³/h) | Required compressed air volume (Nm³/min) | Inlet pipe size (DNmm) | Outlet pipe diameter (DNmm) | Host L×W (mm) |
| XC10-99.9 | 10 | 0.6 | 15 | 15 | 1150×600 |
| XC20-99.9 | 20 | 1.2 | 25 | 15 | 1200×700 |
| XC40-99.9 | 40 | 2.3 | 25 | 20 | 1350×950 |
| XC60-99.9 | 60 | 3.5 | 32 | 25 | 2150×1100 |
| XC80-99.9 | 80 | 4.7 | 32 | 25 | 2250×1140 |
| XC100-99.9 | 100 | 5.8 | 40 | 32 | 2250×1140 |
| XC200-99.9 | 200 | 11.7 | 50 | 32 | 2750×1450 |
| XC300-99.9 | 300 | 17.5 | 50 | 40 | 3000×1650 |
| XC400-99.9 | 400 | 23.3 | 65 | 40 | 3100×1700 |
| XC600-99.9 | 600 | 35 | 65 | 50 | 3500×2150 |
| XC800-99.9 | 800 | 46.7 | 80 | 65 | 3500×2150 |
| XC1000-99.9 | 1000 | 58.3 | 125 | 80 | 3500×2150 |
| XC1500-99.9 | 1500 | 87.5 | 150 | 100 | 4400×3150 |
Product Specifications-Nitrogen purity :99.99%
| Model | Nitrogen production (Nm³/h) | Required compressed air volume (Nm³/min) | Inlet pipe size (DNmm) | Outlet pipe diameter (DNmm) | Host L×W (mm) |
| XC5-99.99 | 5 | 0.4 | 15 | 15 | 1150×600 |
| XC10-99.99 | 10 | 0.8 | 15 | 15 | 1150×600 |
| XC20-99.99 | 20 | 1.6 | 25 | 15 | 1260×880 |
| XC40-99.99 | 40 | 3.2 | 32 | 25 | 1750×1000 |
| XC80-99.99 | 80 | 6.4 | 40 | 32 | 2250×1140 |
| XC100-99.99 | 100 | 8 | 40 | 32 | 2500×1150 |
| XC200-99.99 | 200 | 16 | 65 | 50 | 2850×1550 |
| XC300-99.99 | 300 | 24 | 80 | 65 | 3100×1700 |
| XC400-99.99 | 400 | 32 | 100 | 65 | 3250×1820 |
| XC600-99.99 | 600 | 48 | 125 | 80 | 3500×2150 |
| XC800-99.99 | 800 | 64 | 150 | 100 | 3500×2150 |
| XC1000-99.99 | 1000 | 80 | 200 | 125 | 4400×3150 |
Product Specifications-Nitrogen purity :99.999%
| Model | Nitrogen production (Nm³/h) | Required compressed air volume (Nm³/min) | Inlet pipe size (DNmm) | Outlet pipe diameter (DNmm) | Host L×W (mm) |
| XC5-99.999 | 5 | 0.5 | 25 | 15 | 1150×600 |
| XC10-99.999 | 10 | 1 | 25 | 15 | 1250×880 |
| XC20-99.999 | 20 | 1.9 | 25 | 15 | 1750×1000 |
| XC30-99.999 | 30 | 2.9 | 40 | 25 | 2150×1100 |
| XC40-99.999 | 40 | 3.9 | 40 | 25 | 2250×1140 |
| XC60-99.999 | 60 | 5.8 | 40 | 32 | 2750×1450 |
| XC80-99.999 | 80 | 7.7 | 50 | 32 | 2750×1450 |
| XC100-99.999 | 100 | 9.7 | 50 | 40 | 2850×1550 |
| XC200-99.999 | 200 | 19.3 | 80 | 50 | 3250×1820 |
| XC300-99.999 | 300 | 29 | 100 | 65 | 3500×2150 |
