Machine Features:
Low Maintenance & High Reliability: No moving parts or molecular sieve regeneration; minimal maintenance and downtime.
Compact & Lightweight Design: No need for large air or nitrogen tanks; easy to move and install anywhere.
Flexible Capacity Expansion: Nitrogen output can be easily increased by adding membrane modules in parallel.
High Purity & Dry Nitrogen: Produces 90–99% clean nitrogen with a low dew point up to -60 °C.
Stable Operation in Harsh Conditions: Works reliably under various environmental and industrial settings.
Dual Gas Output: Provides nitrogen while simultaneously offering 28–40% oxygen as a byproduct.
Machine Working Principle:
Membrane separation for nitrogen production utilizes the selective permeation and diffusion characteristics of different gas components, allowing air to be physically separated through a thin membrane to obtain nitrogen.
Each gas has a different permeation rate: oxygen, carbon dioxide, water vapor, and other gases have a faster permeation rate, passing through the high-pressure inner fiber wall to the low-pressure outer wall and being discharged from one end of the membrane module.
Gases with slower permeation rates—such as nitrogen—remain and are enriched on the high-pressure side, then discharged from the other end of the membrane module, thereby achieving the separation of oxygen and nitrogen.

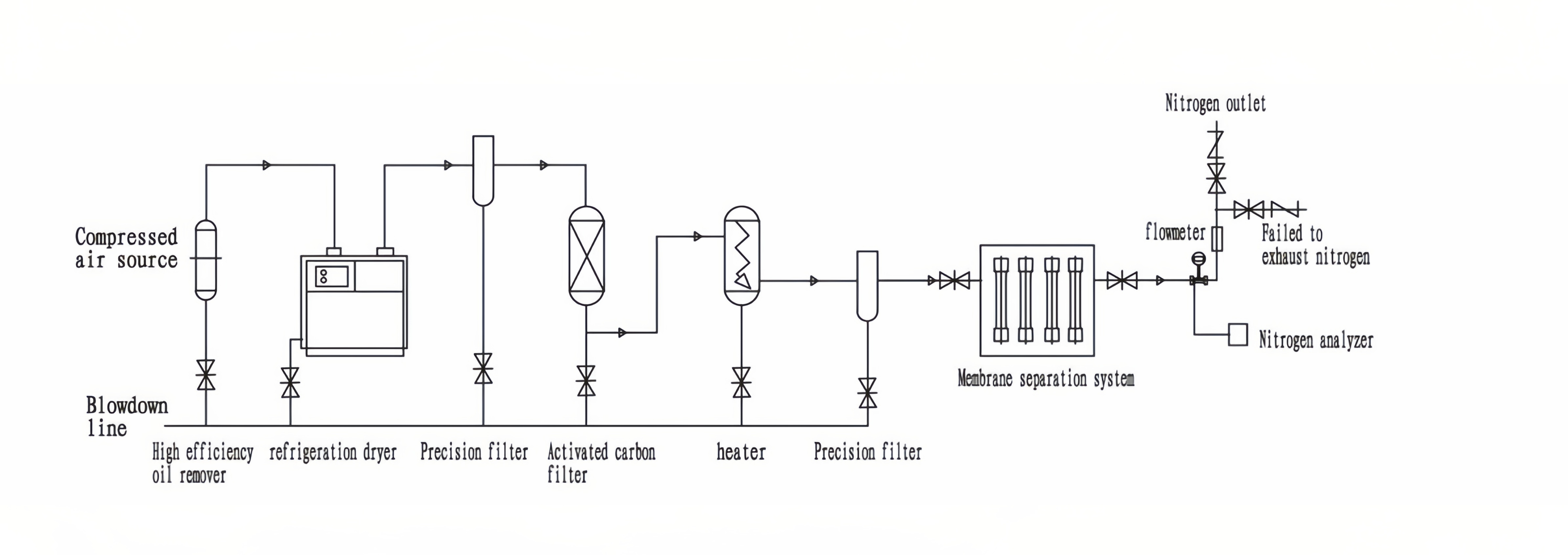

Machine Process Flow:
Technical Indicators：
Nitrogen Flow Rate: 1–5000 Nm³/h
Nitrogen Purity: 95–99.5% (non-oxygen content)
Nitrogen Pressure: 0.1–1.6 MPa (adjustable)
Nitrogen Dew Point: 0 to -60°C
Product Specifications:
| Model | Nitrogen Production (Nm3/h) | Required Compressed Air Volume (Nm3/min) | Inlet Pipe Size (DNmm) | Outlet Pipe Diameter (DNmm) | Air Purification System |
| XC50-95 | 50 | 2.1 | 32 | 25 | BA-3 |
| XC70-95 | 70 | 2.9 | 32 | 25 | BA-3 |
| XC100-95 | 100 | 4.2 | 40 | 25 | BA-6 |
| XC150-95 | 150 | 6.4 | 50 | 32 | BA-10 |
| XC200-95 | 200 | 8.5 | 50 | 40 | BA-12 |
| XC400-95 | 400 | 17 | 65 | 50 | BA-20 |
| XC500-95 | 500 | 20 | 65 | 50 | BA-25 |
| XC600-95 | 600 | 25 | 80 | 50 | BA-40 |
| XC800-95 | 800 | 33 | 100 | 65 | BA-40 |
| XC1000-95 | 1000 | 41 | 100 | 65 | BA-50 |
| XC1200-95 | 1200 | 49 | 100 | 65 | BA-50 |
| XC1500-95 | 1500 | 61 | 125 | 80 | BA-80 |
| XC2000-95 | 2000 | 82 | 150 | 100 | BA-100 |
