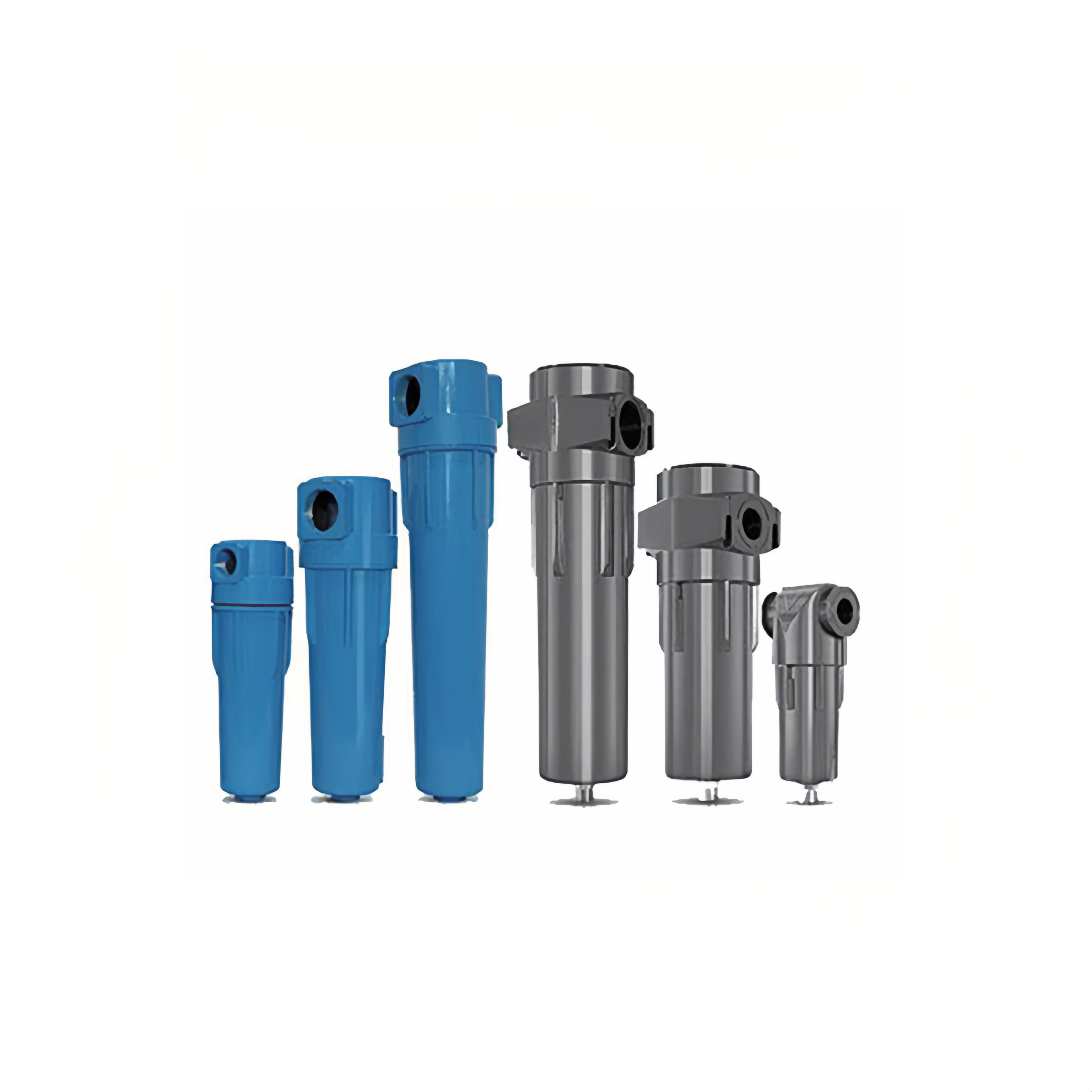

Machine Features:
High Performance Under Pressure:
Maximum working pressure up to 1.0 MPa, ensuring stable performance under industrial operating conditions.
Wide Temperature Range:
Standard filter elements operate up to 66°C, while C-grade elements can withstand up to 80°C.
Five-Stage Filtration Design:
Available grades — C (Pre-filter), T (Coalescing filter), A (Fine filter), AA (Ultra-fine filter), and H (Activated carbon filter) — effectively remove oil, dust, and water.
Smart Function Options:
Optional D (automatic drainer), P/C (pressure differential indicator), and L (liquid level indicator) for real-time system monitoring.
Flexible Customization:
Models cover flow capacities from 0.7 to 300 Nm³/min; custom sizes and large-flow filters are available upon request.
Durable and Compact Structure:
Corrosion-resistant aluminum alloy housing with a space-saving design, ideal for both standalone and integrated system use.
Machine Working Principle:
Maximum working pressure: 1.0MPa
The maximum operating temperature of the filter element is 66°C(The maximum operating temperature of C-grade filter elementcan reach 80°C)
Grade: Represents five levels: C, T, A, AA, H.
Function: D-automatic drainer, P-pressure differential indicatorC-pressure differential indicator, L-liquid level indicator can beselected (only for the treatment capacity below 10Nm³) .
Please contact Xinchen Company for filters with larger flow ratesor special specifications.
Product Specifications:
| Model | Processing Flow (Nm³/min, 0.7MPa) | Connection Size | Height (mm) | Width (mm) | Element Model No. | Qty | Weight (kg) |
| XC-(Grade)001/2(Function) | 0.7 | G1/2” | 160 | 105 | E(Grade)-12 | 1 | 1.2 |
| XC-(Grade)001(Function) | 1.2 | G1/2” | 210 | 105 | E(Grade)-16 | 1 | 2.5 |
| XC-(Grade)002(Function) | 2.4 | G1/2” | 275 | 105 | E(Grade)-20 | 1 | 3.2 |
| XC-(Grade)004(Function) | 3.8 | G1” | 295 | 133 | E(Grade)-24 | 1 | 5.4 |
| XC-(Grade)005(Function) | 5 | G1” | 420 | 133 | E(Grade)-28 | 1 | 7.8 |
| XC-(Grade)007(Function) | 7 | G1-1/2” | 510 | 164 | E(Grade)-32 | 1 | 7.8 |
| XC-(Grade)010(Function) | 11 | G1-1/2” | 625 | 164 | E(Grade)-36 | 1 | 8.6 |
| XC-(Grade)013(Function) | 14 | G2” | 730 | 194 | E(Grade)-40 | 1 | 13.8 |
| XC-(Grade)013(Function) | 14 | DN50/DN80 | 1008 | 369 | E(Grade)-40 | 1 | 46 |
| XC-(Grade)018(Function) | 18 | G2” | 875 | 194 | E(Grade)-44 | 1 | 14.7 |
| XC-(Grade)018(Function) | 18 | DN50/DN80 | 1103 | 369 | E(Grade)-44 | 1 | 51 |
| XC-(Grade)022(Function) | 22 | G2” | 1030 | 164 | E(Grade)-48 | 1 | 13.5 |
| XC-(Grade)022(Function) | 22 | DN50/DN80 | 1225 | 360 | E(Grade)-48 | 1 | 54 |
| XC-(Grade)026(Function) | 26 | DN80 | 1325 | 409 | E(Grade)-40 | 2 | 75 |
| XC-(Grade)035(Function) | 35 | DN80 | 1325 | 409 | E(Grade)-44 | 2 | 81 |
| XC-(Grade)045(Function) | 45 | DN100 | 1325 | 409 | E(Grade)-48 | 2 | 81 |
| XC-(Grade)054(Function) | 54 | DN125 | 1362 | 520 | E(Grade)-44 | 3 | 118 |
| XC-(Grade)066(Function) | 66 | DN125 | 1362 | 520 | E(Grade)-48 | 3 | 118 |
| XC-(Grade)088(Function) | 88 | DN125 | 1530 | 545 | E(Grade)-48 | 4 | 153 |
| XC-(Grade)110(Function) | 110 | DN150 | 1428 | 632 | E(Grade)-48 | 5 | 158 |
| XC-(Grade)132(Function) | 132 | DN150 | 1752 | 728 | E(Grade)-48 | 6 | 162 |
| XC-(Grade)154(Function) | 154 | DN200 | 1752 | 750 | E(Grade)-48 | 7 | 273 |
| XC-(Grade)200(Function) | 200 | DN200 | 1752 | 800 | E(Grade)-48 | 10 | 300 |
| XC-(Grade)220(Function) | 225 | DN200 | 1752 | 800 | E(Grade)-48 | 11 | 310 |
| XC-(Grade)250(Function) | 250 | DN250 | 1850 | 900 | E(Grade)-44 | 14 | 370 |
| XC-(Grade)300(Function) | 300 | DN250 | 2200 | 900 | E(Grade)-48 | 14 | 420 |
