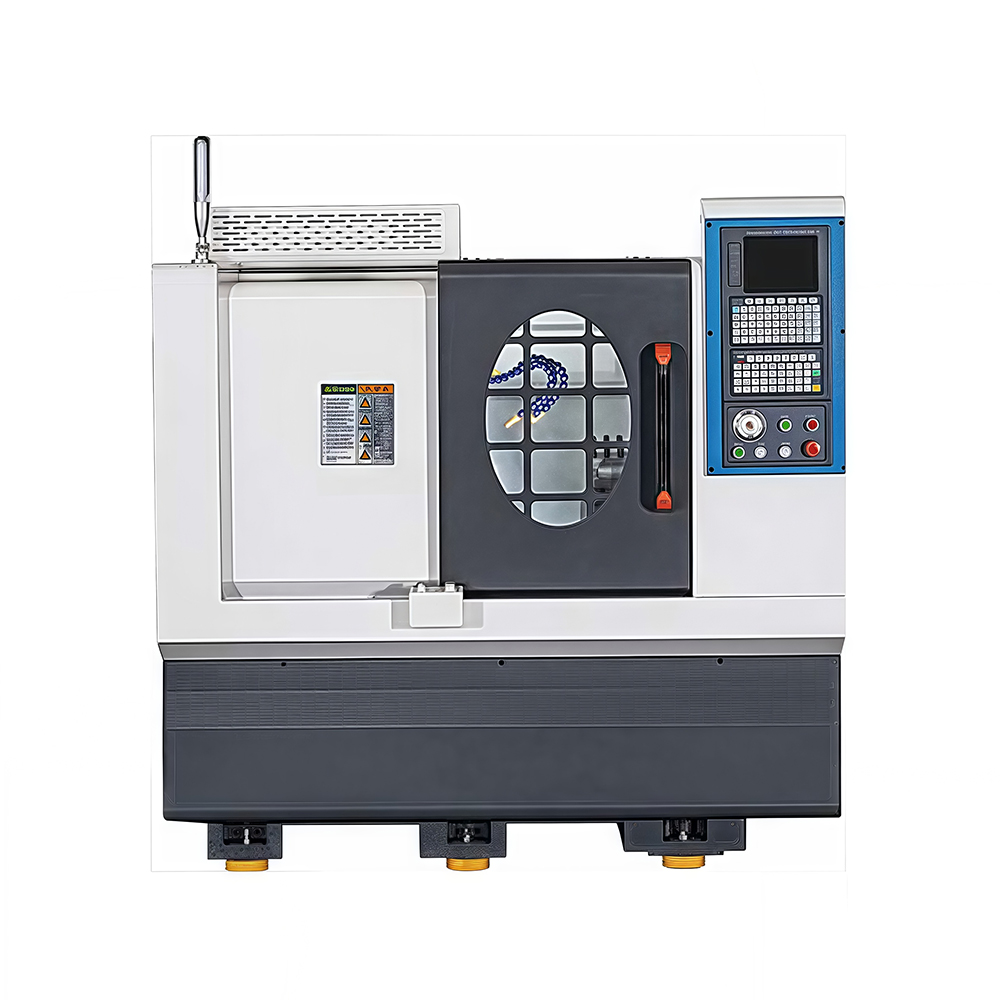

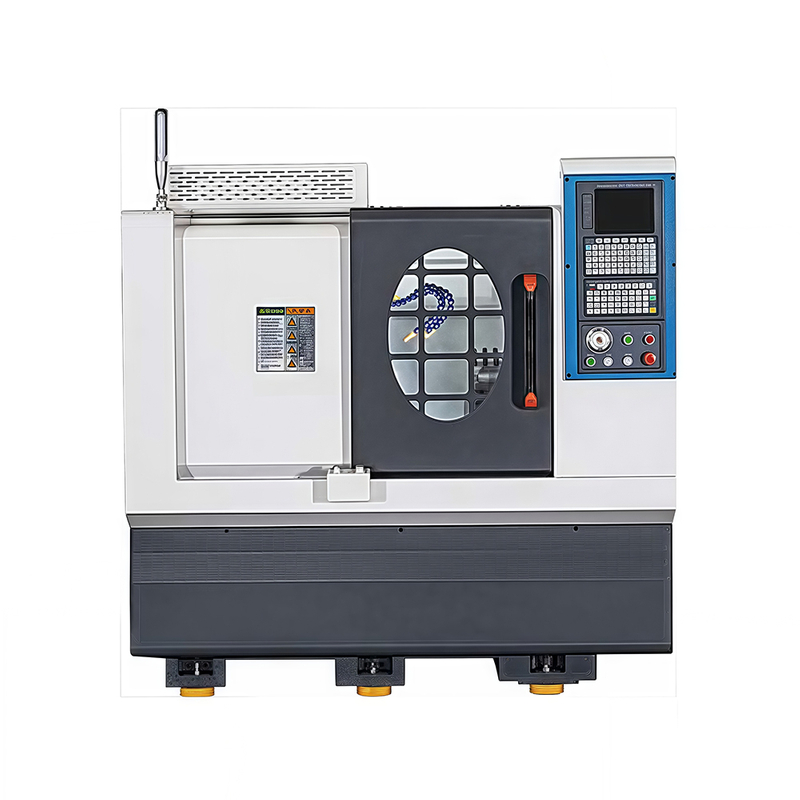

CK-40 CNC turning center front view with cast iron bed and gang tool system for precision small parts machining
CK-40 CNC turning center front view with cast iron bed and gang tool system for precision small parts machining CK-40 CNC turning center front view with cast iron bed and gang tool system for precision small parts machining

loading

MH CK-40 CNC Turning Center

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The CK-40 CNC Turning Center adopts a high-strength cast iron bed structure, offering excellent stability and rigidity. With precision linear guideways and a gang tool system, it is ideal for efficient, high-precision batch machining of small components, especially suitable for small shaft and disc parts in industries such as 3C electronics and automotive.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:


1: Using high-strength cast iron bed base structure, with high stability and rigidity;

2: Adopting linear guide, better guiding and rigidity, high precision can be achieved;

3: Gang tool structure with multiple tool positions, fast tool change, and strong rigidity, suitable for efficient machining of small components.


Technical Parameter


Specification ParameterCK-40
Max.swing Diameter Overbe (mm)Φ360
Max.swing Over Carriage (mm)Φ156
Maximmal Tip Distance (mm)/
Max.swing Travel (mm)X:300 Z:300
Rapid Speed Of Vertical (m/min)X:20 Z:24
Spindle Bore Dia (mm)Φ47
Main Motor Power (kw)3
Spindle Speeds Range (r/min)3000
Cross Sectin Size Of Cutter Holder (mm)20x20
Tail Seat Thimble Route Or Distance Of Travel (mm)/
Thimble lnner Hole Taper (mt)/
Chuck Specification (mm)6inch /A2-5
Positioning Accuracy (mm)X:0.005, Z:0.01
Lmpulse Equivalent(mm)X:0.0005, Z:0.001
Axis Contyolled2 axes (X/Y + Spindle + Turret)
Drive Type1.2
ProgramingISO standard codes
Electric Motor Cooling Dow (w)120
Lubricating Row Amount And Time(mt)2-6ml, 15min/time
Net Weight (kg)1300
Overall Dimension (mm)1630x1230x1480
