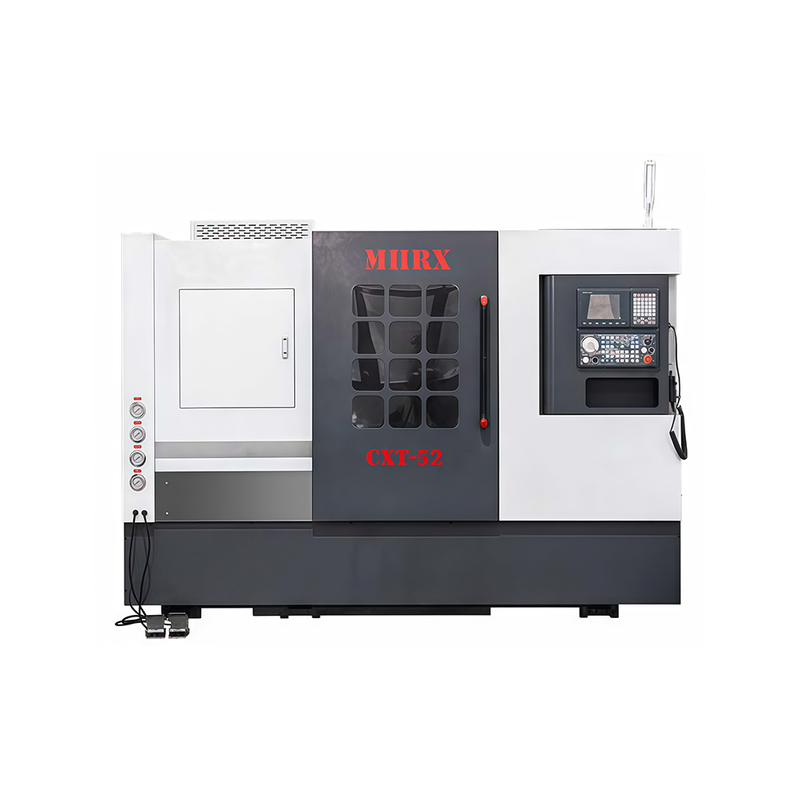

MH CXT-52 CNC Turning Center
MH CXT-52 CNC Turning Center MH CXT-52 CNC Turning Center

loading

MH CXT-52 CNC Turning Center

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The CXT-52 CNC Turning Center adopts a 45° high-strength cast iron slant-bed structure, providing excellent rigidity and stability. It is ideal for efficient batch turning of small to medium precision parts. Equipped with a high-power motor spindle, rigid roller guideways, and mountain rib tailstock design, it significantly enhances machining accuracy and consistency. Widely used in automotive parts, electronics, and machinery industries.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: 45° high-strength integrated slant bed casting, novel appearance, user-friendly panel, fully enclosed protection

2: Spindle unit with dynamic balance for enhanced rotation accuracy and better part quality

3: Linear roller guideways enable heavy cutting and improve machining accuracy

4: Tailstock with mountain rib positioning ensures runout, roundness, and cylindricity precision


Technical Parameter

Specification ParameterCXT-52
Max.swing Diameter Overbe (mm)Φ600
Max.swing Over Carriage (mm)Φ500
Maximmal Tip Distance (mm)670
Max.swing Travel (mm)X:250, Z:500, Y:±50
Rapid Speed Of Vertical (m/min)X:20, Z:24
Spindle Bore Dia (mm)Φ66
Main Motor Power (kw)11
Spindle Speeds Range (r/min)4200
Cross Sectin Size Of Cutter Holder (mm)25×25 / BMT55
Tail Seat Thimble Route Or Distance Of Travel (mm)100
Thimble lnner Hole Taper (mt)Morse No.5
Chuck Specification (mm)8 inch / A2-6
Positioning Accuracy (mm)X:0.005, Z:0.01
Lmpulse Equivalent(mm)X:0.0005, Z:0.001
Axis Contyolled5 axes (X/Y/Z + Spindle + Turret)
Drive Type2.4
ProgramingISO standard codes
Electric Motor Cooling Dow (w)High Pressure
Lubricating Row Amount And Time(mt)2-6ml, 15min/time
Net Weight (kg)4800
Overall Dimension (mm)2840×1800×1980
