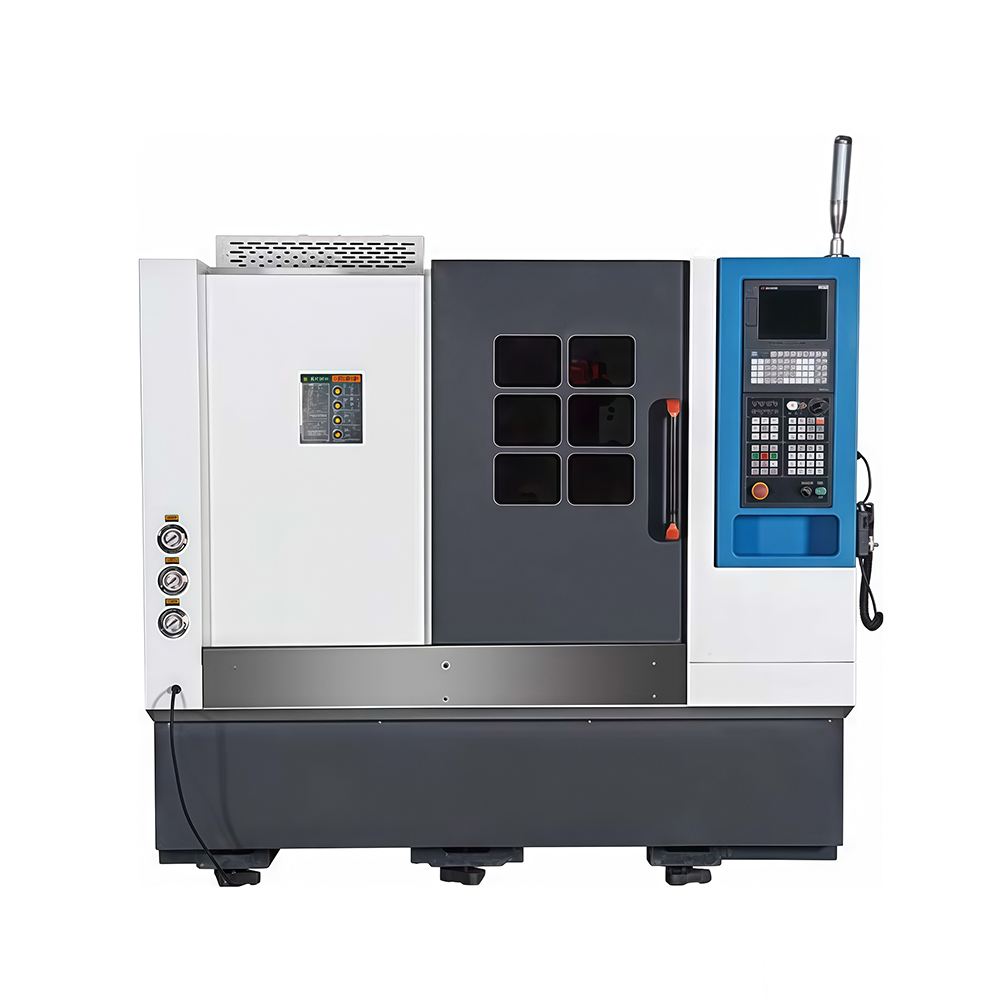

CXT-46 CNC vertical turning and milling center front view with slant-bed design for precision machining

MH CXT-46 CNC Turning Center

The CXT-46 CNC Turning & Milling Center features a 30° high-strength cast iron slant-bed structure, providing excellent rigidity and precision. Integrating turning and milling capabilities, it is ideal for efficient mass production of small to medium-sized complex components. Equipped with C-axis indexing and power turret, it offers enhanced machining flexibility and automation, widely used in automotive, electronics, and medical industries.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Using high-strength cast iron 30-degree inclined bed base structure, novel appearance design, humanized operation panel, semi-enclosed protection;

2: The main shaft adopts the spindle unit and undergoes dynamic balance treatment to increase spindle speed and improve surface roughness of the processed parts;

3: The guideway adopts linear guide rail, which ensures high machining precision;

4: Precise C-axis indexing, the power head supports both turning and milling operations;

5: The 12-station lifting power turret better meets automation requirements for the machine tool.

Technical Parameter

Specification Parameter	CXT-46
Max.swing Diameter Overbe (mm)	Φ520
Max.swing Over Carriage (mm)	Φ330
Maximmal Tip Distance (mm)	/
Max.swing Travel (mm)	X:300 Z:400 Y:±35
Rapid Speed Of Vertical (m/min)	X:20 Z:24
Spindle Bore Dia (mm)	Φ56
Main Motor Power (kw)	5.5
Spindle Speeds Range (r/min)	5000
Cross Sectin Size Of Cutter Holder (mm)	20x20/BMT40
Tail Seat Thimble Route Or Distance Of Travel (mm)	/
Thimble lnner Hole Taper (mt)	/
Chuck Specification (mm)	6寸 /A2-5
Positioning Accuracy (mm)	X:0.005, Z:0.01
Lmpulse Equivalent(mm)	X:0.0005, Z:0.001
Axis Contyolled	5 axes (X/Y + Spindle + Turret)
Drive Type	1.7
Programing	ISO standard codes
Electric Motor Cooling Dow (w)	High Pressure
Lubricating Row Amount And Time(mt)	2-6ml, 15min/time
Net Weight (kg)	3100
Overall Dimension (mm)	2200x1700x1840

cnc turning center machine lathe turning center vertical turning center
