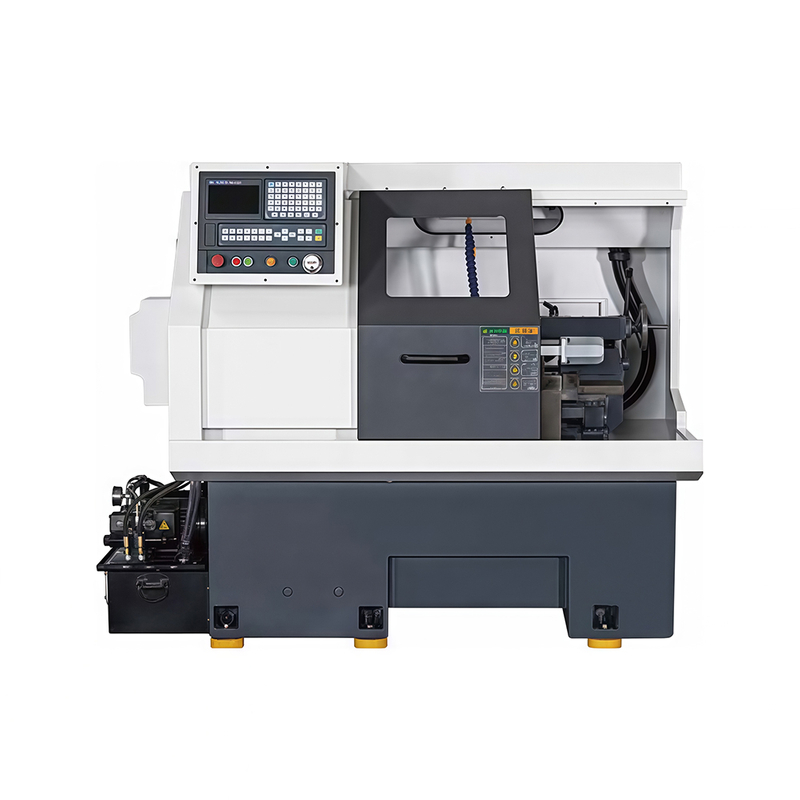

MH CNC-6130A CNC Turning Center
MH CNC-6130A CNC Turning Center MH CNC-6130A CNC Turning Center

loading

MH CNC-6130A CNC Turning Center

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The CNC-6130A CNC Turning Center adopts a high-strength cast iron bed structure with high-frequency hardened guideways, providing excellent rigidity and wear resistance. It is ideal for efficient and stable machining of non-ferrous and ferrous metals, widely used for mass production of small components in electronics, automotive, and machinery industries, ensuring long-term machining accuracy and stability.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: Using high-strength cast iron bed structure, the guide rail is high-frequency quenching treated for high precision and long service life;

2: Excellent performance in the processing of non-ferrous and ferrous metals;

3: High positioning accuracy, reasonable layout, reliable and stable performance.


Technical Parameter

Specification ParameterCNC-6130
Max.swing Diameter Overbe (mm)Φ320
Max.swing Over Carriage (mm)Φ156
Maximmal Tip Distance (mm)400
Max.swing Travel (mm)X:2400 Z:400
Rapid Speed Of Vertical (m/min)X:6 Z:7
Spindle Bore Dia (mm)Φ47
Main Motor Power (kw)3
Spindle Speeds Range (r/min)3000
Cross Sectin Size Of Cutter Holder (mm)20x20
Tail Seat Thimble Route Or Distance Of Travel (mm)X:6 Z:7
Thimble lnner Hole Taper (mt)Morse 4#
Chuck Specification (mm)6寸 /A2-5
Positioning Accuracy (mm)X:0.005, Z:0.01
Lmpulse Equivalent(mm)X:0.0005, Z:0.001
Axis Contyolled2 axes (X/Y + Spindle + Turret)
Drive Type1.2
ProgramingISO standard codes
Electric Motor Cooling Dow (w)120
Lubricating Row Amount And Time(mt)2-6ml, 15min/time
Net Weight (kg)1100
Overall Dimension (mm)1645x1100x1560
