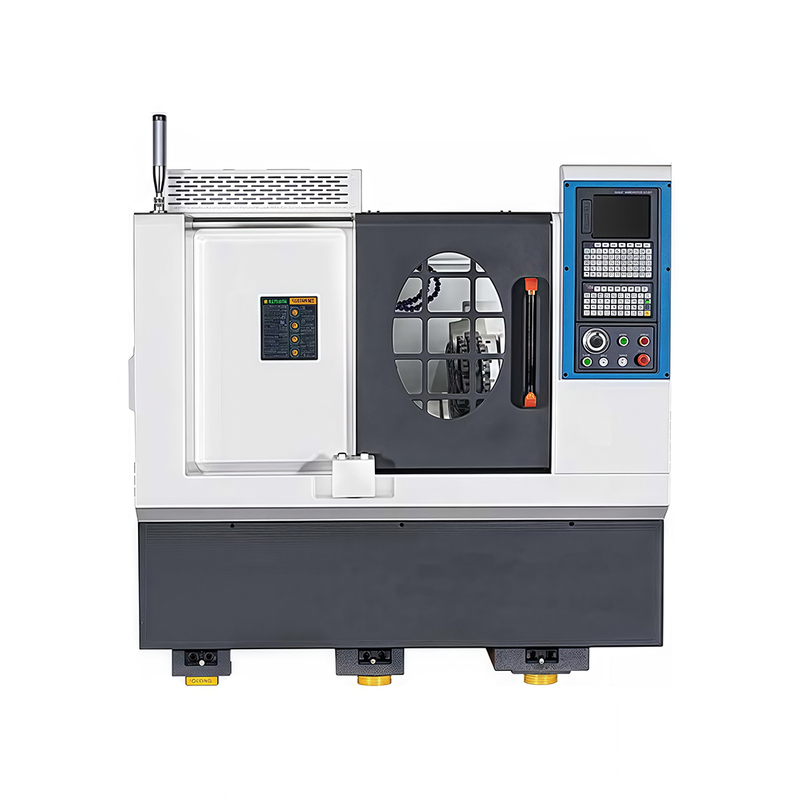

MH TK-36 CNC Turning Center

The TK-36 CNC Turning Center adopts a 30° high-strength cast iron slant-bed structure with a rigid gang-type tooling system, offering excellent performance in speed and precision. It is ideal for efficient mass production of small components, widely used in 3C electronics, automotive, and medical industries.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Using high-strength cast iron 30-degree inclined bed base structure, novel appearance design, humanized operation panel, semi-enclosed protection;

2: The main shaft adopts the spindle unit and undergoes dynamic balancing treatment to increase spindle speed and improve the surface roughness of processed parts;

3: Adopts linear guide rail to achieve high machining precision;

4: Gang tool structure with multiple tool positions, fast tool change, and strong rigidity, suitable for efficient machining of small components.

Technical Parameter

Specification Parameter	TK-36
Max.swing Diameter Overbe (mm)	Φ360
Max.swing Over Carriage (mm)	Φ156
Maximmal Tip Distance (mm)	/
Max.swing Travel (mm)	X:300 Z:300
Rapid Speed Of Vertical (m/min)	X:20 Z:24
Spindle Bore Dia (mm)	Φ47
Main Motor Power (kw)	3
Spindle Speeds Range (r/min)	3000
Cross Sectin Size Of Cutter Holder (mm)	20x20
Tail Seat Thimble Route Or Distance Of Travel (mm)	/
Thimble lnner Hole Taper (mt)	/
Chuck Specification (mm)	6寸 /A2-5
Positioning Accuracy (mm)	X:0.005, Z:0.01
Lmpulse Equivalent(mm)	X:0.0005, Z:0.001
Axis Contyolled	2 axes (X/Y + Spindle + Turret)
Drive Type	1.7
Programing	ISO standard codes
Electric Motor Cooling Dow (w)	120
Lubricating Row Amount And Time(mt)	2-6ml, 15min/time
Net Weight (kg)	1600
Overall Dimension (mm)	1760x1340x1680
